Pyxus HD Move Setup Manual

Welcome to the step-by-step assembly guide for the Pyxus HD Move. Whether you prefer step-by-step instructions or a video demonstration, this guide will walk you through the assembly process.

Before you begin, take a moment to review the package's contents and acquaint yourself with the included components. The following content has been crafted to provide you with all the insights required to transform individual parts into a functional and invaluable tool for honing your surgical skills.

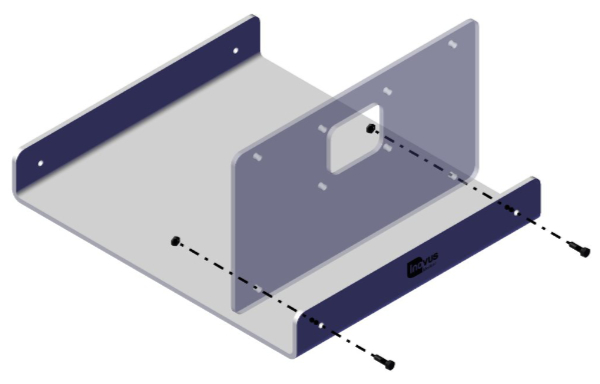

Step 1

Begin the assembly by taking out parts 00000917 and 00000328. Using 2 x 00000640 bolts and 2 x 00001159 nuts, screw the 00000328 panel into position as shown.

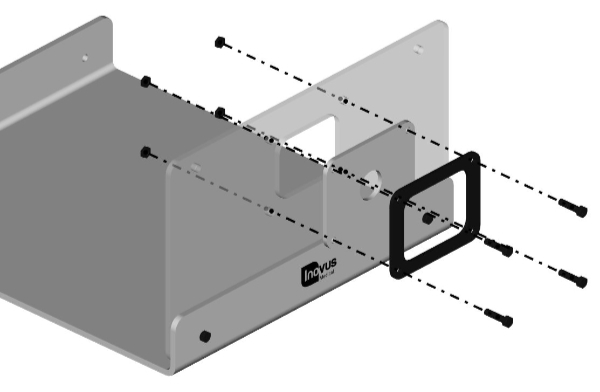

Step 2

You will now need the following parts:

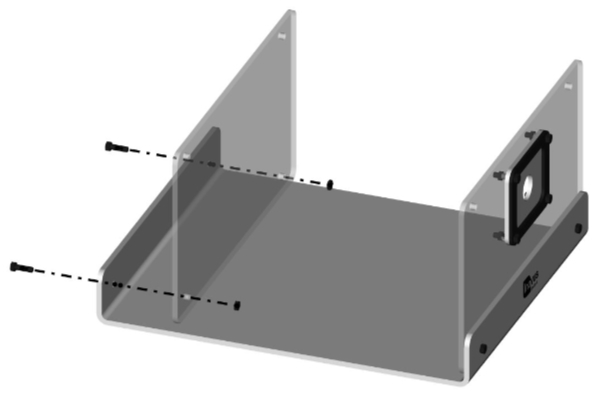

Step 3

Using 2 x 00000640 bolts and 2 x 00001159 nuts, secure the rear panel 00001457.

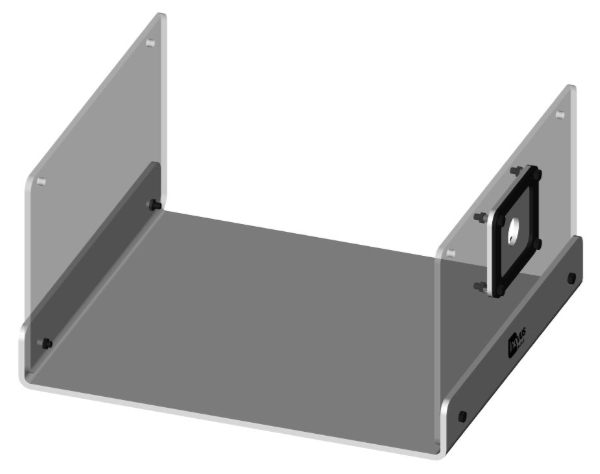

Step 4

Your simulator should now look like this, with both upright panels securely in position.

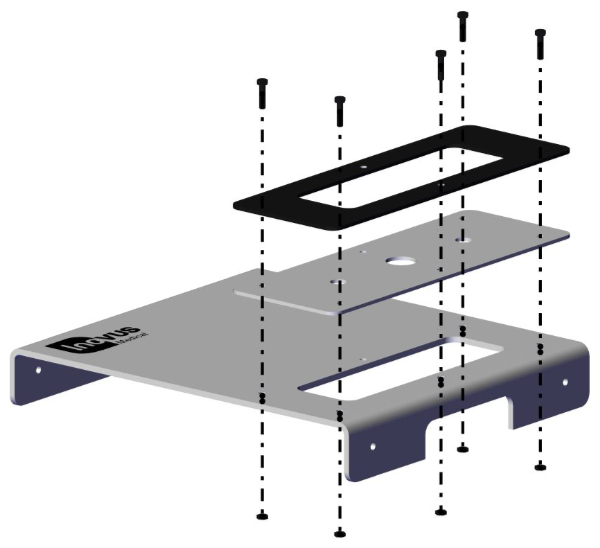

Step 5

You may now start the top panel sub-assembly. Taking 00001201, 00000170 and 00000171, secure as shown using 5 x 00000640 bolts and 5 x 00001159 nuts.

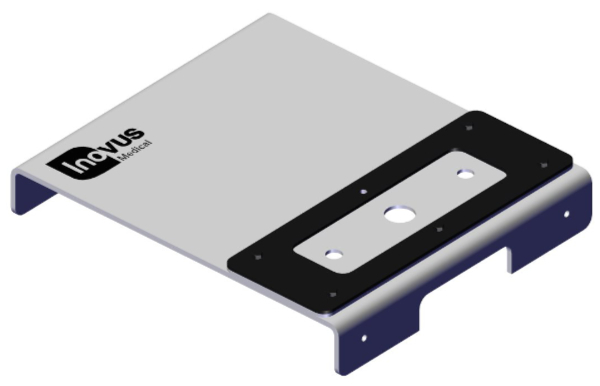

Step 6

You have now completed the top panel sub-assembly.

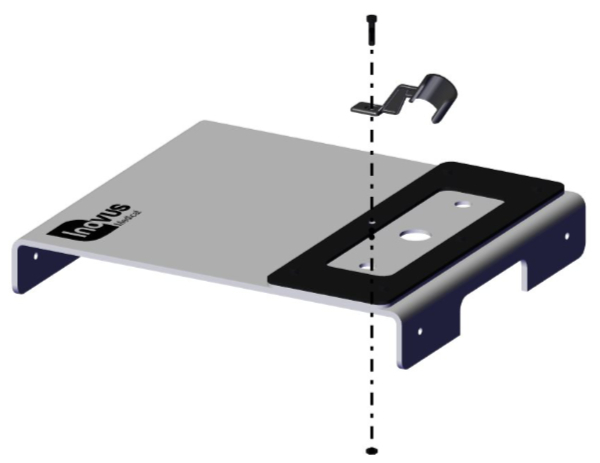

Step 7

Use the remaining 00000640 bolt and 1 x 00001159 nut to position the camera bracket (00000338).

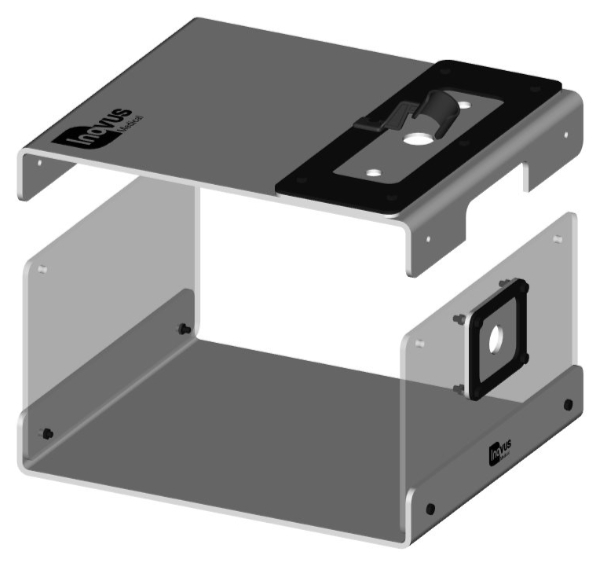

Step 8

Having already completed the top panel sub-assembly, you may now position it over the pre-assembled base unit.

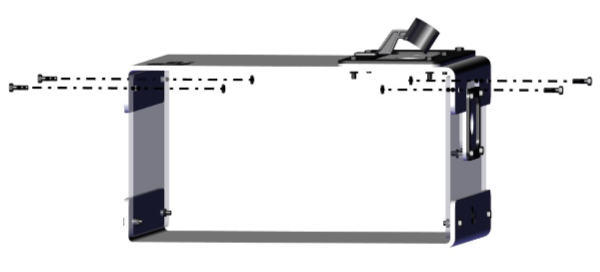

Step 9

Using 2 x 00000640 bolts & 2 x 00001159 nuts, secure it to the upright panels.

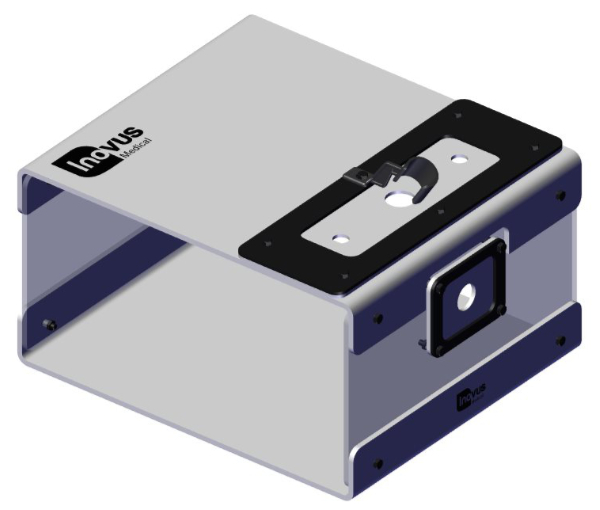

Step 10

Your simulator should now look like this and be structurally sound.

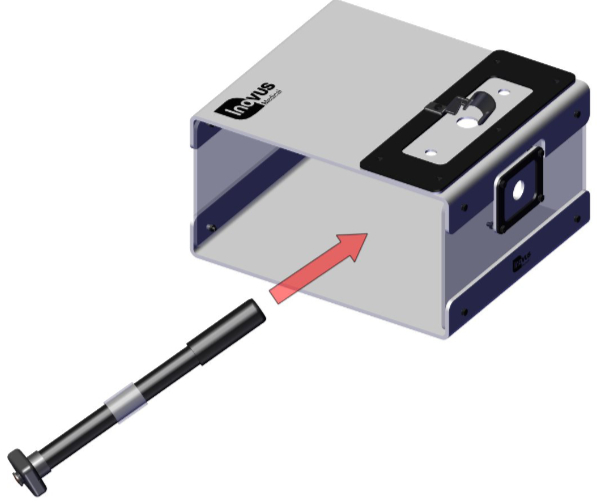

Step 11

You may now position the scope to begin training. The scope must be placed backwards through the ports, as illustrated. Positioning the scope in this way reduces the risk of skin tearing.

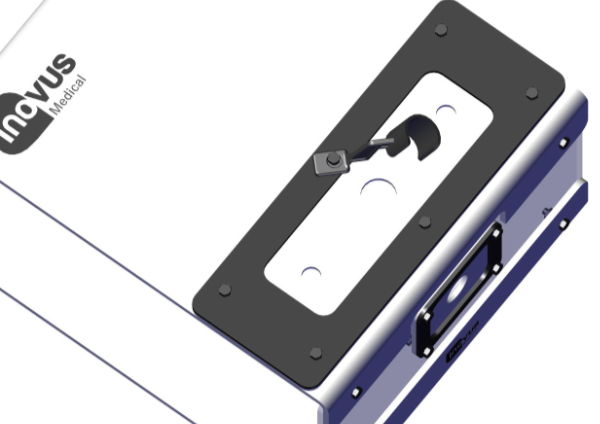

Step 12

You may wish to rotate the camera bracket to one side so that the scope has room to slide into position.

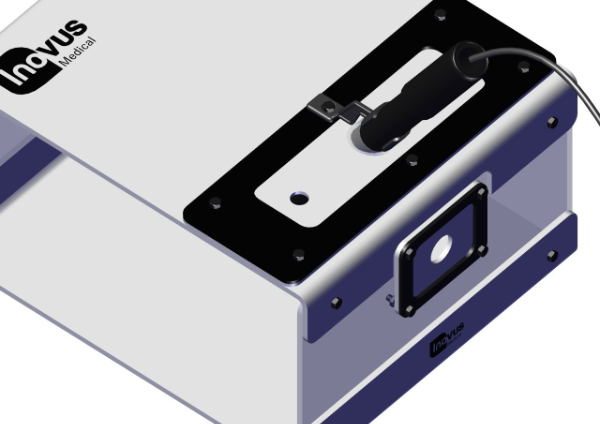

Step 13

You may now rotate the camera bracket back into position to hold the scope in place.

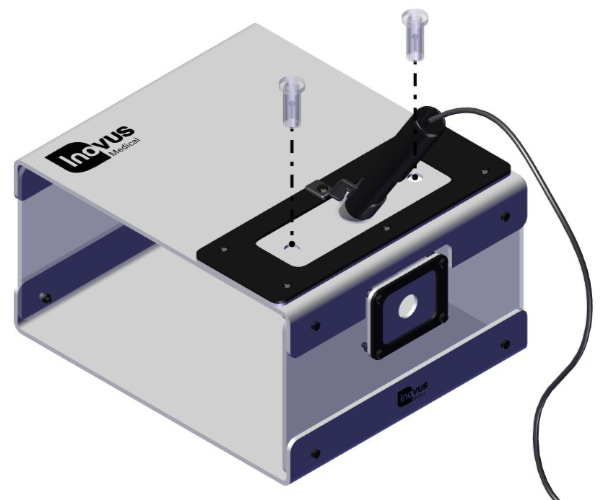

Step 14

Insert the two trocars provided into the openings in the SK04 skin. Using the trocars will reduce the likelihood of the skin tearing.

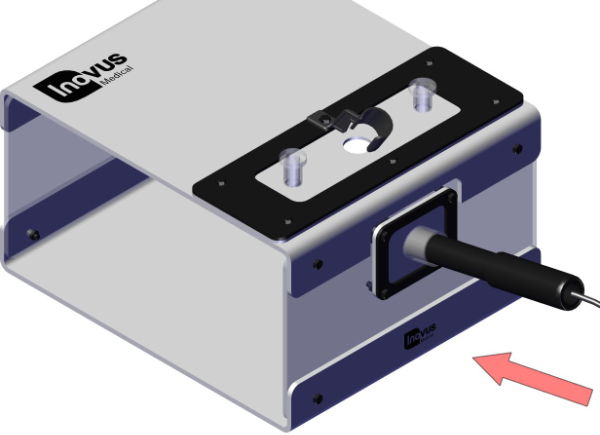

Step 15

Please note that the scope may be placed in the front port also.

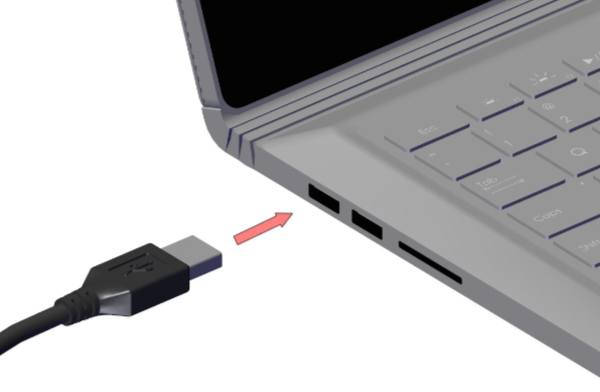

Step 16

Connect the USB cable provided to your laptop or PC. (Laptop not included)

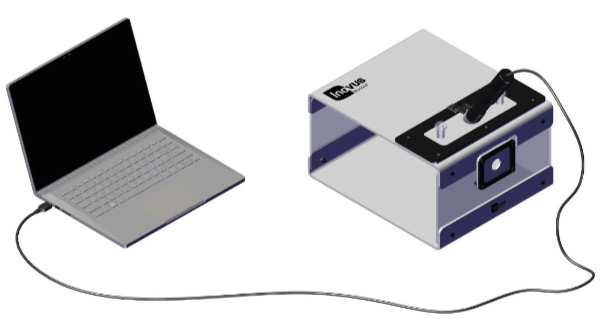

Step 17

The setup should now look similar to this image.
