Pyxus Pro Move Setup Manual

Welcome to the step-by-step assembly guide for the Pyxus Pro Move. Whether you prefer step by step instructions or a video demonstration, this guide will walk you through the assembly process.

Before you begin, take a moment to review the package's contents and acquaint yourself with the included components. The following content has been crafted to provide you with all the insights required to transform individual parts into a functional and invaluable tool for honing your surgical skills.

Step 1

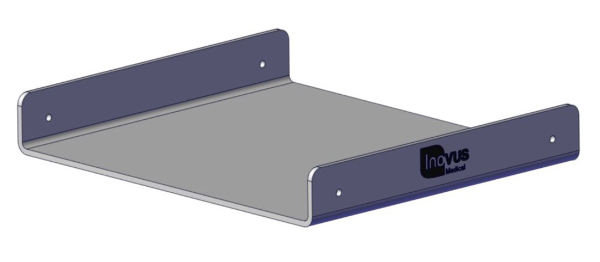

Begin the assembly by isolating the base panel 00001201

Step 2

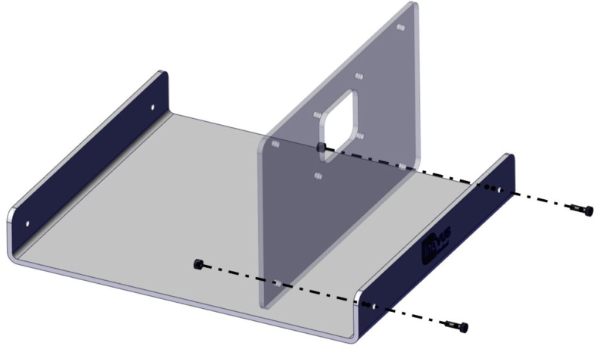

Using 2 x 00000640 bolts and 2 x 00001159 nuts, screw the front panel 00000328 into position as shown.

Step 3

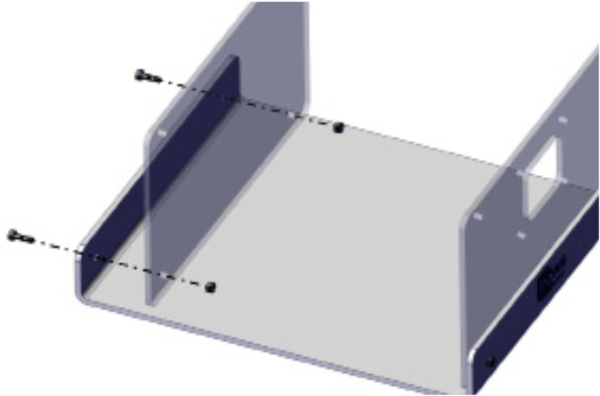

Repeat Step 2 for the rear panel00001457, using a further 2 x 00000640 and 2 x 00001159 nuts.

Step 4

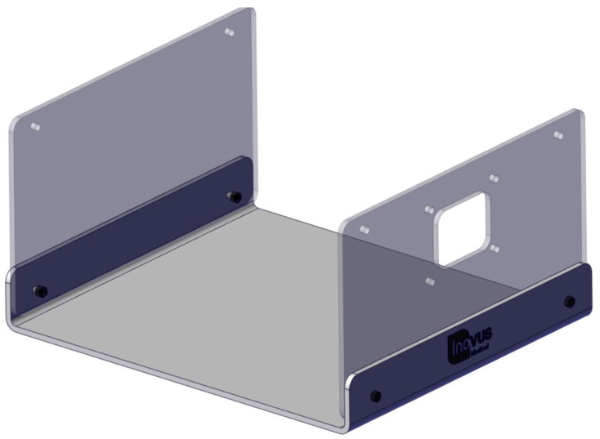

Your simulator should now look like this, with both upright panels securely in position.

Step 5

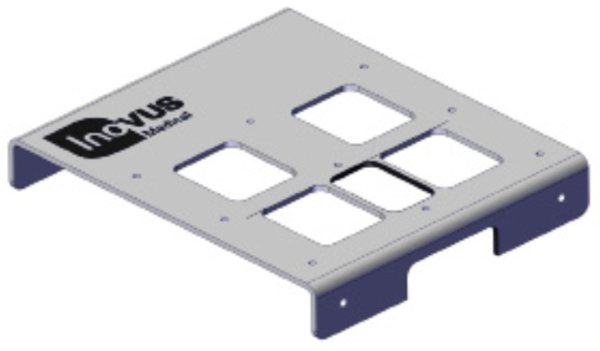

Isolate the top panel 00001214.

Step 6

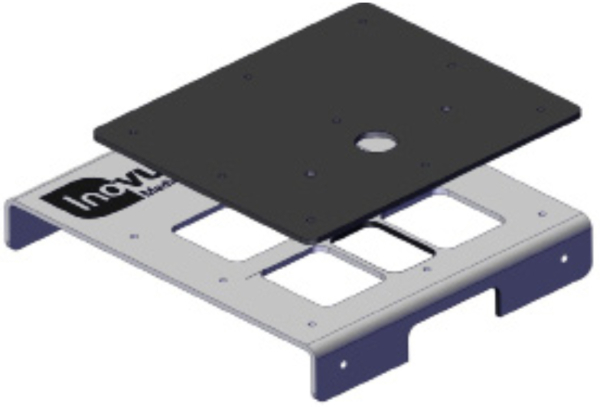

Place the skin 00000995 over the top panel 00001214 as shown, ensuring the bolt holes in the skin are aligned with those on the panel.

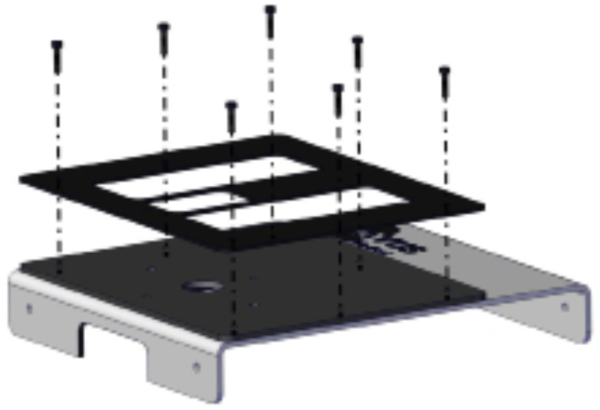

Step 7

Take the bracket 00000996 and place it over the skin 00000995.

Step 8

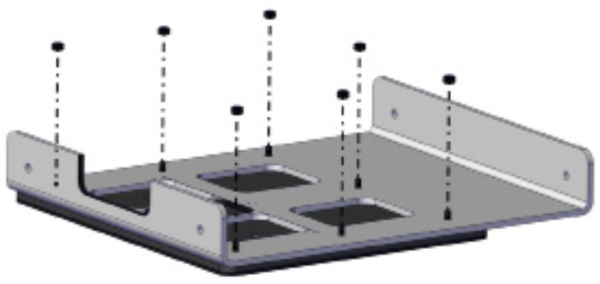

Using 7 x 00001159 nuts, secure 00000996 and 00000995 to 00000996 by tightening from the underside.

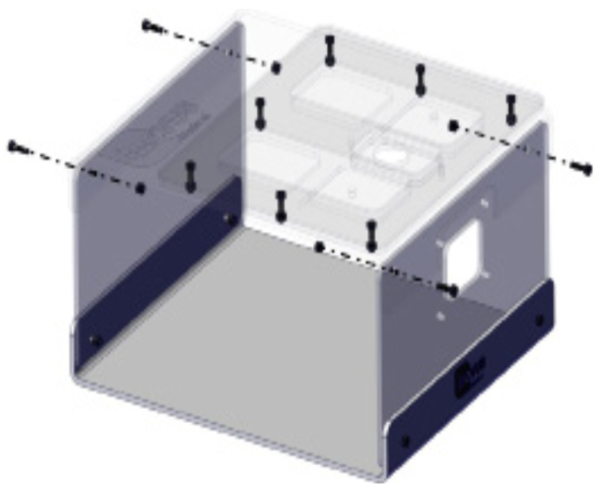

Step 9

Place the assembled top panel over the upright panels.

Step 10

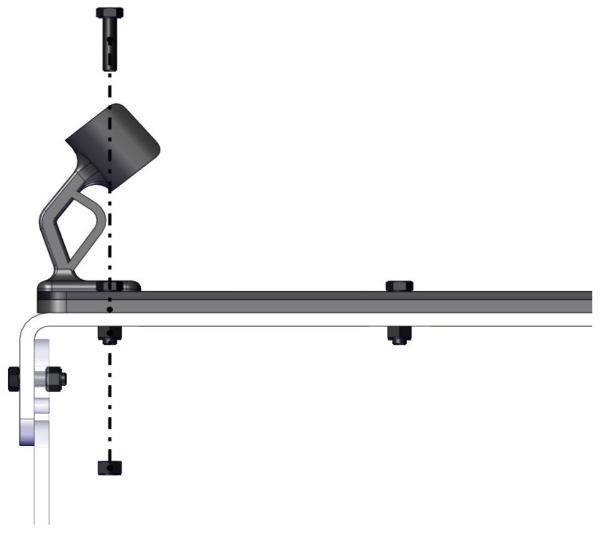

You may now take the scope bracket (00000986).

Step 11

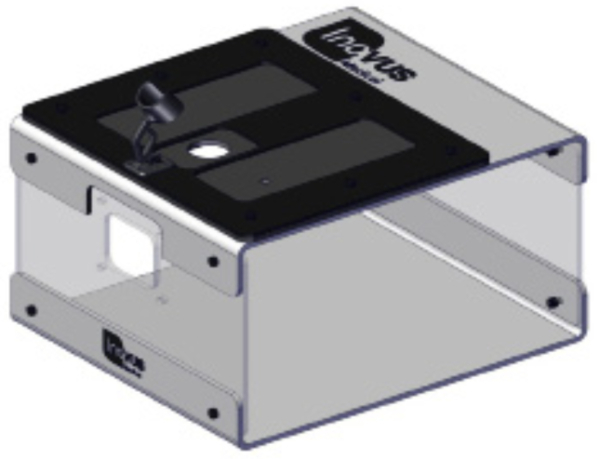

Your simulator should now look like this.

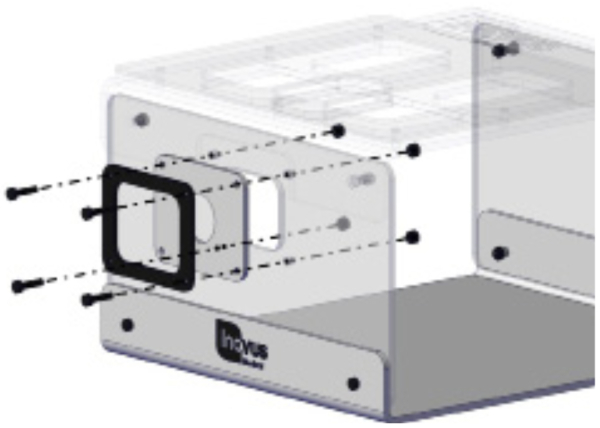

Step 12

You will now need the following parts:

Step 13

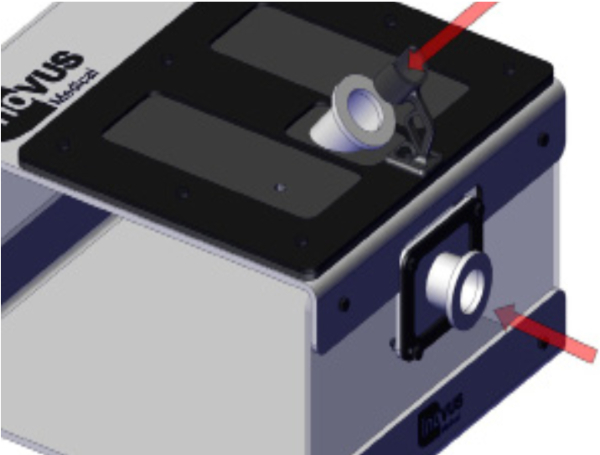

Place the trocar into a port of your choosing.

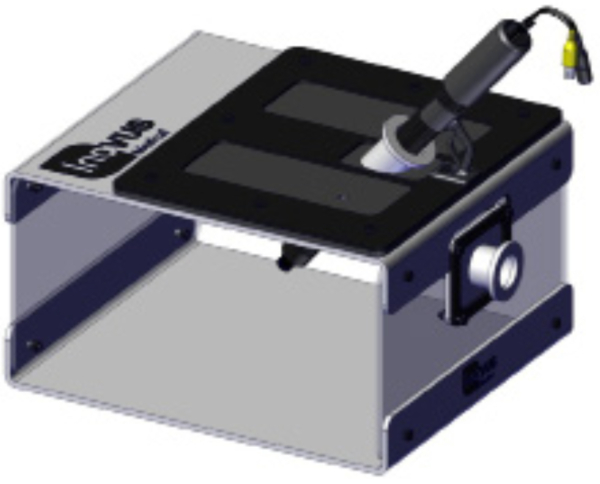

Step 14

Should you place the scope into the top port, you may anchor it in position by placing it into the cradle of the scope bracket. This is particularly useful for solo training.

Step 15

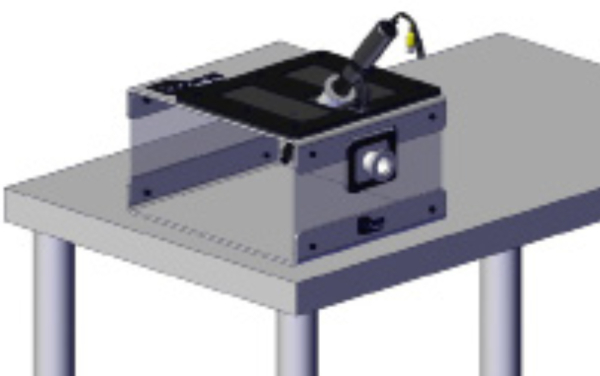

You are now ready to progress to Step 16 to begin setting up the monitor bracket.

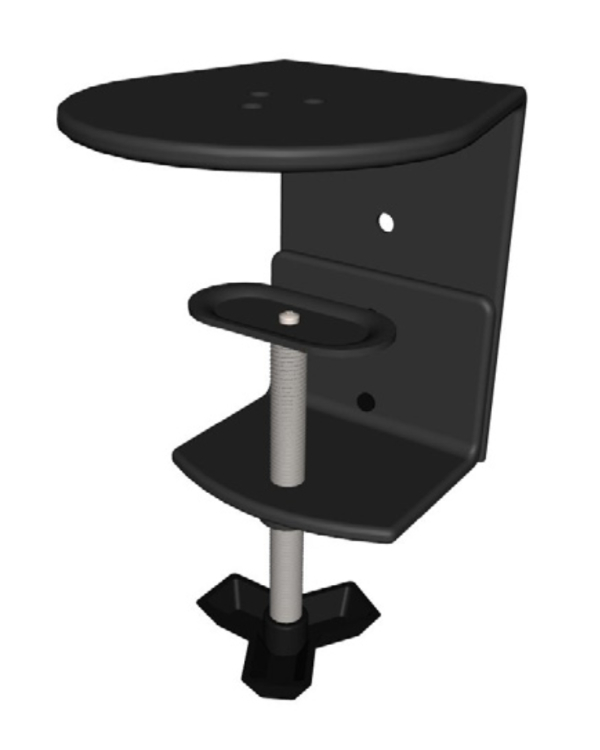

Step 16

Begin by removing the C-clamp from the package.

Step 17

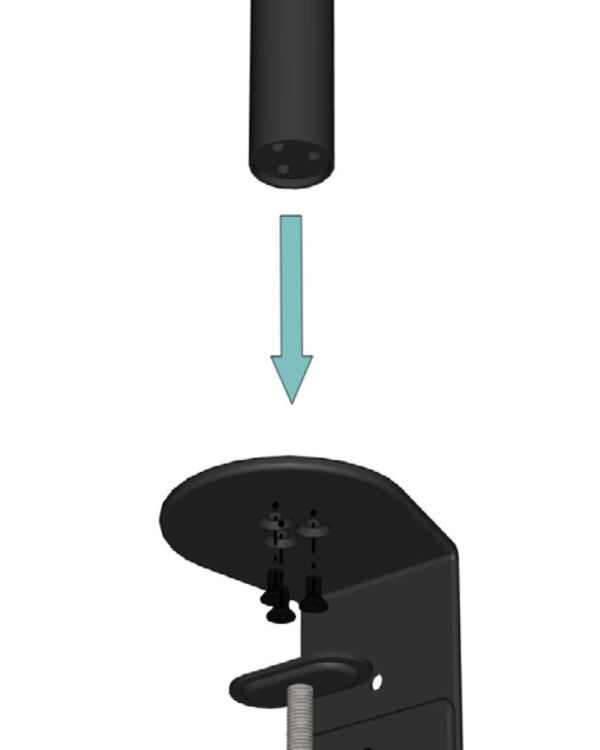

Using the three black bolts provided, attach the black post to the C-clamp.

Step 18

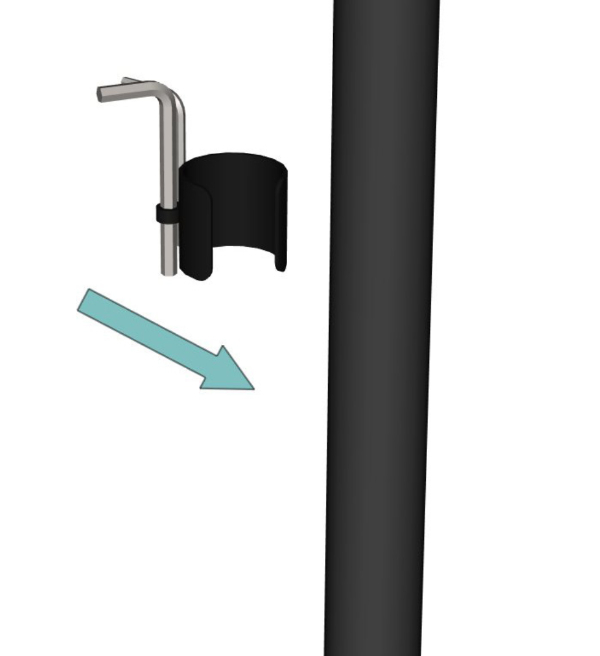

Just so that we know where they are for later, identify the two Allen keys along with the push-fit clamp provided.

Step 19

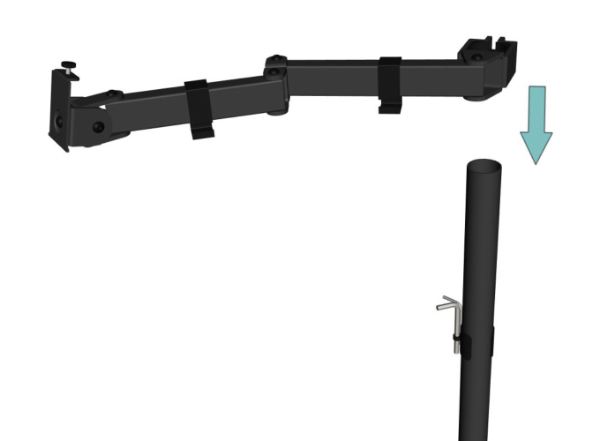

The swivel arm should be pre-assembled. Slide this onto the black post.

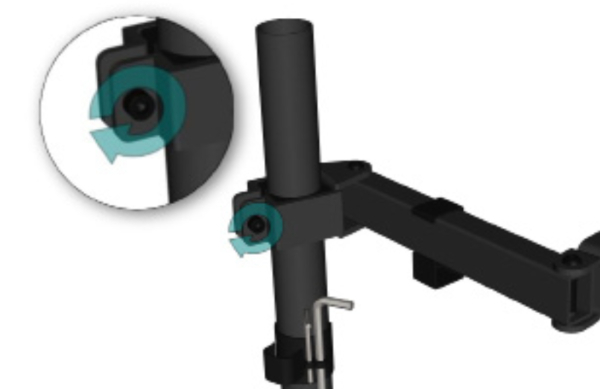

Step 20

At the desired height, use the largest Allen key to lock into position by turning the bolt in a clockwise direction.

Step 21

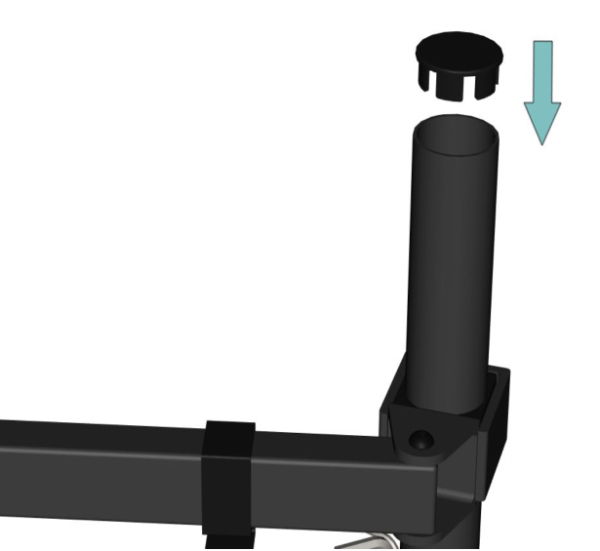

Push the end cap into position.

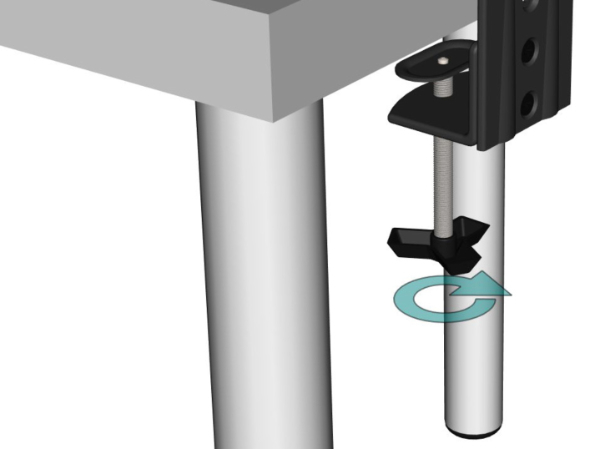

Step 22

With the bracket fully assembled, anchor it to your chosen work surface by turning the handle until it is tight.

Step 23

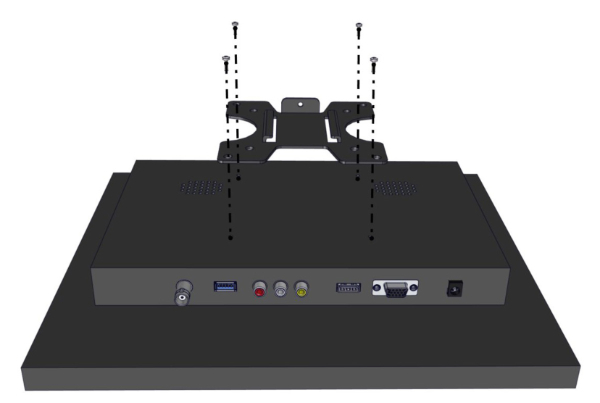

Take the screen bracket and screw this to the back of the monitor using the bolts provided.

Step 24

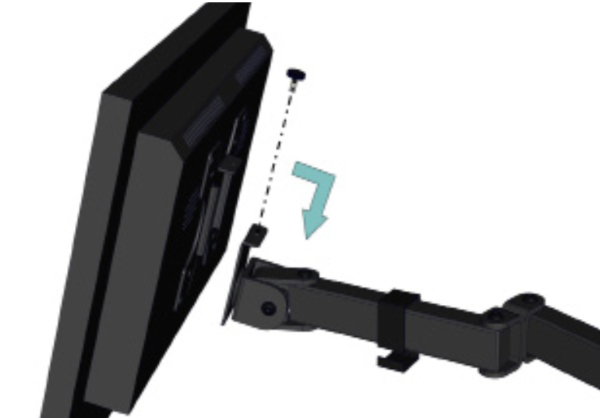

Slide the monitor into position and screw the bolt into place.

Step 25

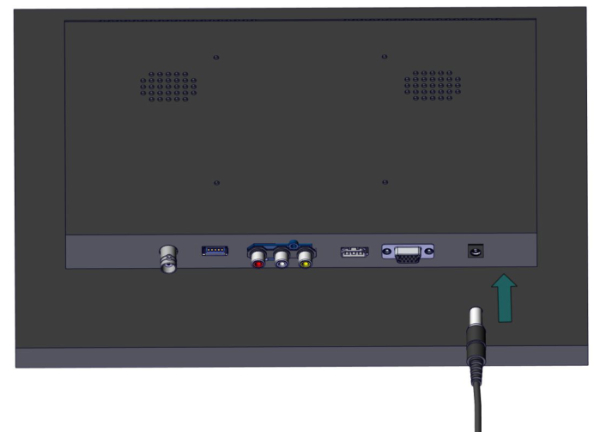

Wiring set-up can be completed using the numbered stickers attached to the ends of the wires. For additional support, use this visual guide.

Step 26

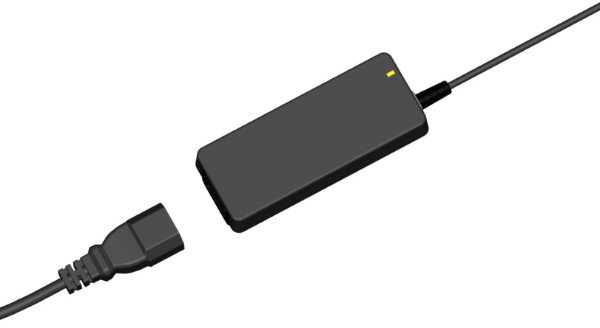

Plug the socket into the wall and then connect the IEC cable to the power adapter. When switched on, a green light may be shown.

Step 27

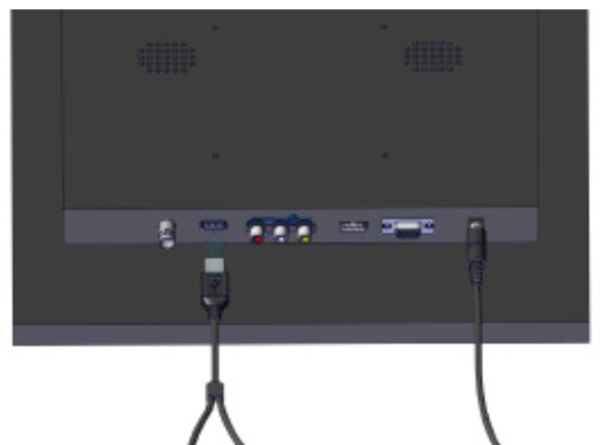

Connect the USB splitter to the USB port at the back of the monitor as shown.

Step 28

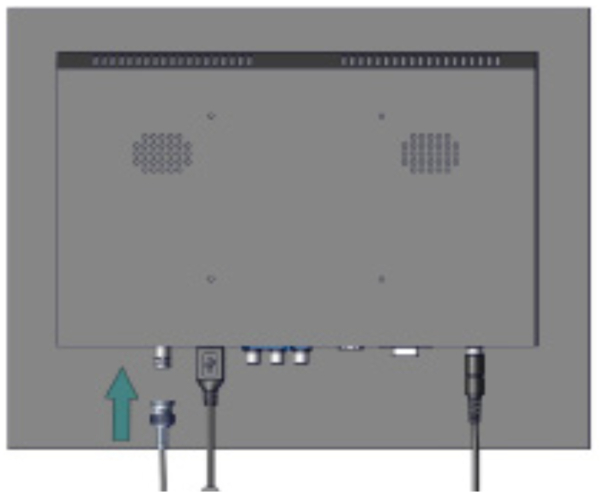

Connect the female end of the BNC extender to connector at the back of the monitor.

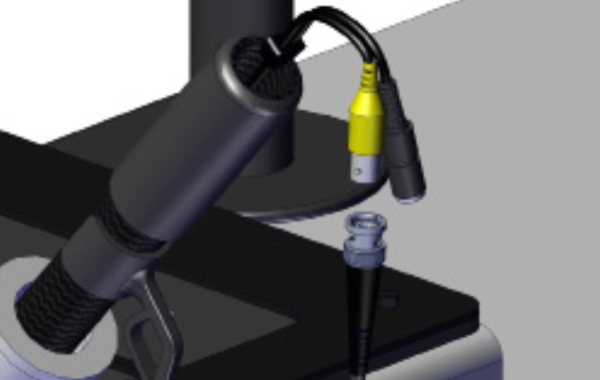

Step 29

Attach the BNC cable to the connector on the scope.

Step 30

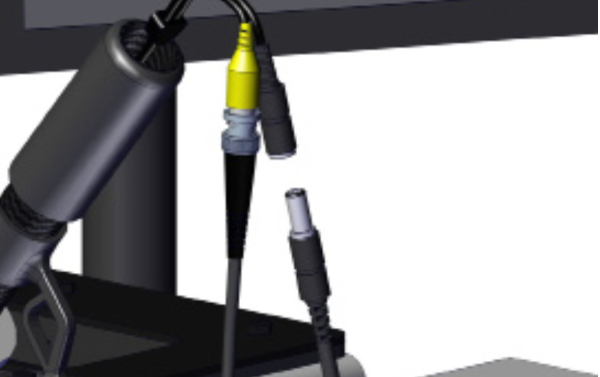

Connect the remaining power cable to the female connector on the scope.

Step 31

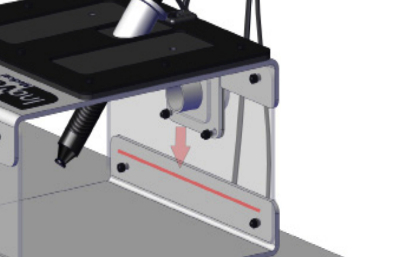

Taking the LED light strip, peel off the sticky back cover and adhere the strip to the internal aspect of the front panel in a similar position to the red line as illustrated on the left.

Step 32

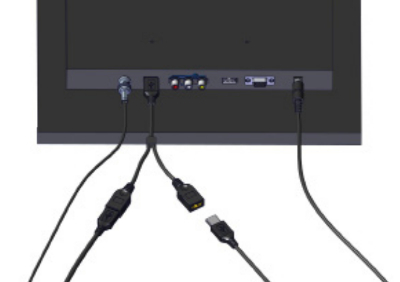

Finally, connect the LED strip to the remaining USB port on the USB splitter.
