HystAR Pro Setup Manual (1st Generation)

Welcome to the step-by-step assembly guide for the HystAR Pro. Whether you prefer step by step instructions or a video demonstration, this guide will walk you through the assembly process.

Before you begin, take a moment to review the package's contents and acquaint yourself with the included components. The following content has been crafted to provide you with all the insights required to transform individual parts into a functional and invaluable tool for honing your surgical skills.

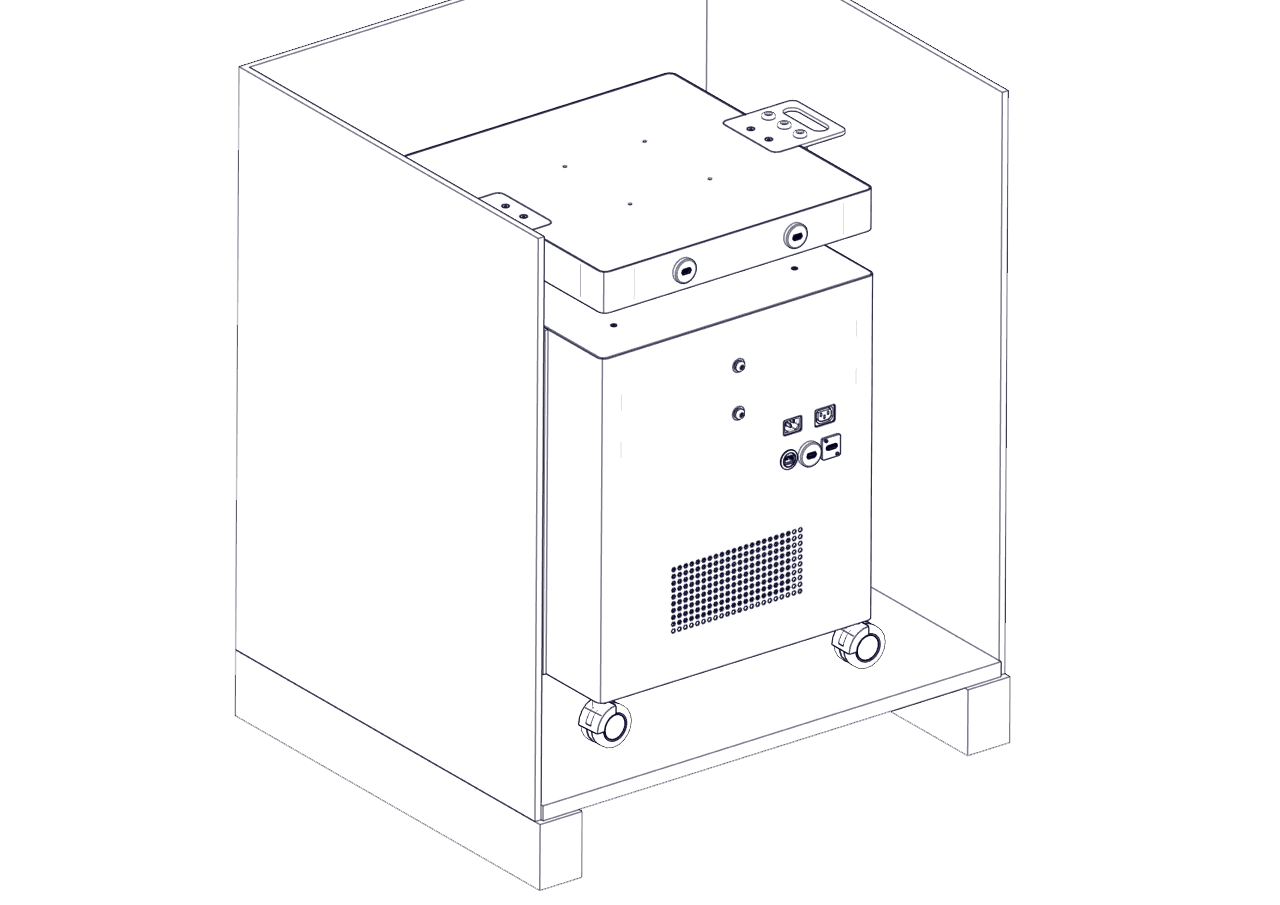

Step 1

On opening the crate locate the two metal ramps.

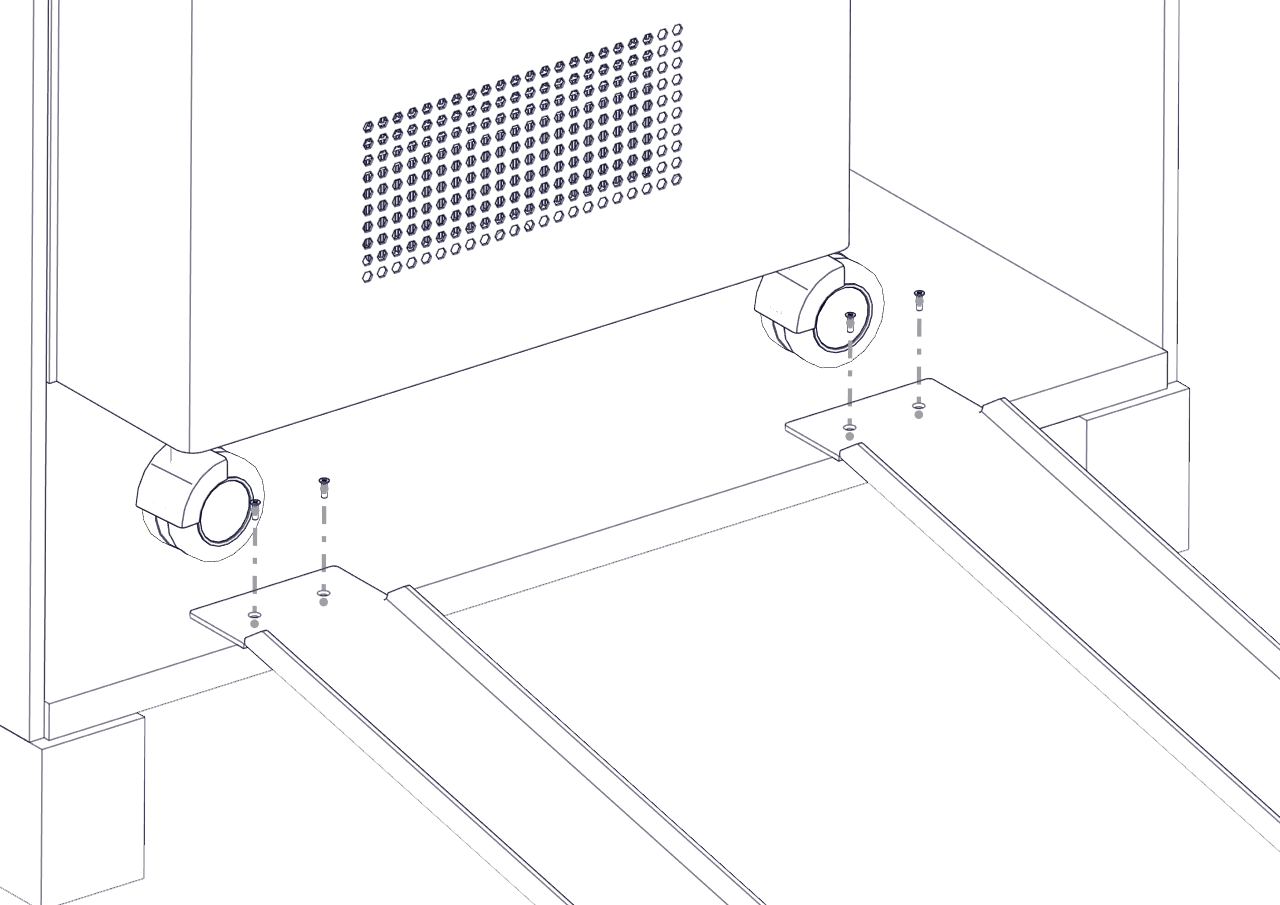

Step 2

Align the ramps with the trolley wheels.

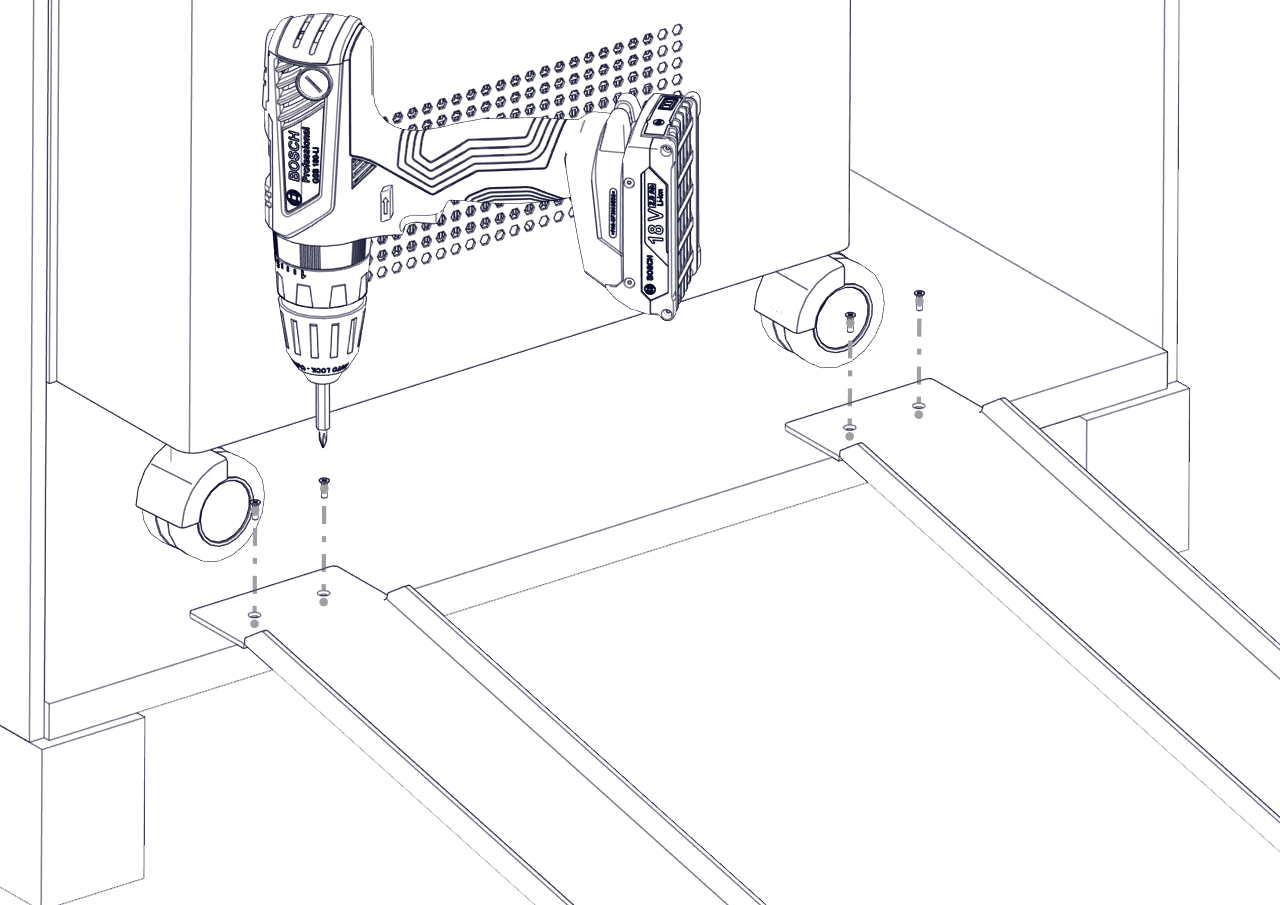

Step 3

Attach the ramps to the inside of the base of the crate with the screws provided as shown.

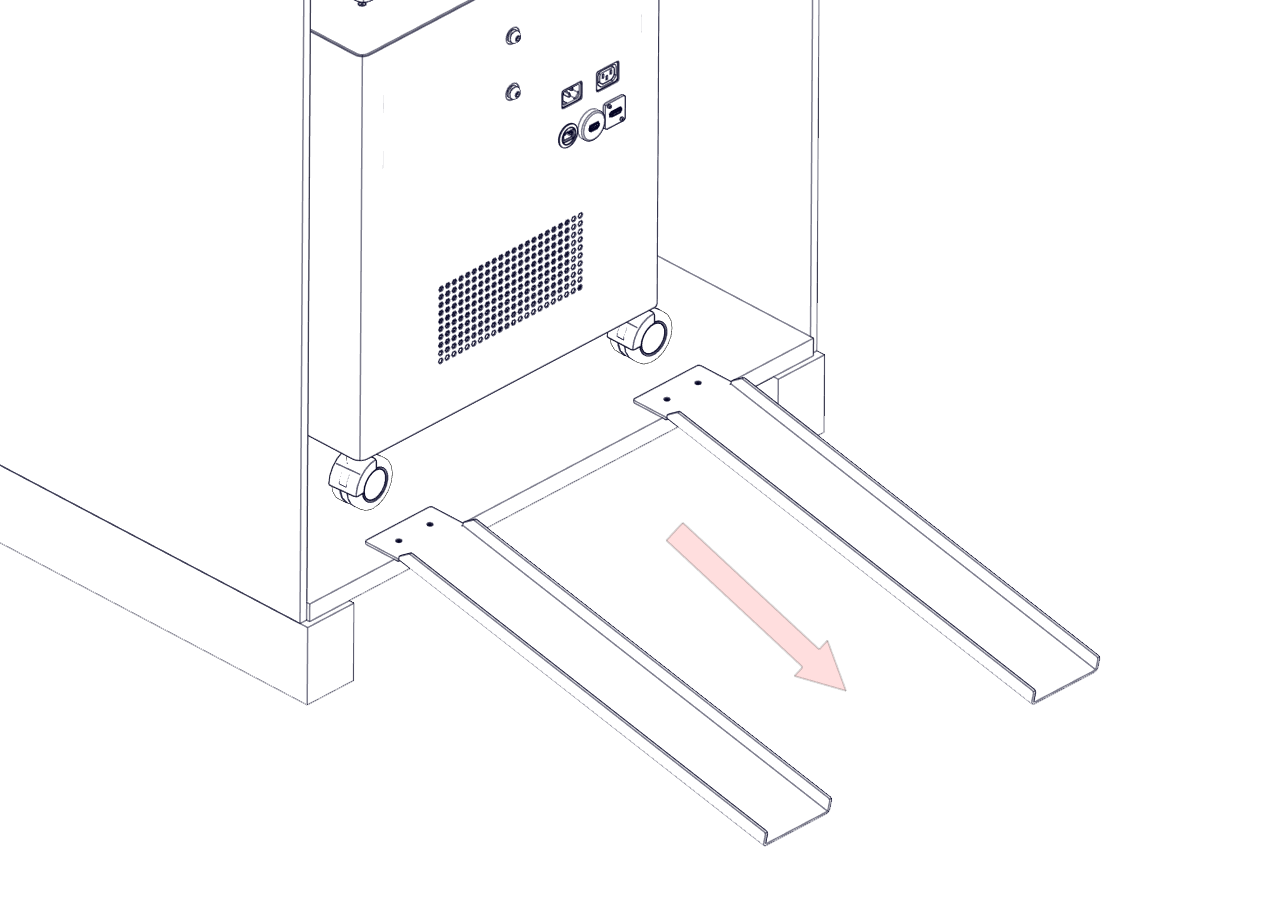

Step 4

Manouvre the trolley onto the ramps ensuring the wheels are pointing in a forward position and roll the trolley down the ramps and onto a level surface.

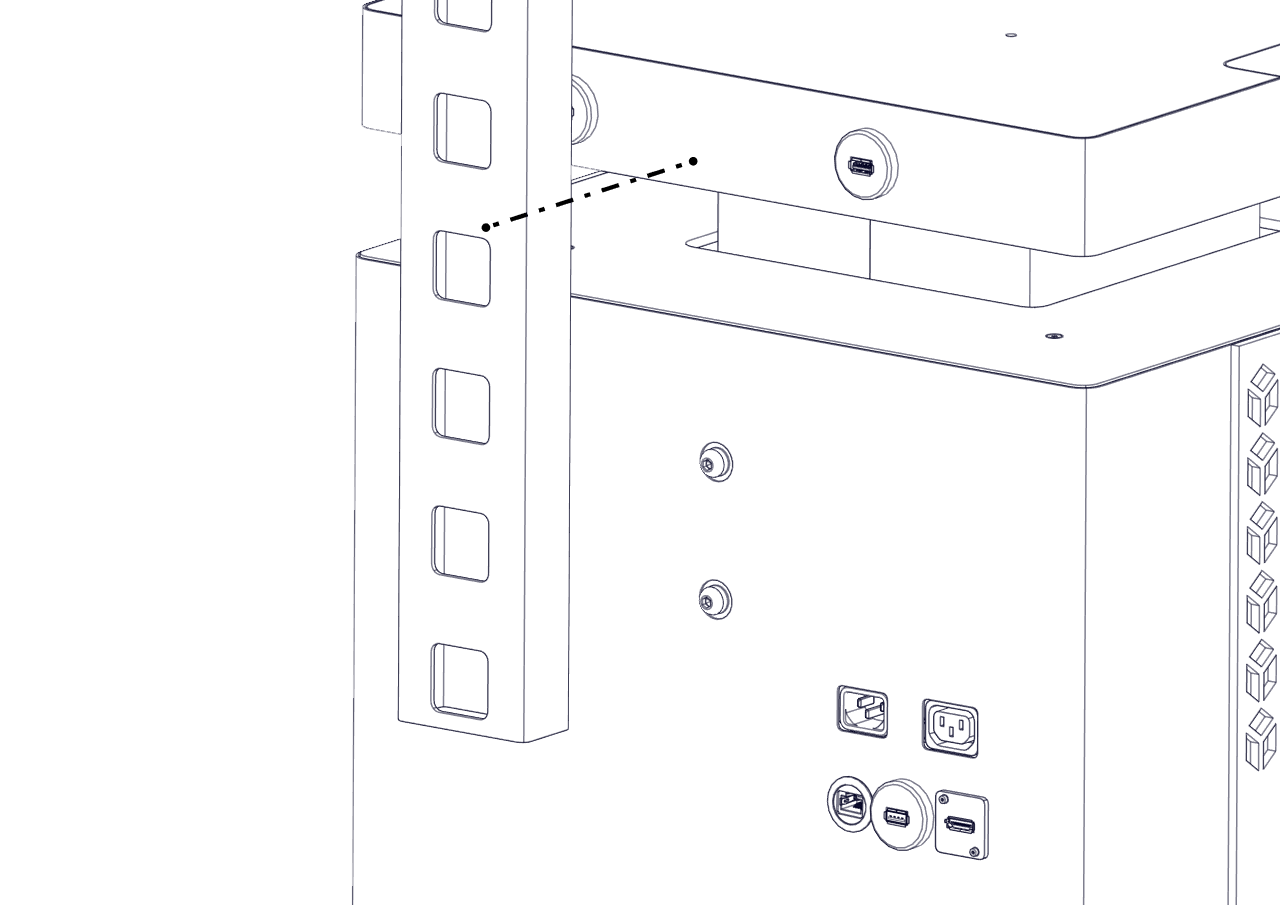

Step 5

Start the assembly of your portable trolley system by unscrewing the M8 bolts at the rear of chassis so that you have around 3-4mm of space between the head of the bolt and the chassis wall.

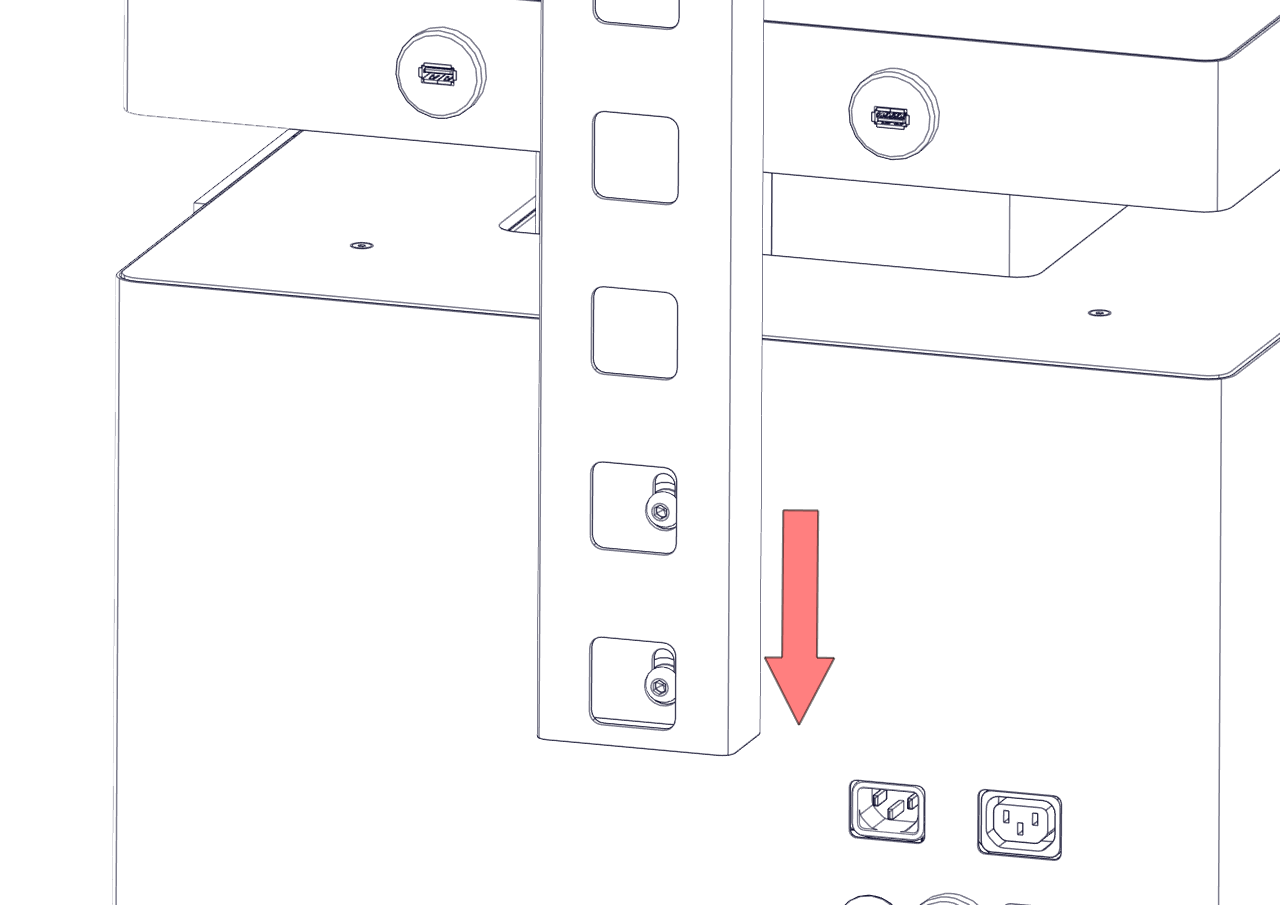

Step 6

Take the L shaped screen bracket and place it onto the M8 bolts as shown.

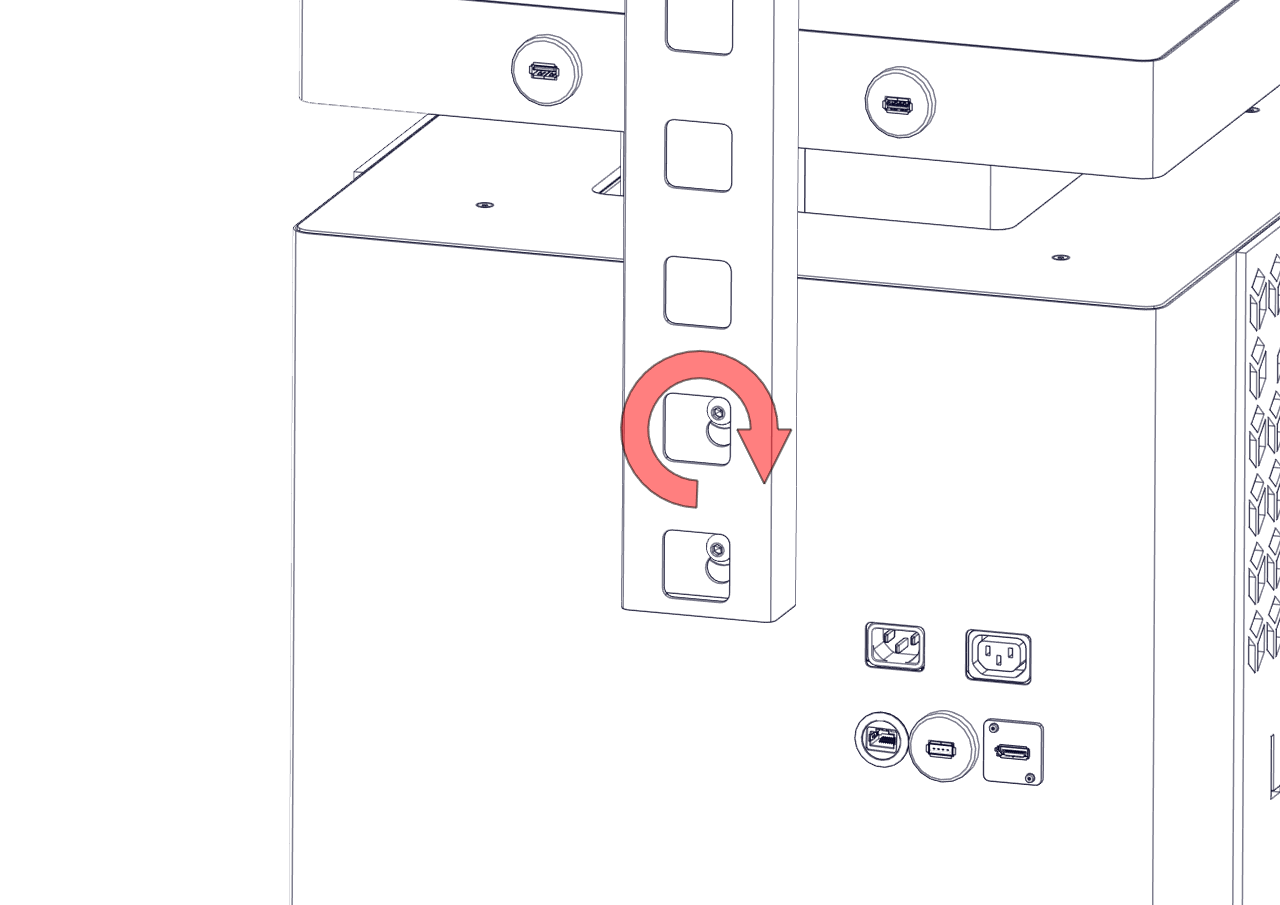

Step 7

Screw the bolts tight using the allen key provided.

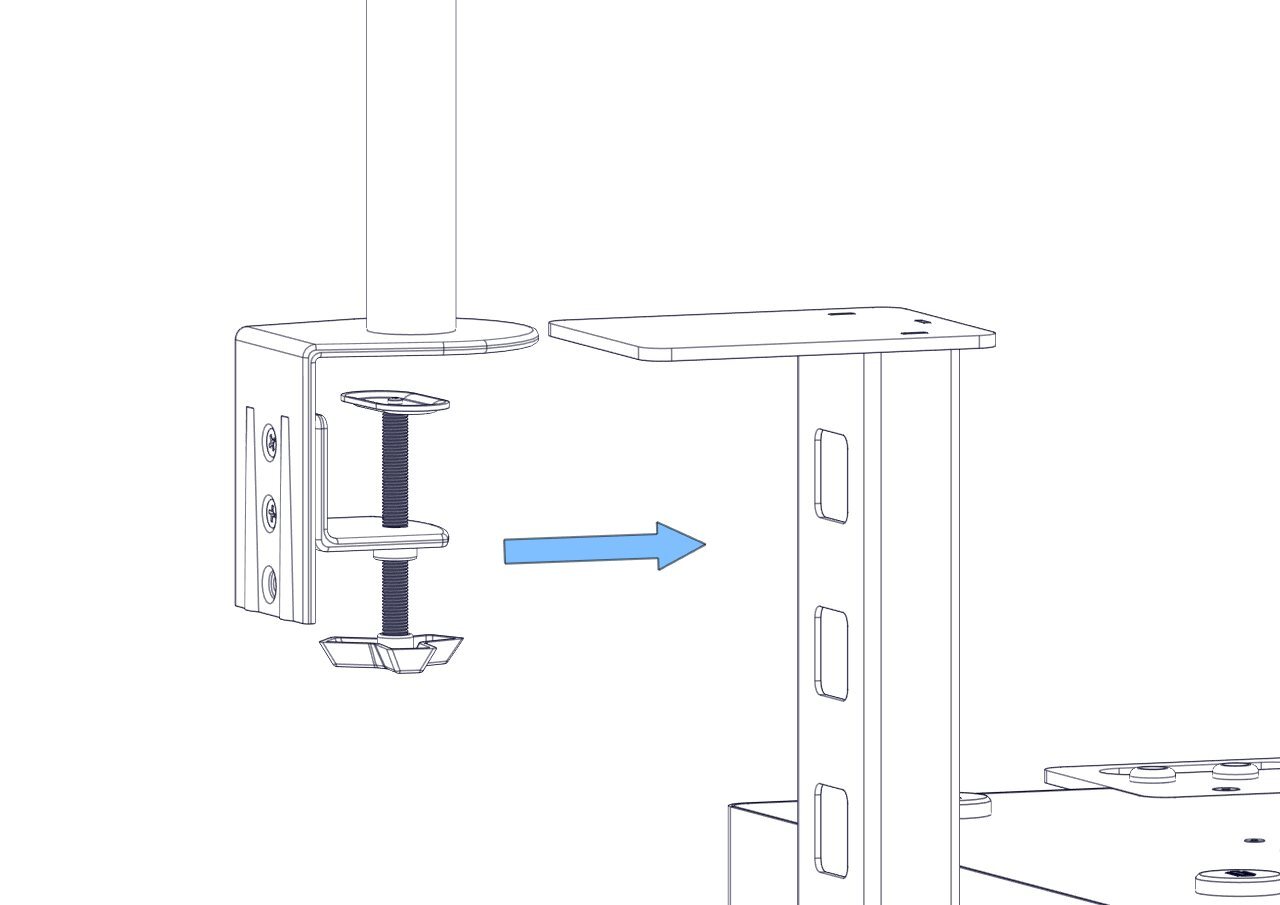

Step 8

Take the assembled monitor bracket and clamp it in position as shown.

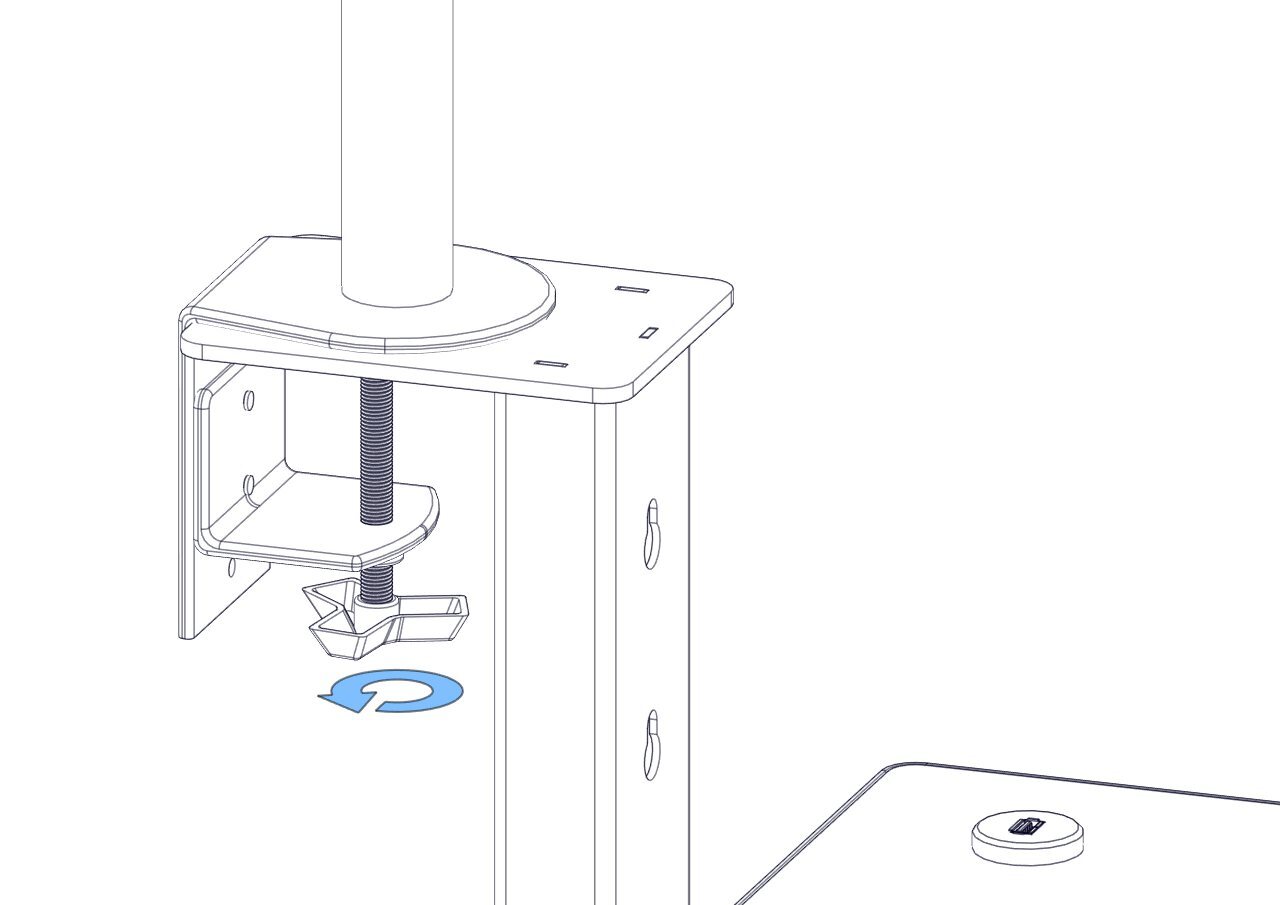

Step 9

Screw the clamp clockwise until tight.

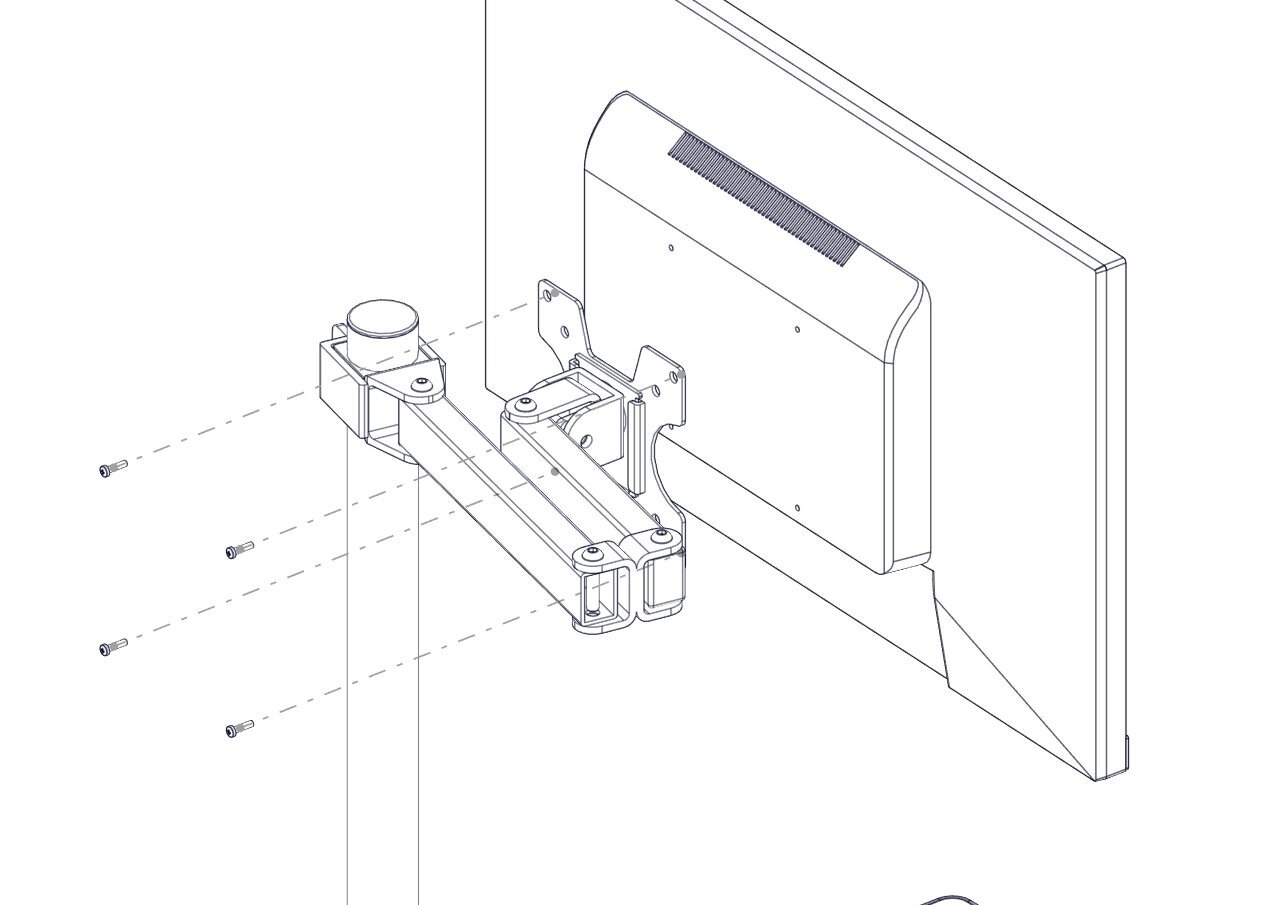

Step 10

Attach the monitor screen using the 4 x M5 bolts provided.

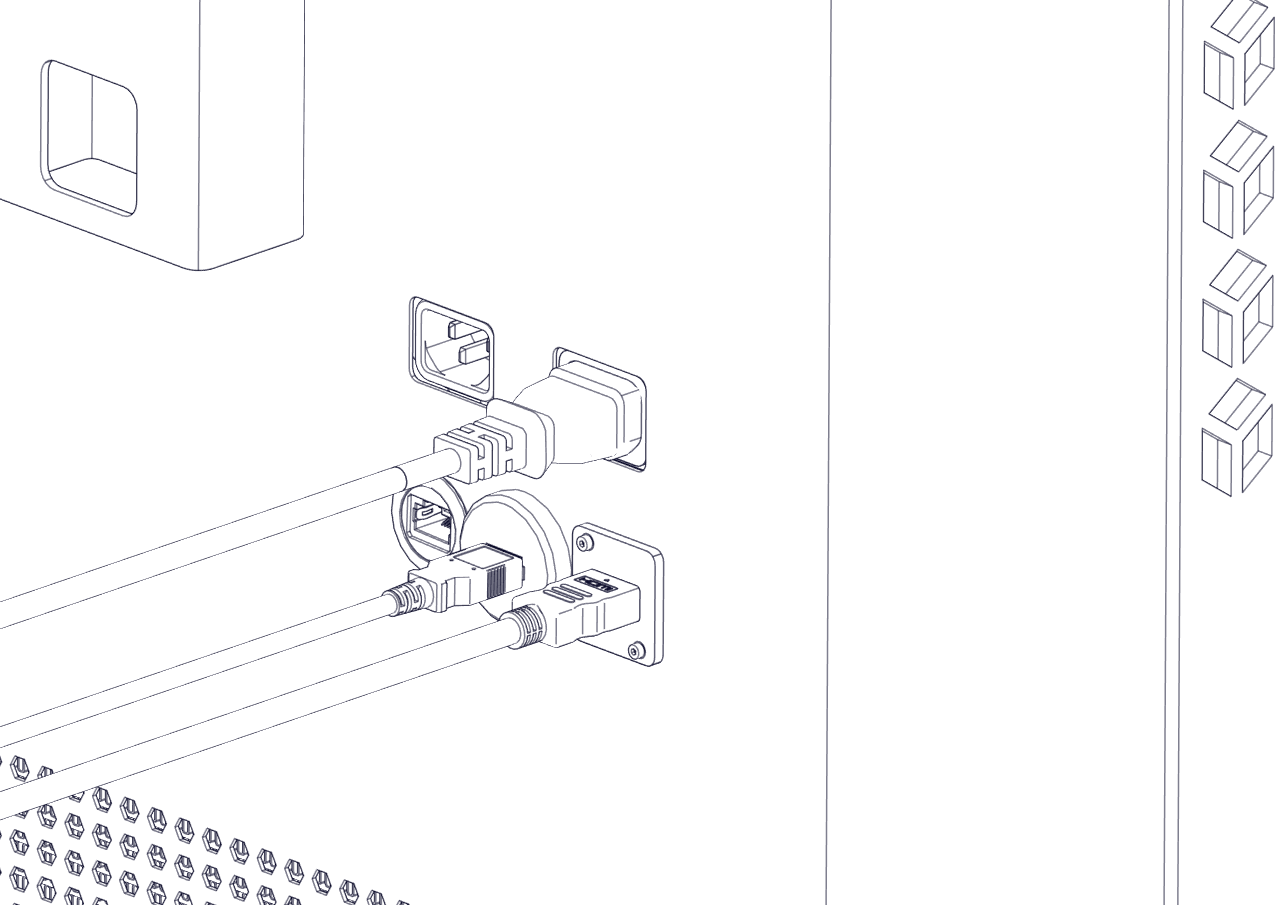

Step 11

As shown in the image, plug in the IEC, HDMI & USB cables.

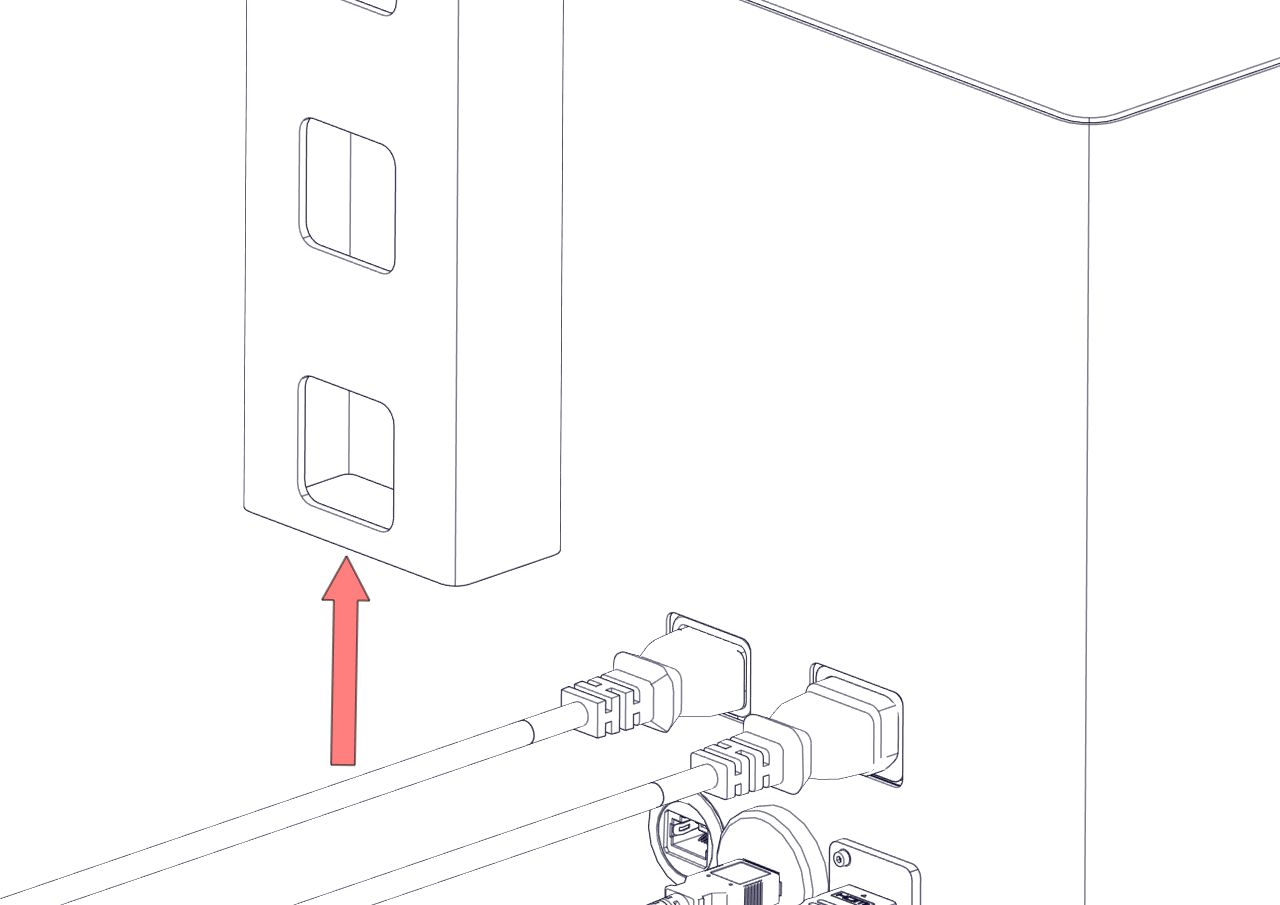

Step 12

Carefully thread the 3 wires we plugged in during the previous step up through the L shaped bracket and onto the monitor bracket. Move to the next step.

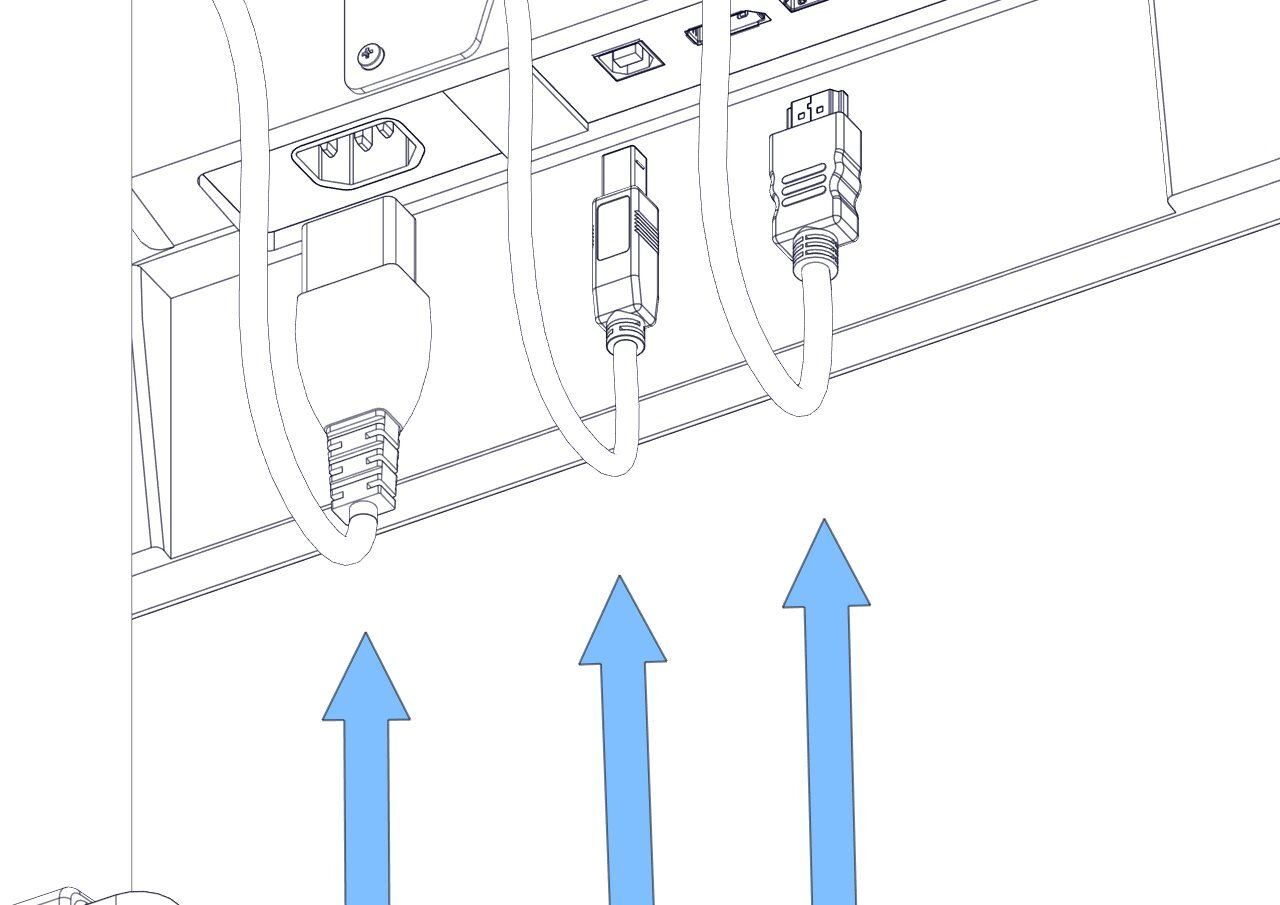

Step 13

Position the wires as such and plug in to the appropriate socket.

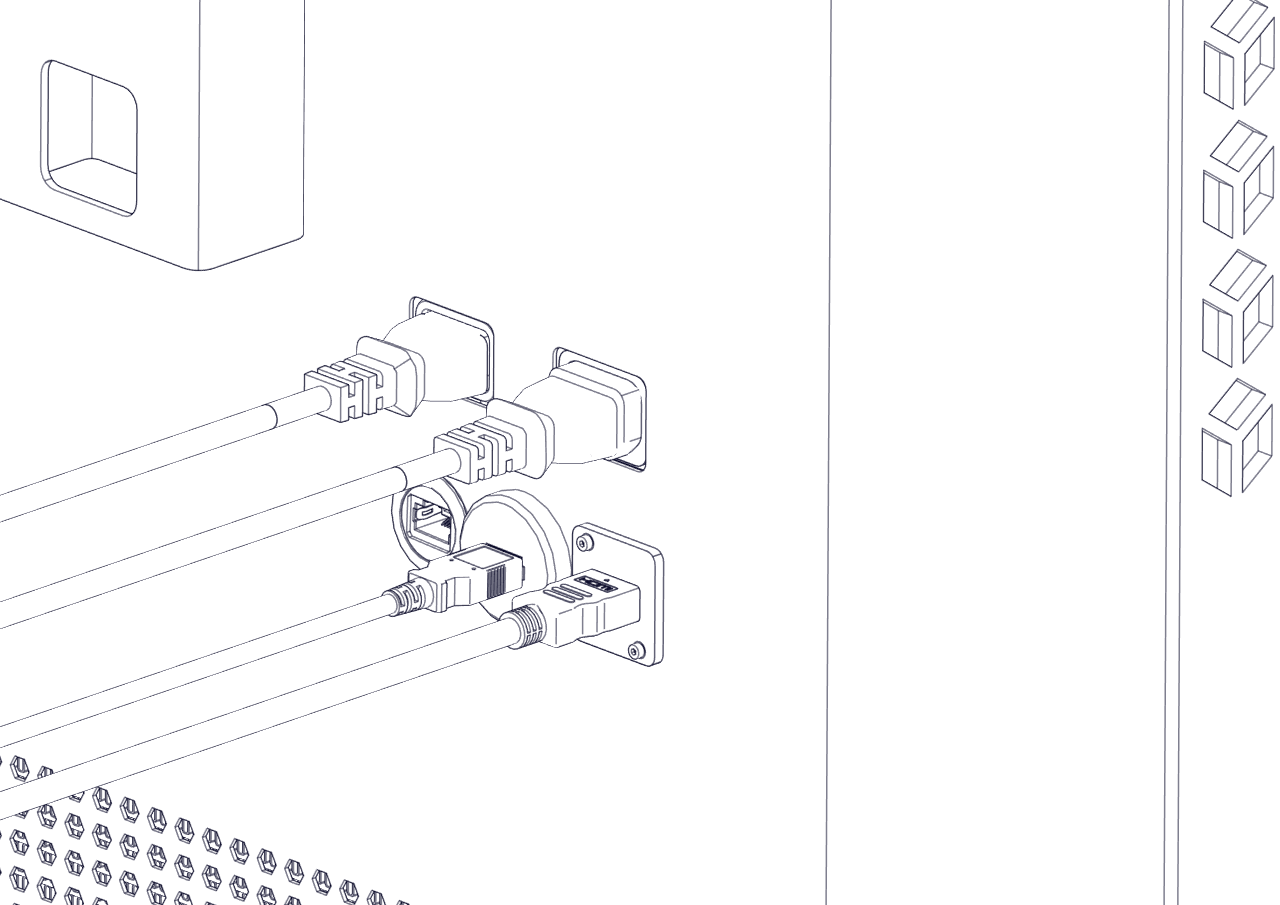

Step 14

Plug the IEC connector into the back of the system.

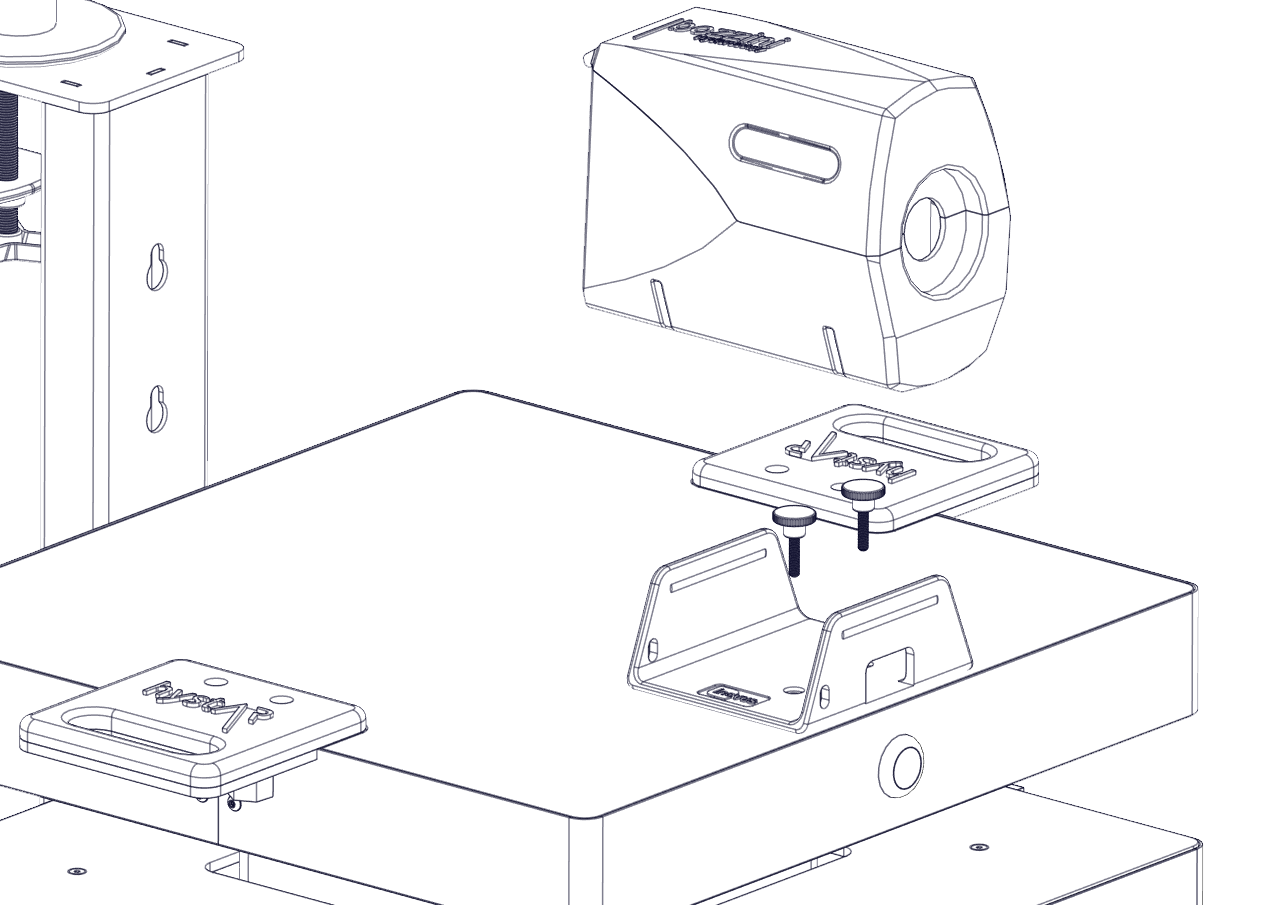

Step 15

Align the U-shaped bracket with the bolt holes on the top of the trolley system and screw in position.

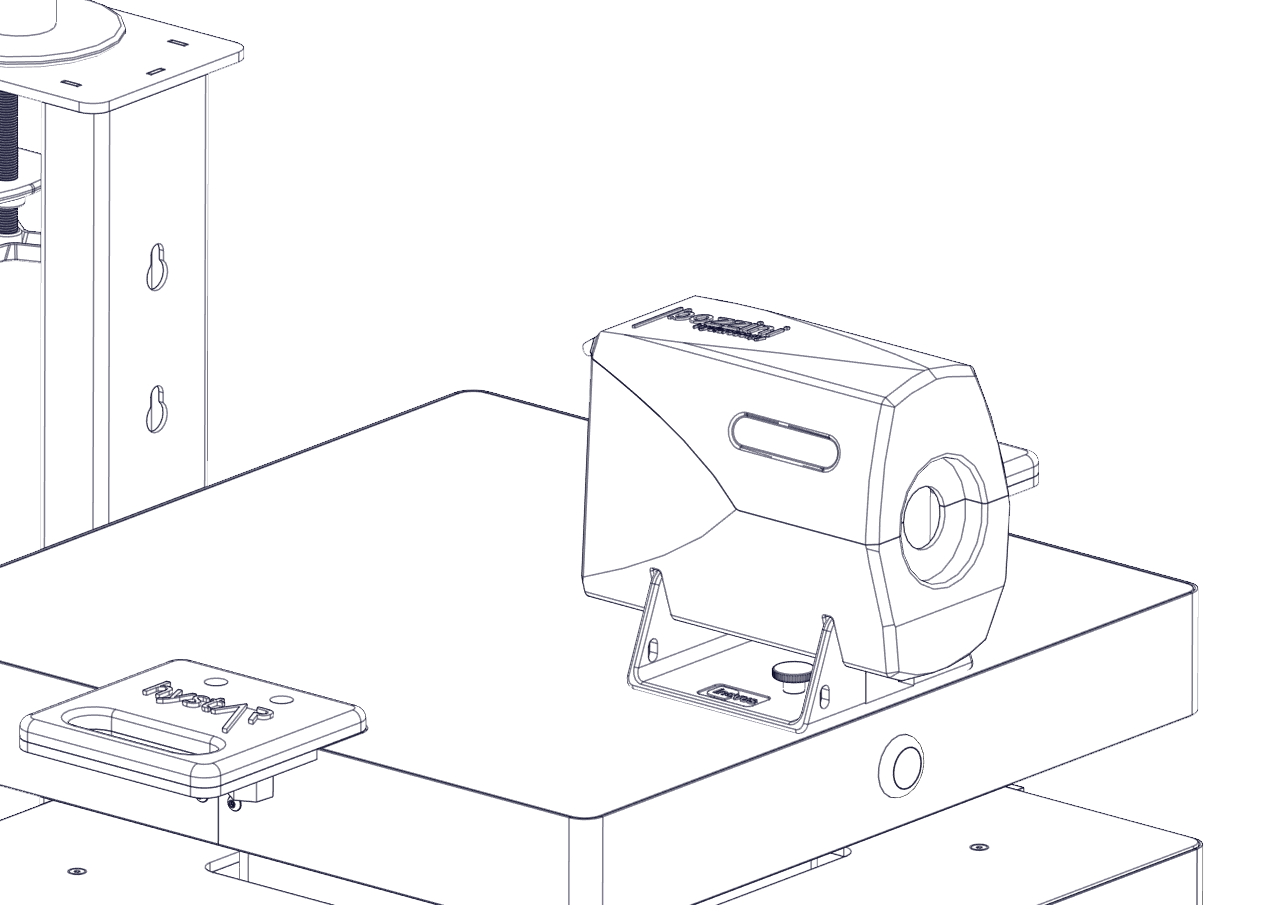

Step 16

You may now place the uterus housing onto the U-shaped bracket.

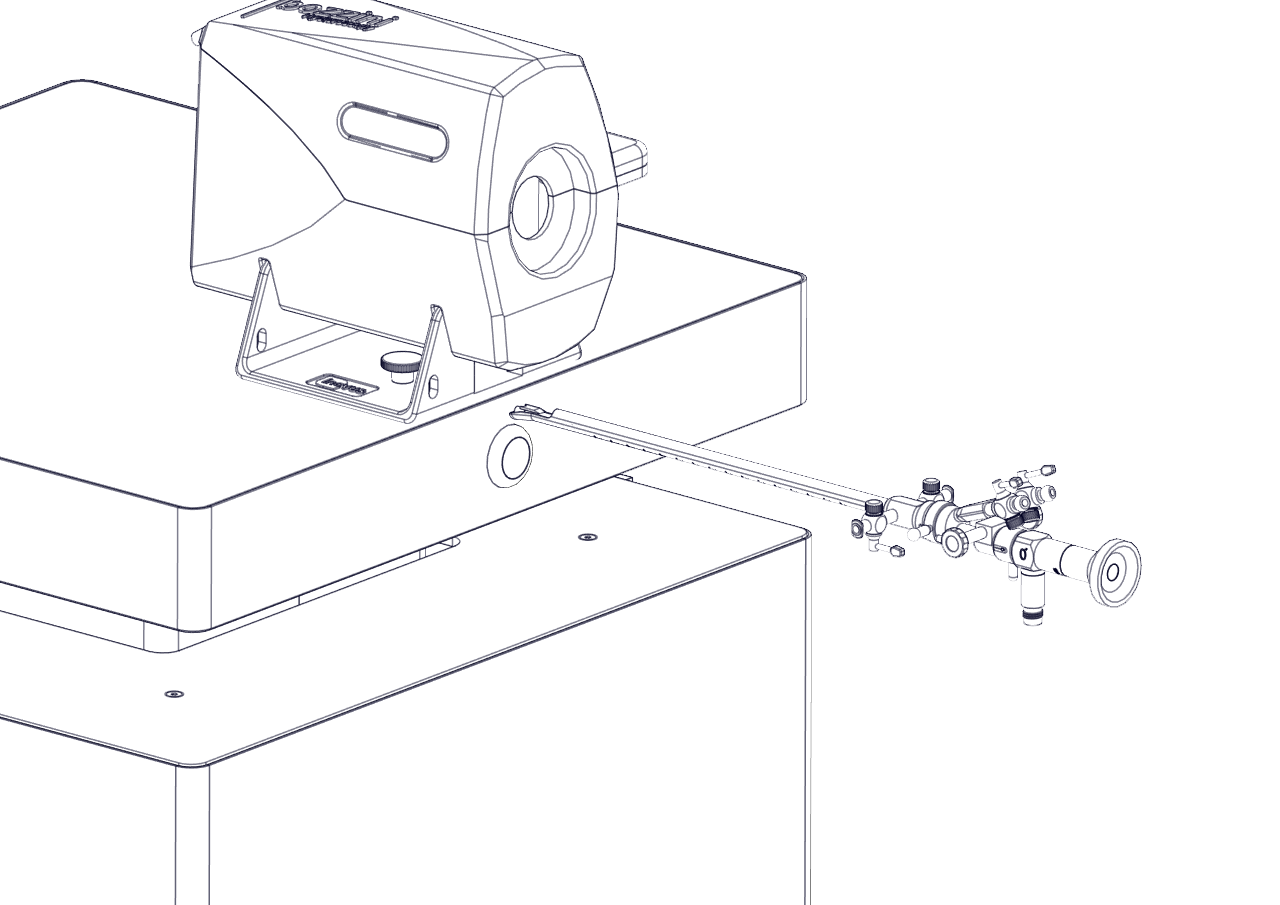

Step 17

Insert the scope into the introducer.

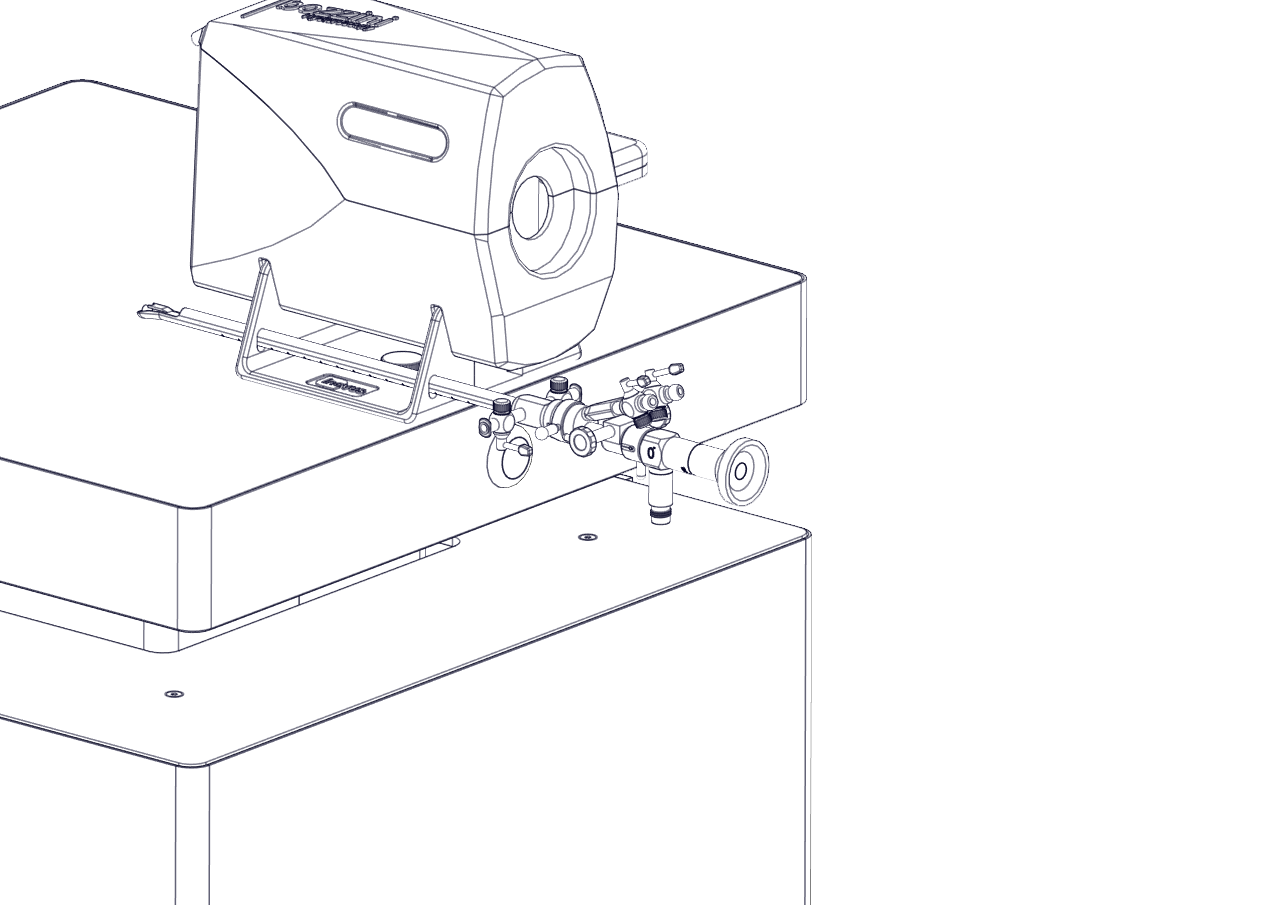

Step 18

Place the hysterscope in the holes provided on the left hand side of the U-shaped bracket.

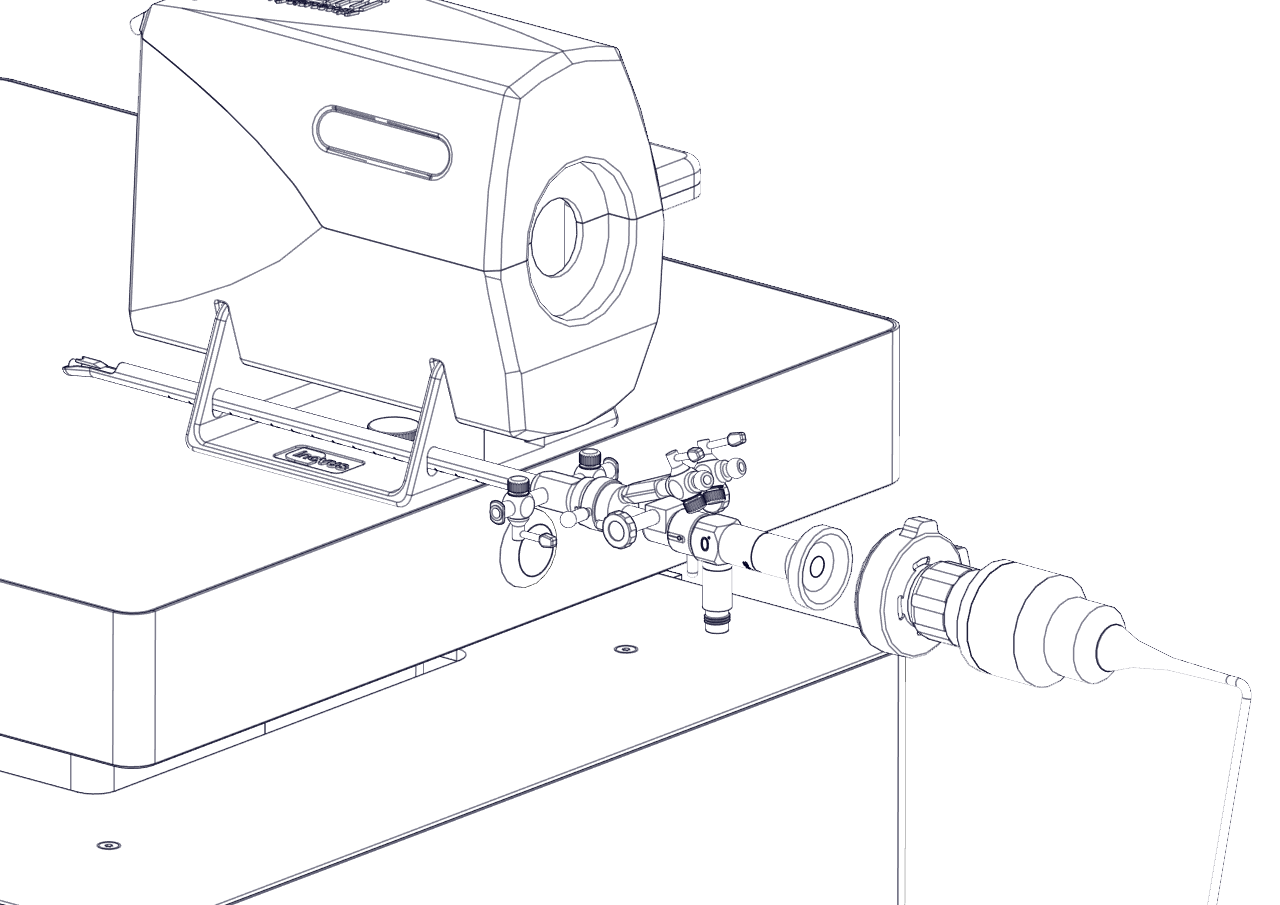

Step 19

Taking the camera attach the coupler to the scope.

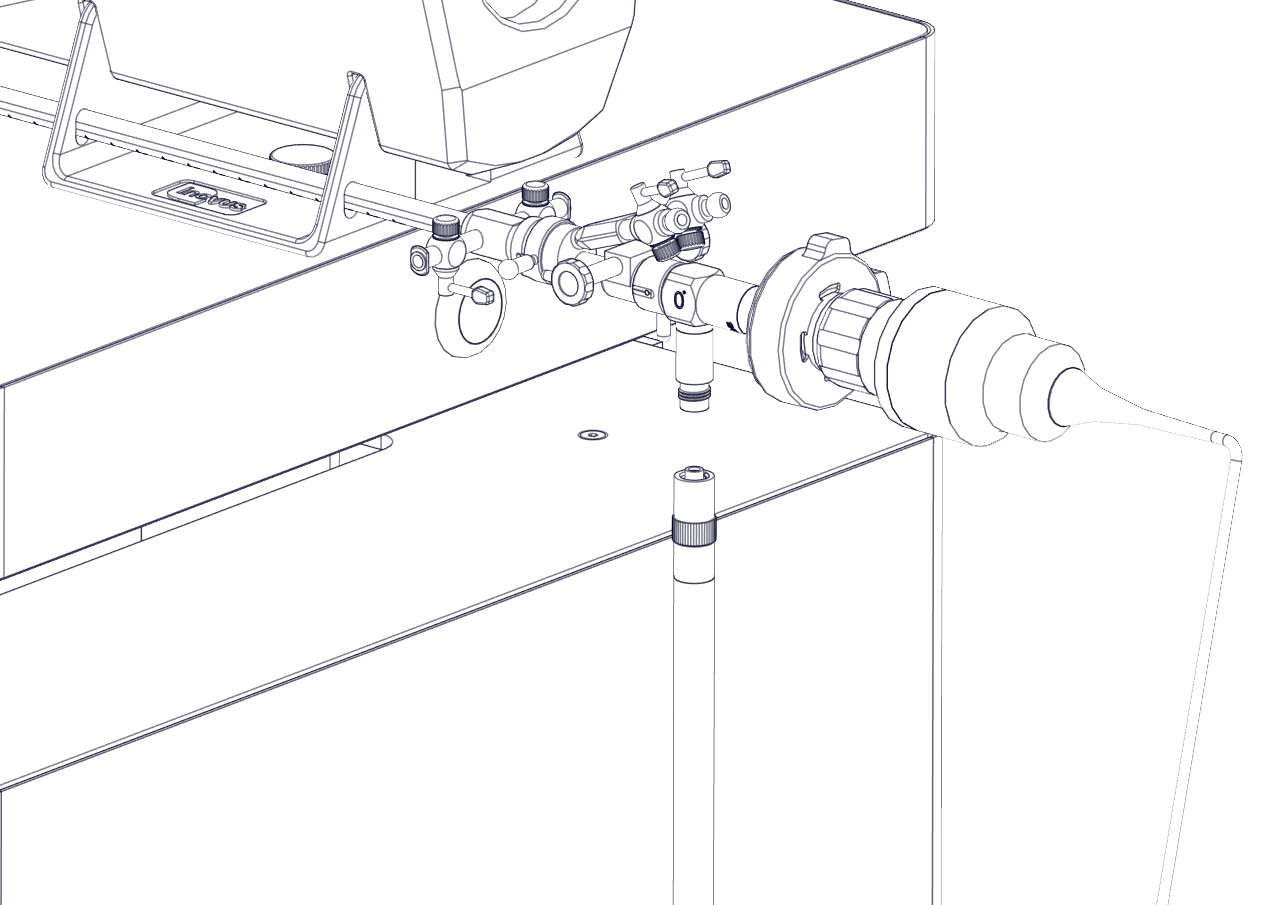

Step 20

Screw the fibre optic light lead to the scope as shown.

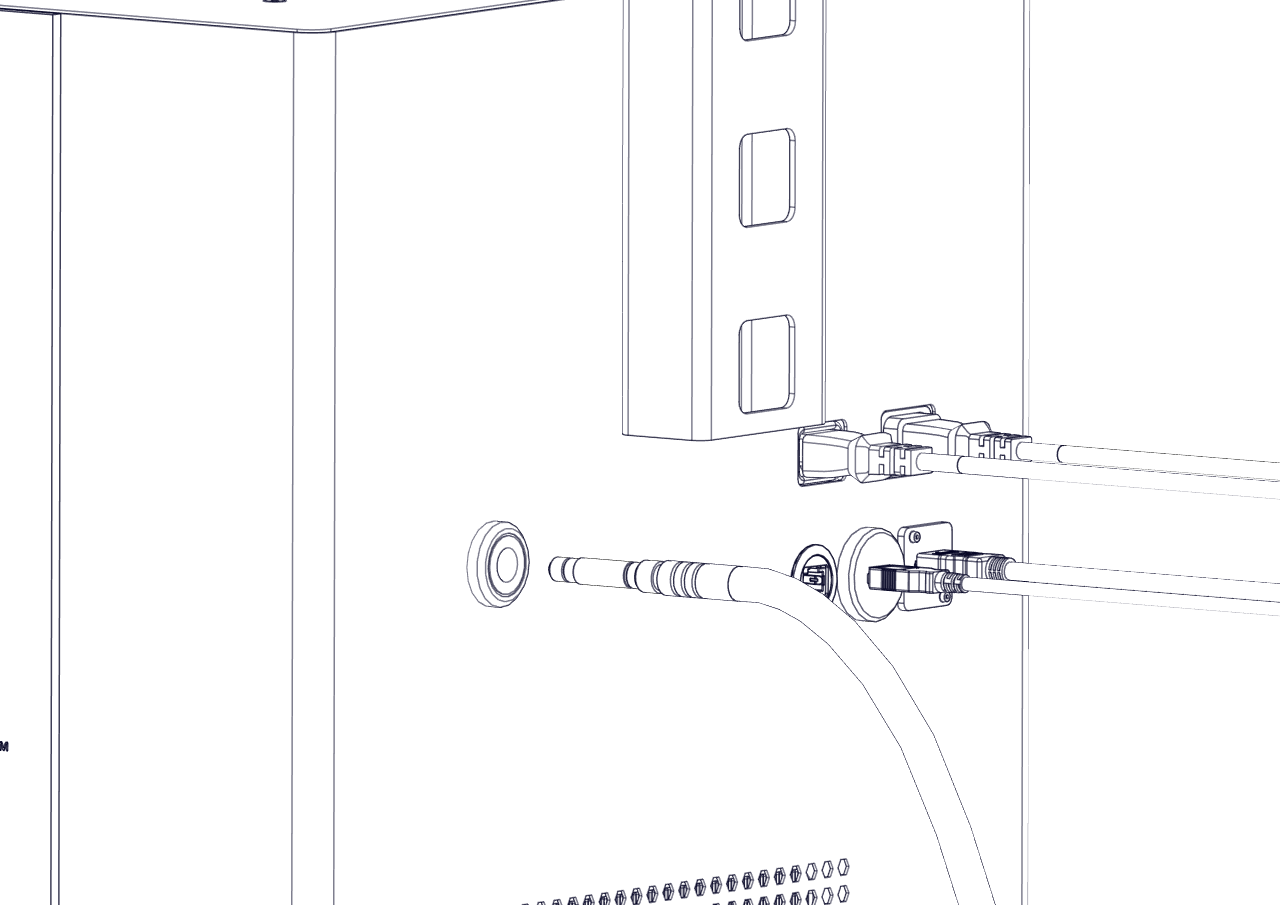

Step 21

Insert the fibre optic light lead into the back of the trolley system.

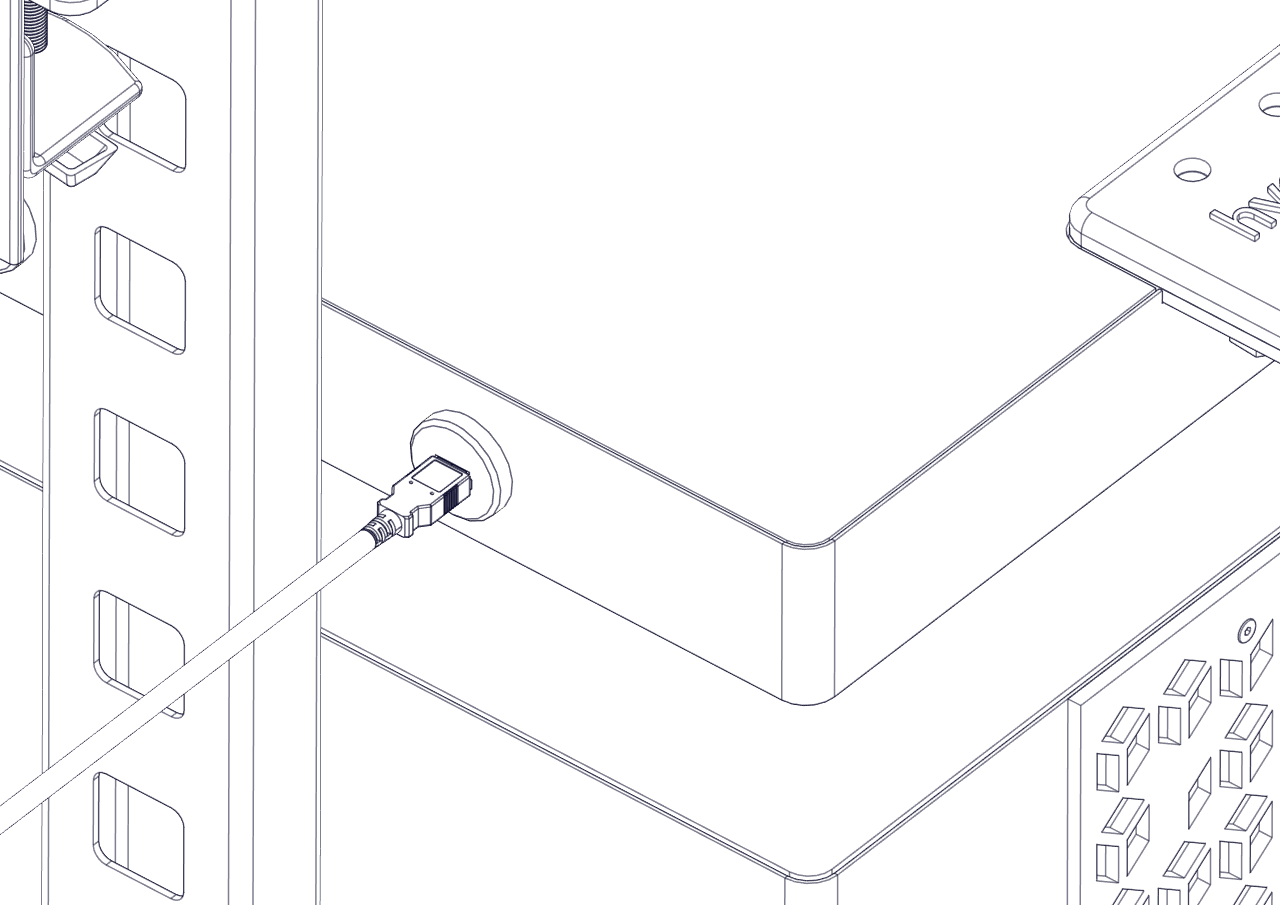

Step 22

Plug in the USB cable to the USB ports on the trolley system

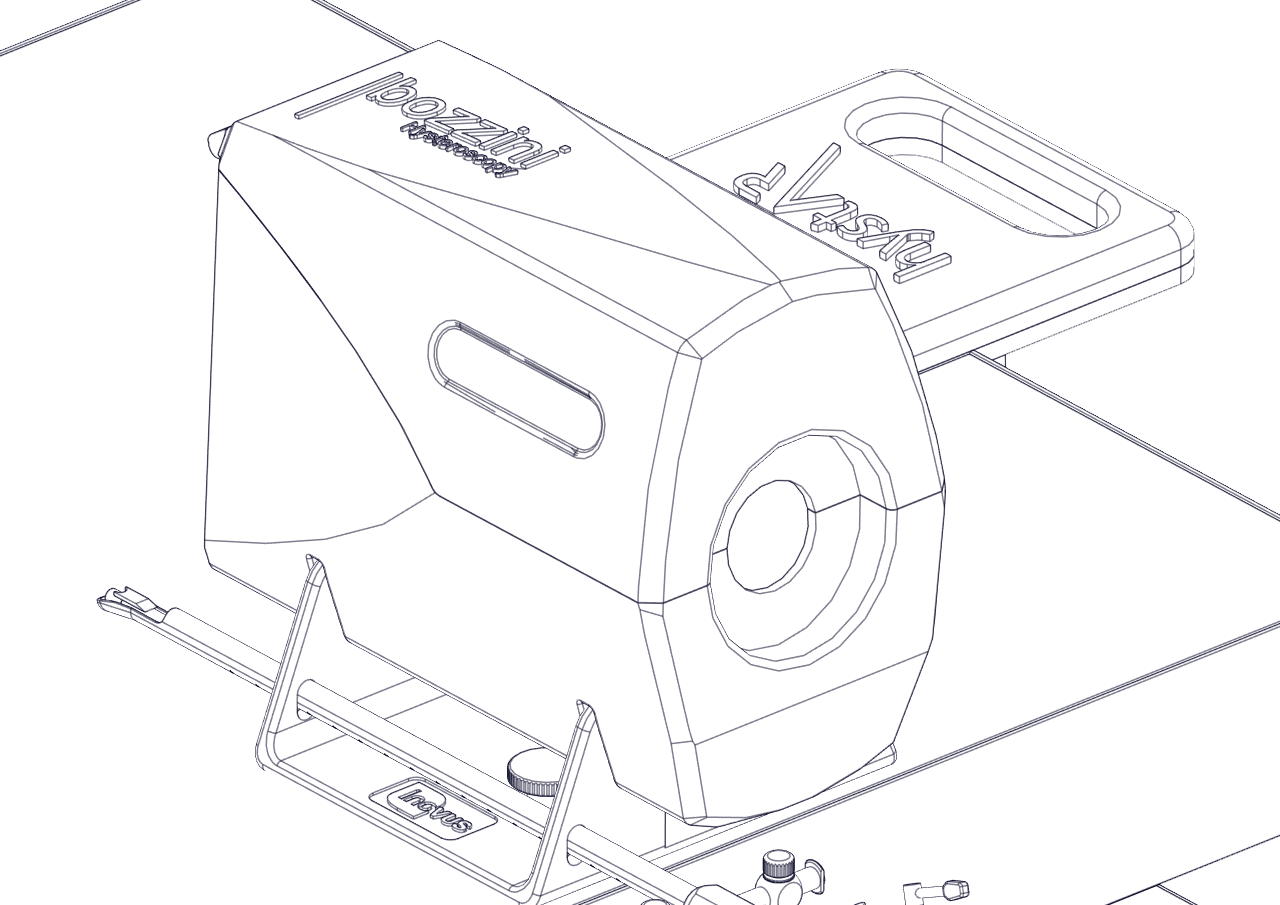

Step 23

Turn the system on using the power switch on the front of the trolley system.
