Setup guide

Lab Range Cholecystectomy

Assemble the LABrange cholecystectomy model for laparoscopic or robotic training.

Overview
Intermediate•15+ mins
Lab Range Cholecystectomy#lab-range#cholecystectomy#hardwareUpdated 18/11/2026

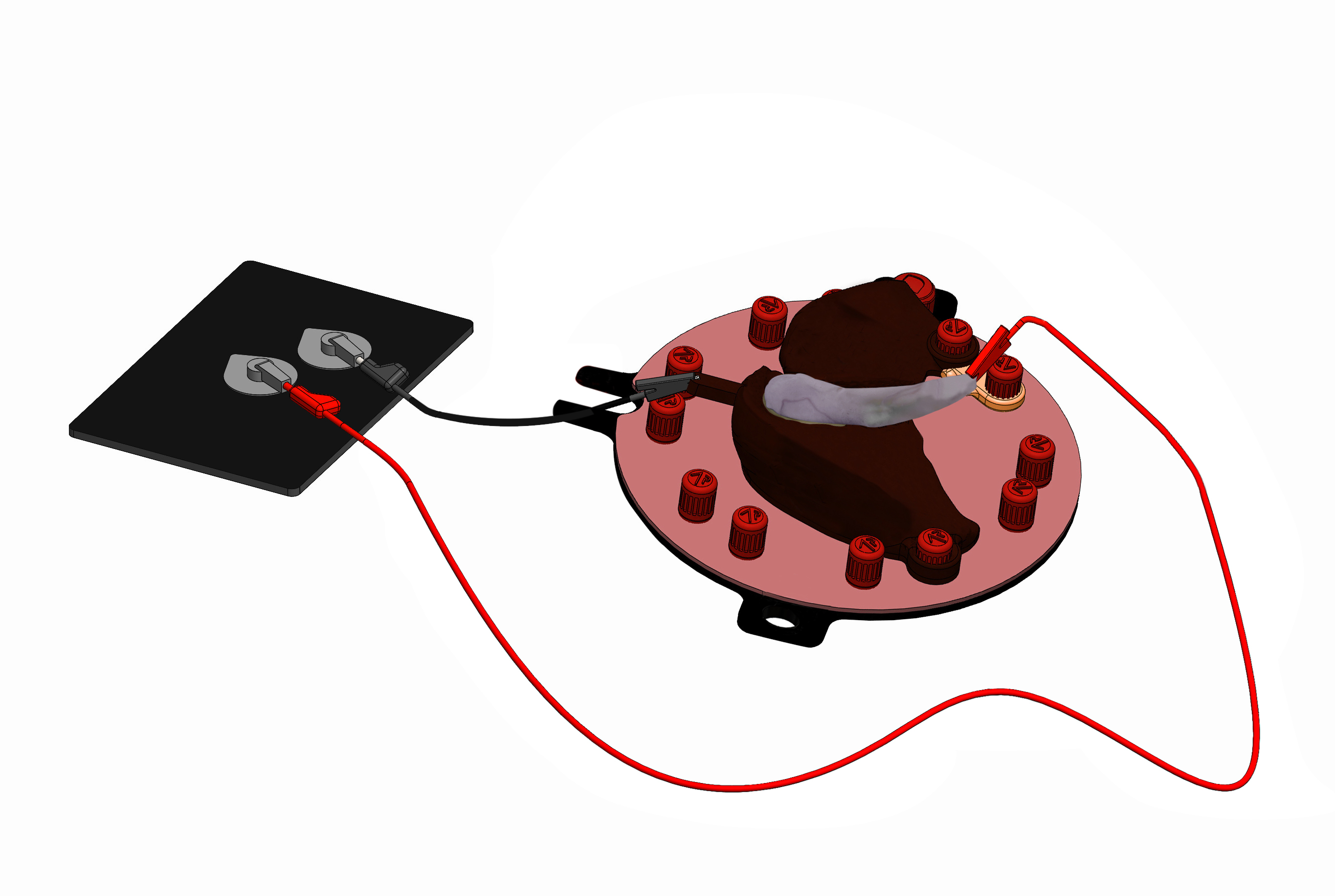

Step 1

Laparoscopic assembly - Assembly instructions for the fluorescence-enabled, energy compatible 'synthetic cadaver' for laparoscopic cholecystectomy training.

Step 1

Step 2

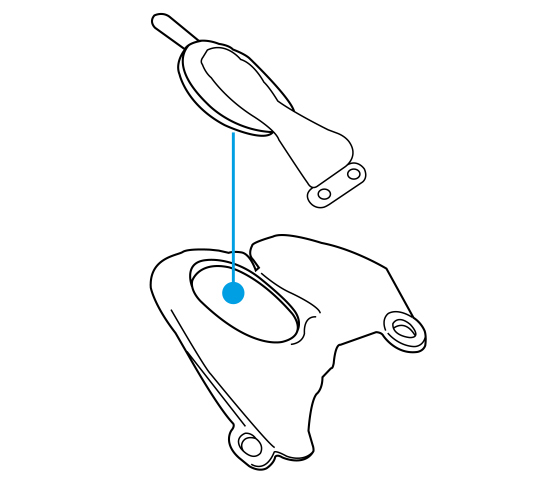

Insert the model and puck. Take the cholecystectomy model and puck. Insert both into the recess within the liver model, ensuring the spine pierces the liver model. Make sure the tab on the puck is facing upward, away from the liver model.

Step 2

Step 3

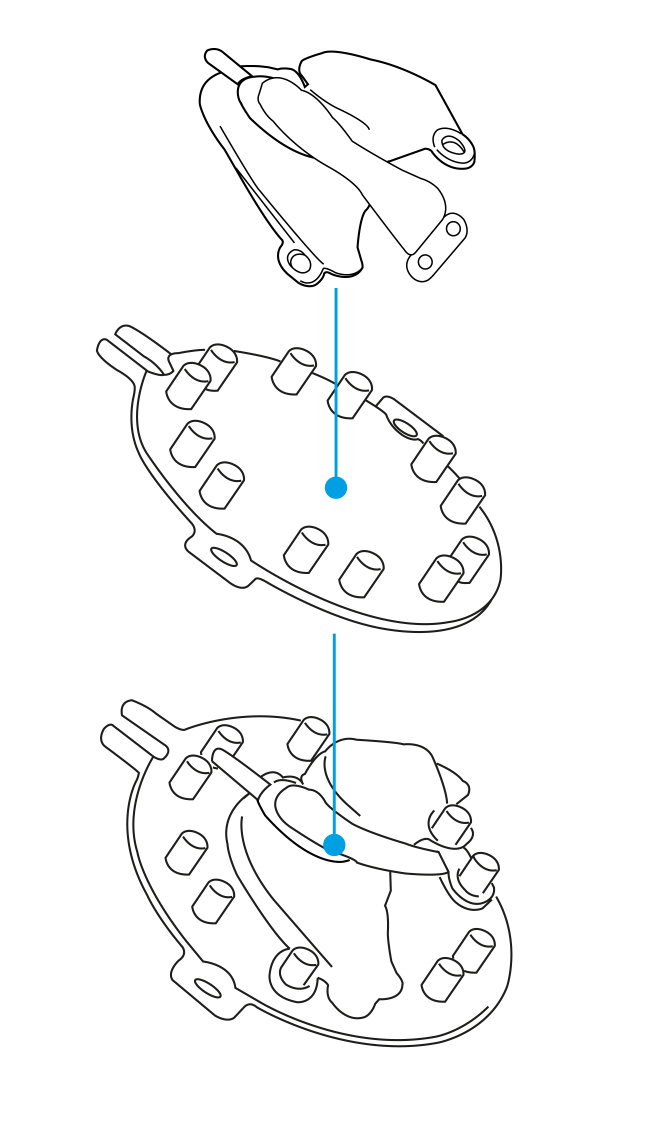

Mount the assembly. Place the cholecystectomy model, puck, and liver model onto the Model Mounting Jig (MMJ) as shown.

Step 3

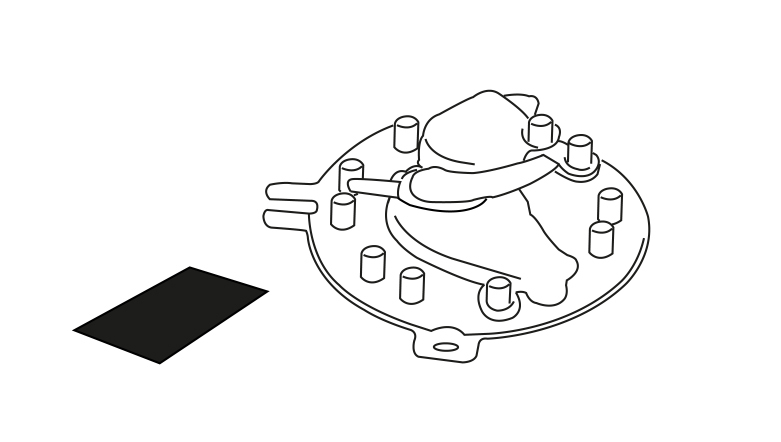

Step 4

Prepare the workspace. Lay the assembled model and MMJ flat on the desktop. Position the LABrange Monopolar grounding pad next to the assembled MMJ.

Step 4

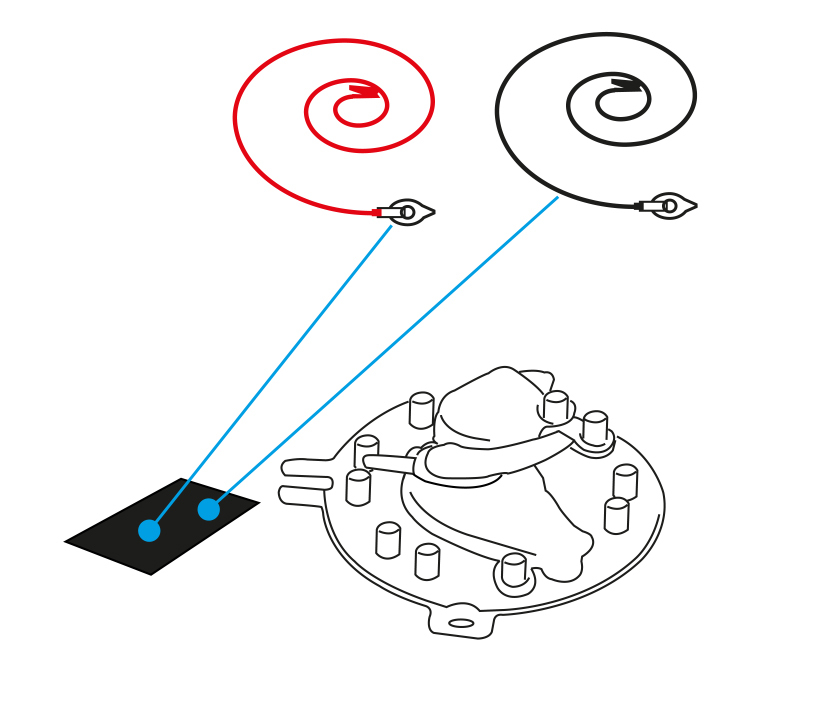

Step 5

Connect the energy pads. Connect the LABrange energy pads to the grounding pad as shown in the diagram.

Step 5

Step 6

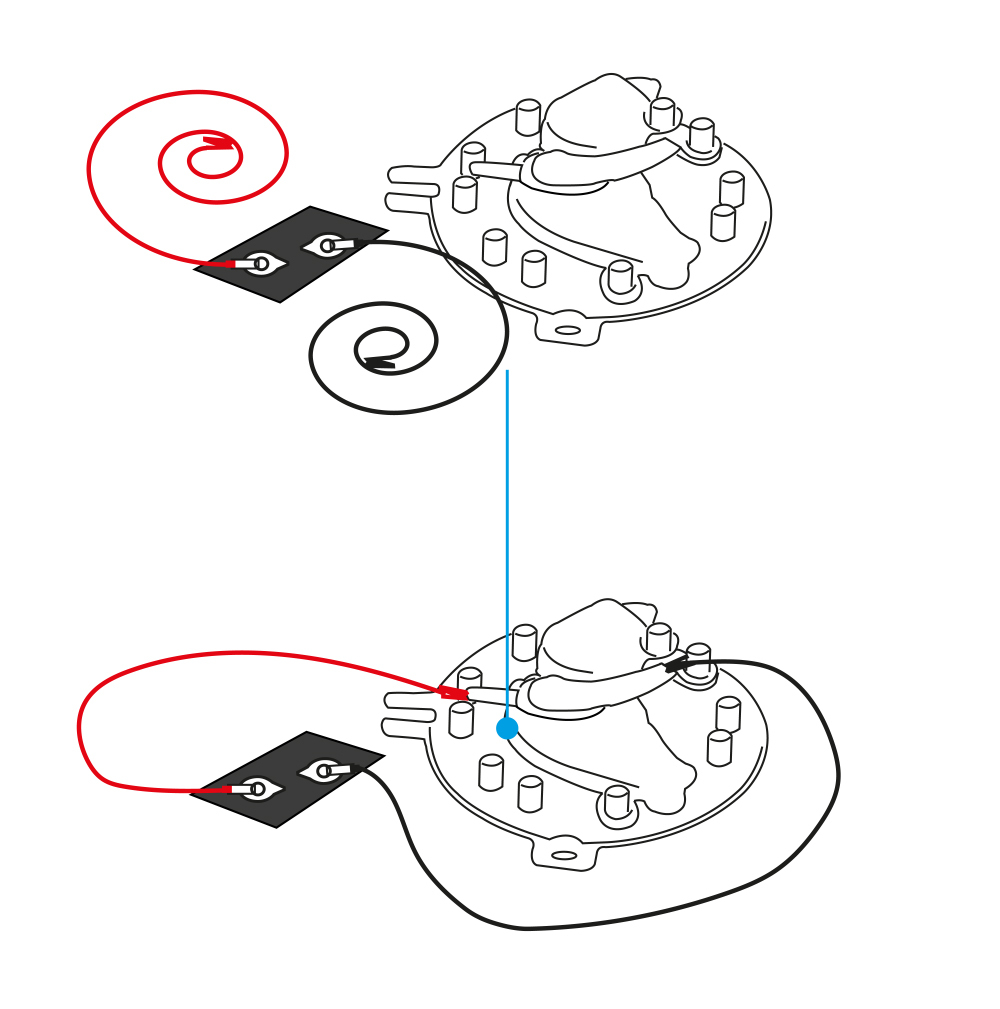

Attach the crocodile clips. Attach the red crocodile clip to the tab at the top of the cholecystectomy model. Attach the black crocodile clip to the bottom of the cholecystectomy model onto the hydrogel tissue.

Step 6

Step 7

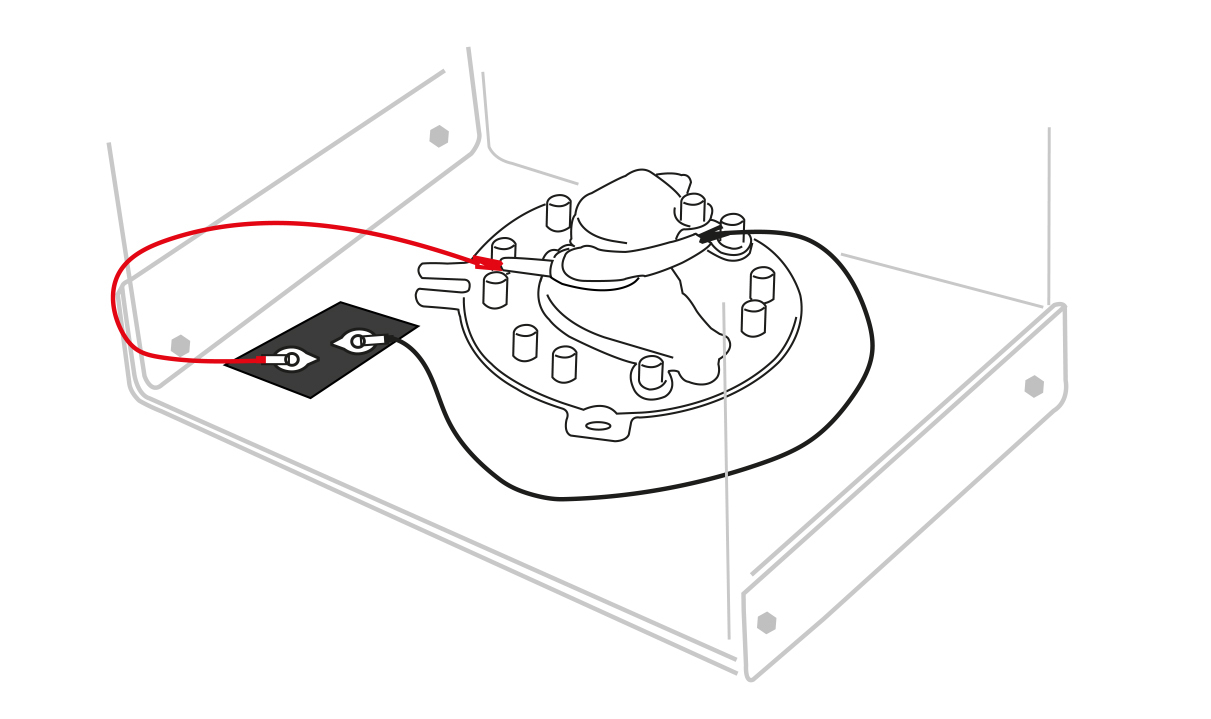

Final placement. Once assembled, place the complete system either on a desktop or on the base of your box trainer.

Step 7

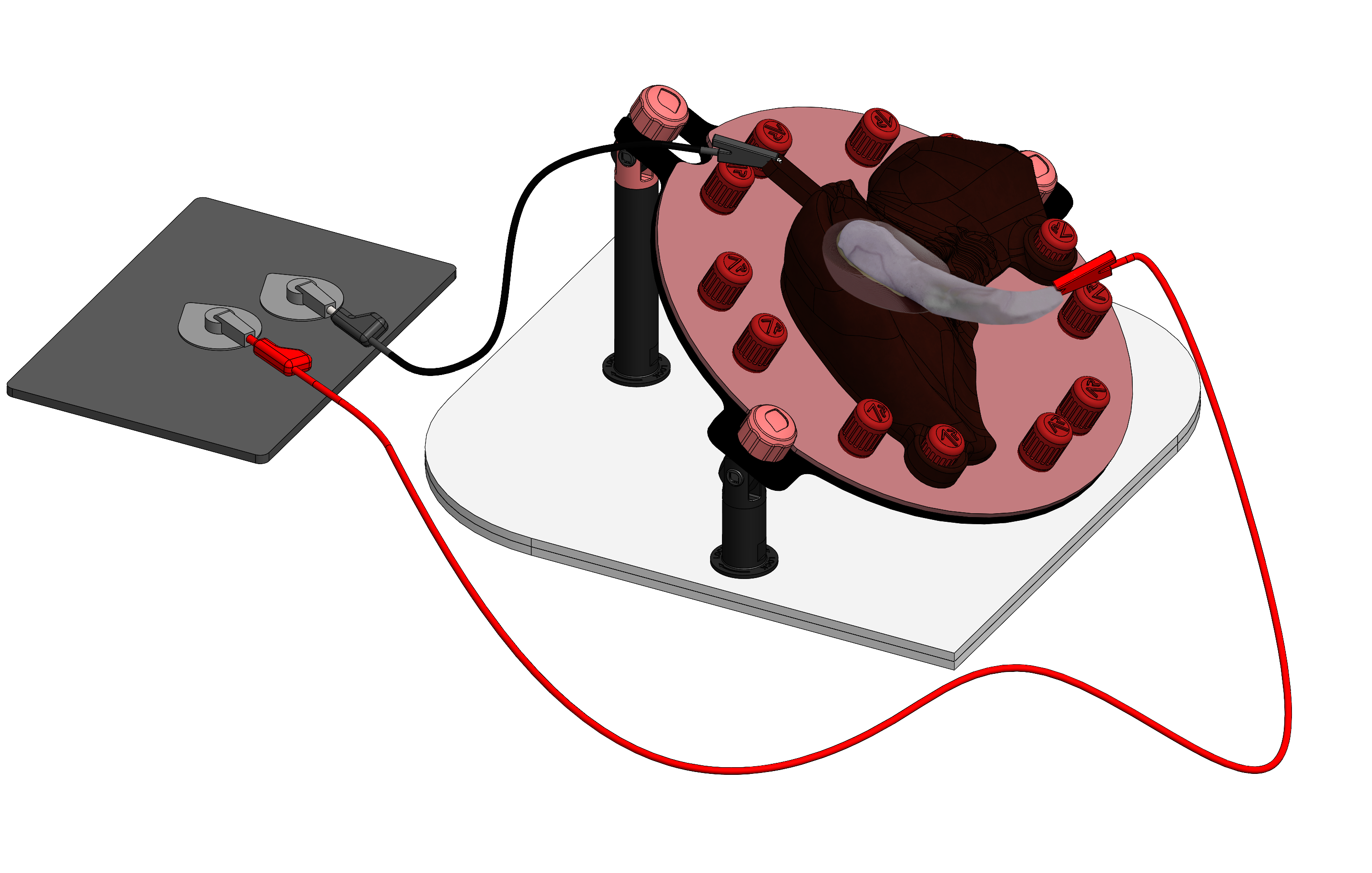

Step 8 - Angled Base Plate Setup

Robotic assembly - Assembly instructions for the fluorescence-enabled, energy compatible 'synthetic cadaver' for robotic cholecystectomy training.

Step 8 - Alternative Angled Base Plate Setup

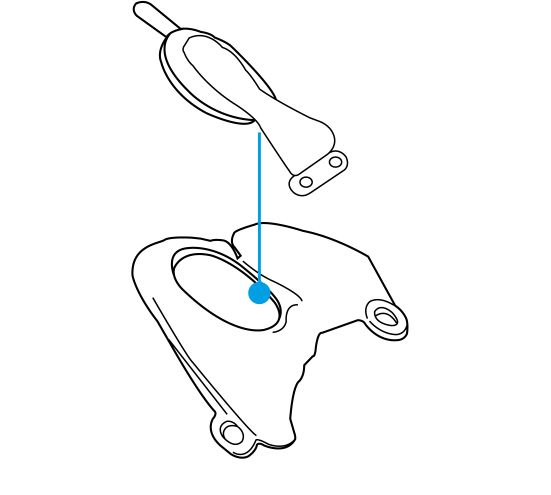

Step 9

Insert the model and puck. Take the cholecystectomy model and puck. Insert both into the recess within the liver model, ensuring the spine pierces the liver model. Ensure the tab on the puck is facing upward, away from the liver model.

Step 9

Step 10

Mount the assembly. Place the cholecystectomy model, puck, and liver model onto the Model Mounting Jig (MMJ) as shown. Lay the assembled unit to the side on a desktop.

Step 10

Step 11

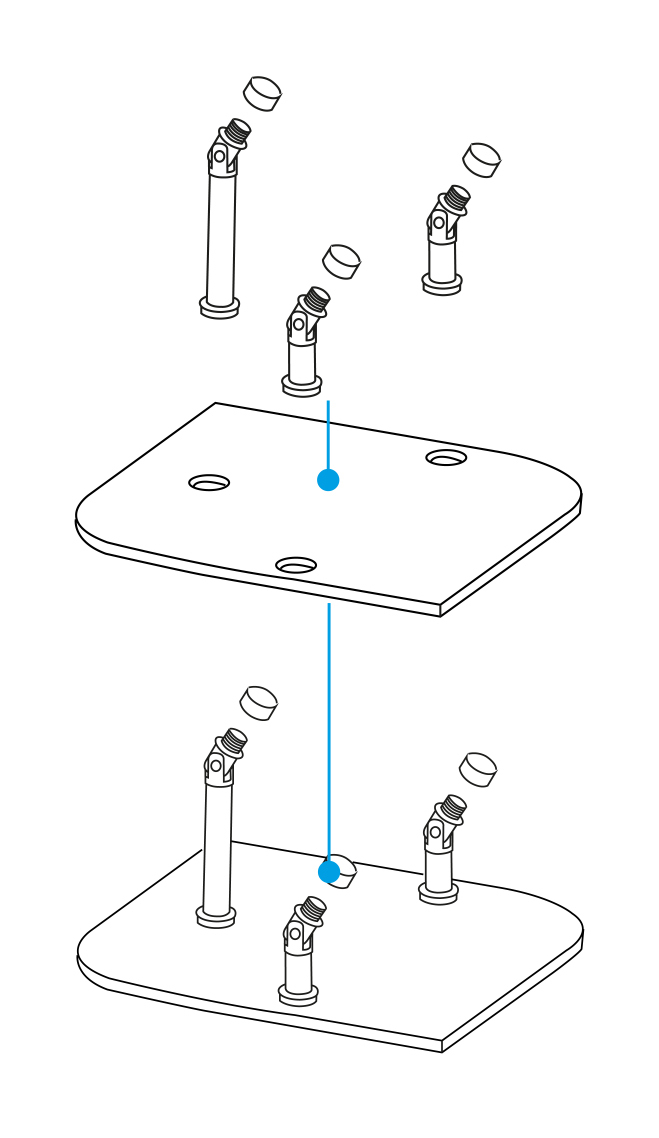

Construct the model positioning system (MPS). Take the three pillars and insert them into the base plate as shown. Remove the three red caps from the tops of the pillars.

Step 11

Step 12

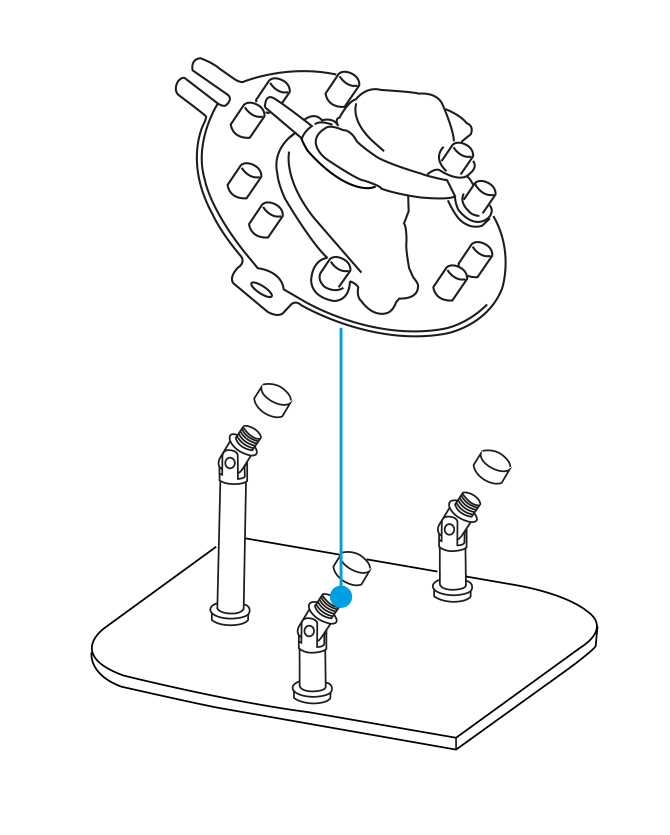

Combine both MMJ and MPS. Place the assembled MMJ and model onto the pillars as shown. Screw the red caps back on securely, ensuring the MMJ slopes downward, with the tallest pillar positioned at the back of the MPS.

Step 12

Step 13

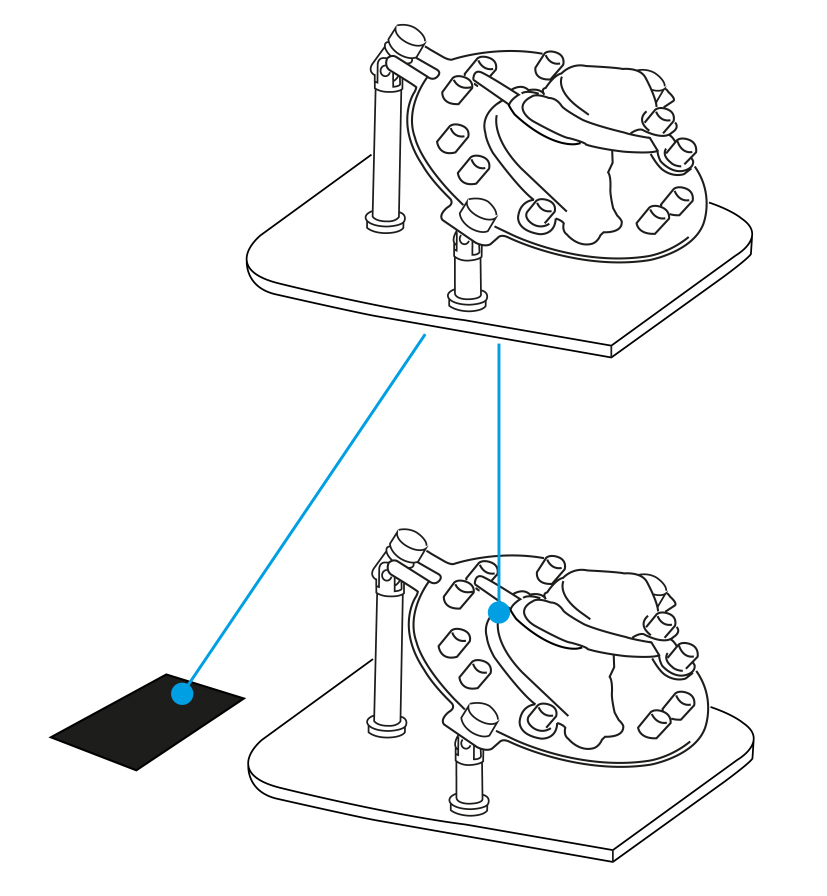

Prepare the workspace. Lay the assembled model and MMJ flat on the desktop. Position the LABrange Monopolar grounding pad next to the assembled MMJ.

Step 13

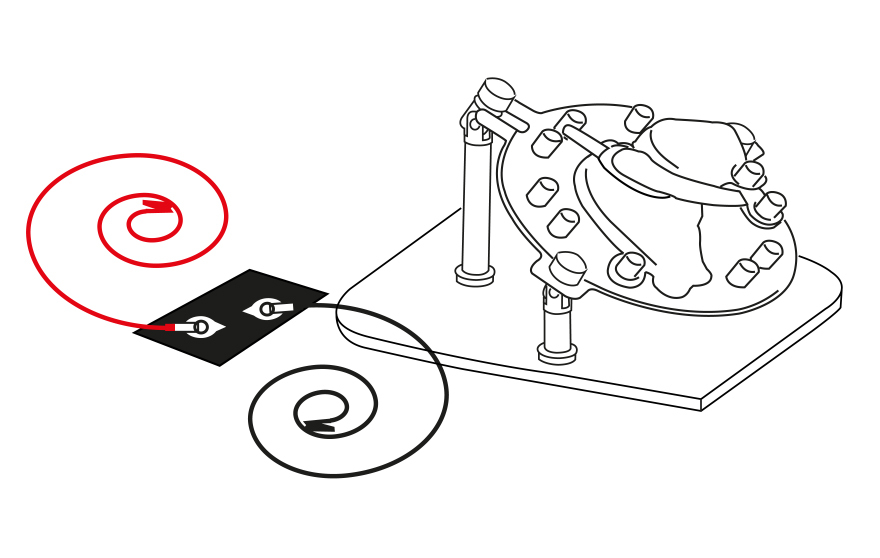

Step 14

Connect the energy pads. Connect the LABrange energy pads to the grounding pad as shown in the diagram.

Step 14

Step 15

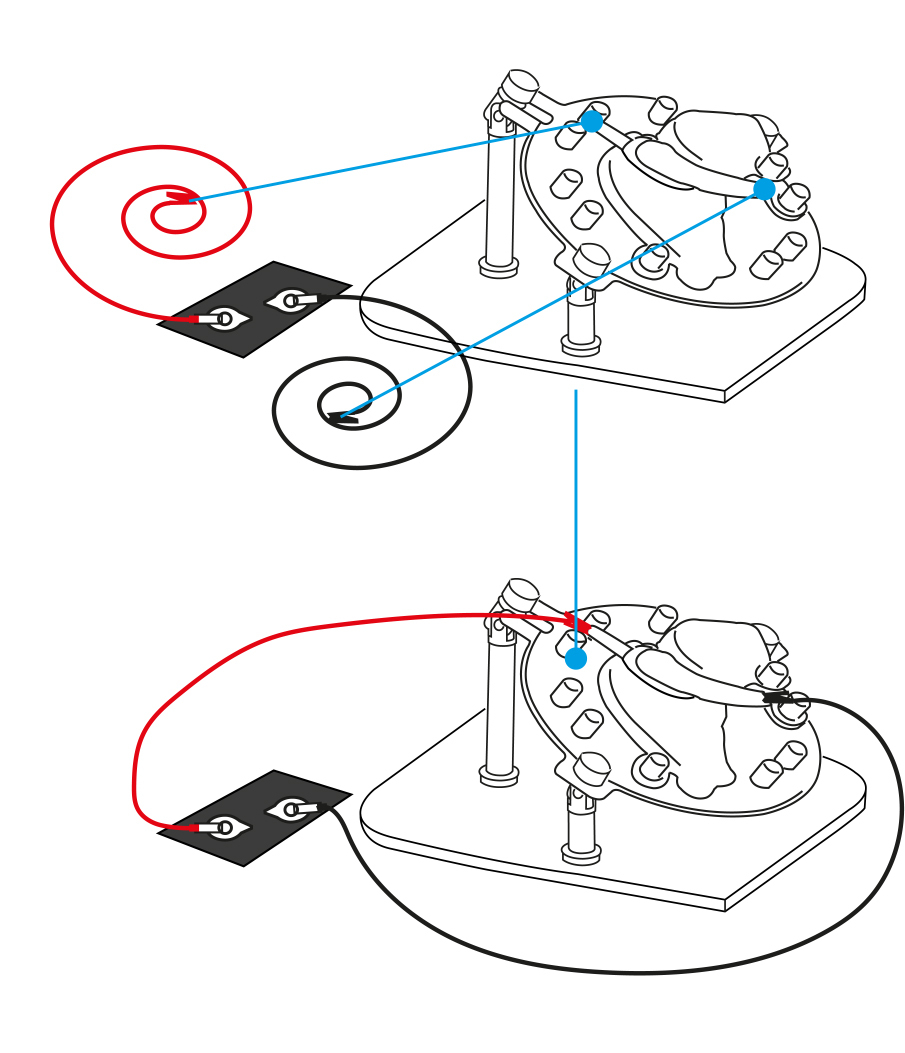

Attach the crocodile clips. Attach the red crocodile clip to the tab at the top of the cholecystectomy model. Attach the black crocodile clip to the bottom of the cholecystectomy hydrogel tissue.

Step 15
