EndoAR Setup Manual

Welcome to the step-by-step assembly guide for the EndoAR.

Before you begin, take a moment to review the package's contents and acquaint yourself with the included components. The following content has been crafted to provide you with all the insights required to transform individual parts into a functional and invaluable tool for honing your surgical skills.

Step 1

Configuration for LAB Range Colon Models

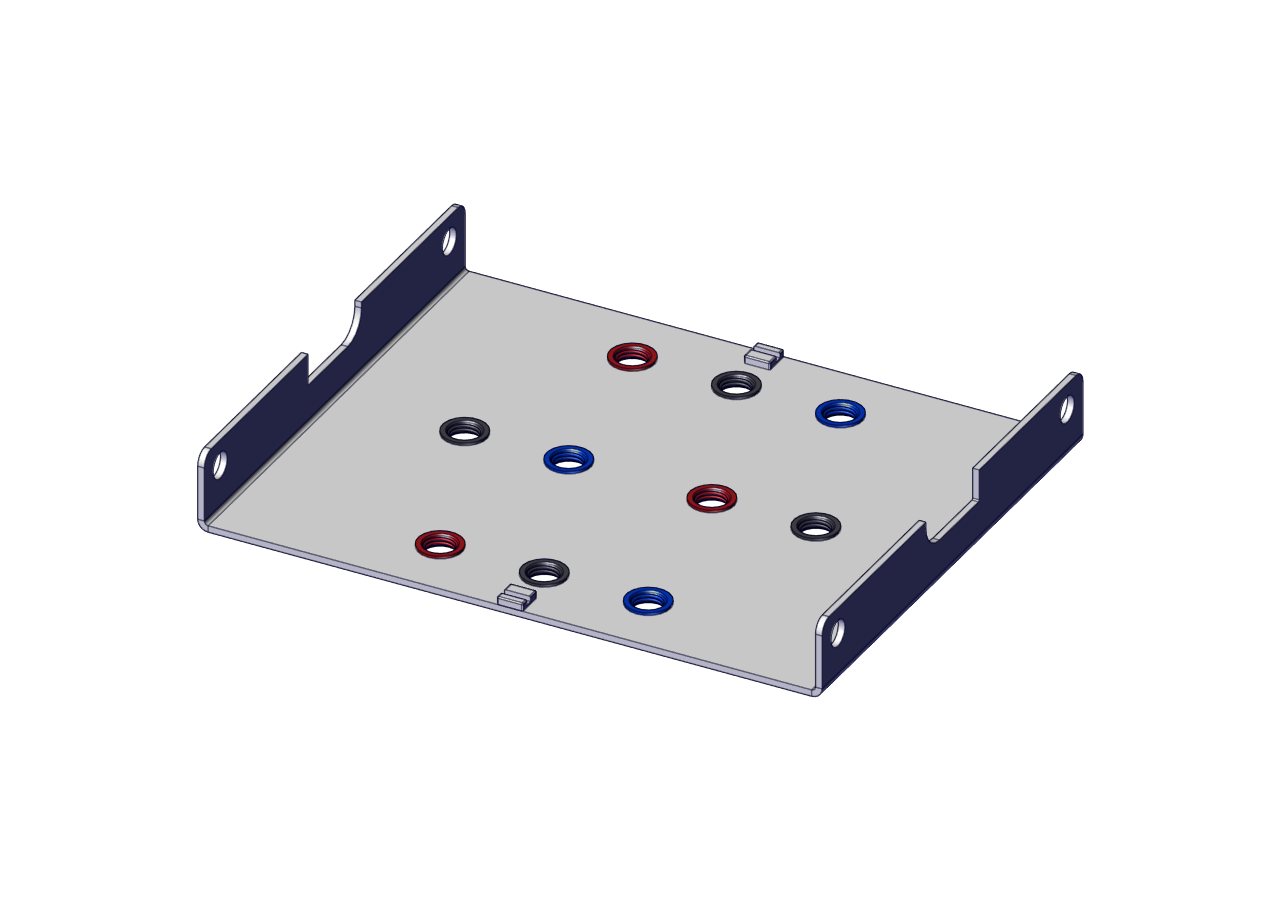

Place 00002203 base plate on a secure, flat surface.

Step 2

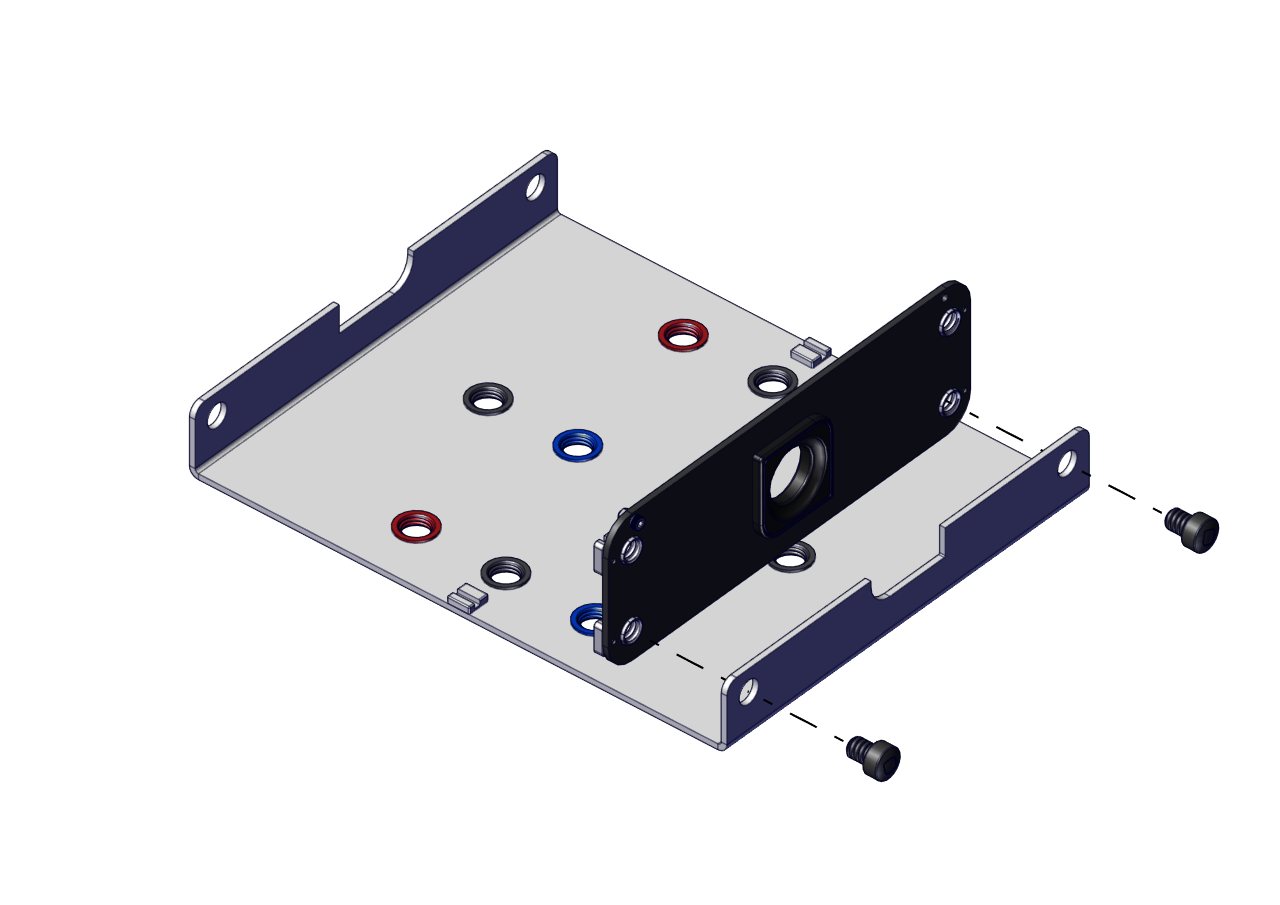

Using the image as a guide, attach 00002609 front panel with 2x 00000546 Lock nuts.

Step 3

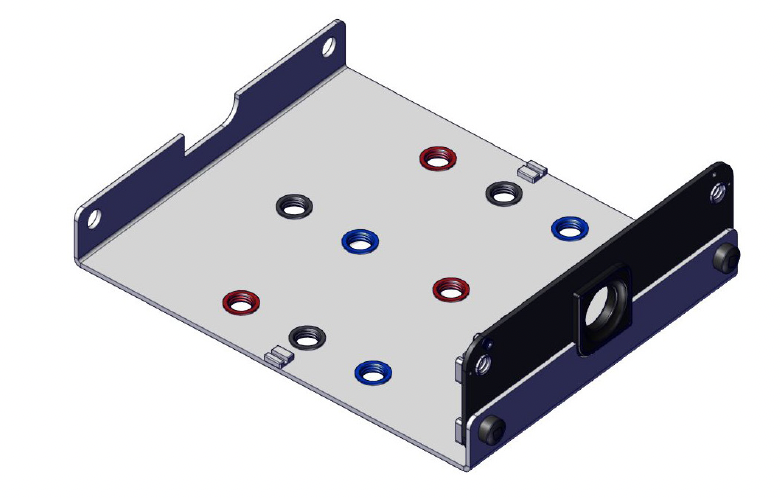

Ensure 2x 00000546 Lock nuts are hand tightened.

Step 4

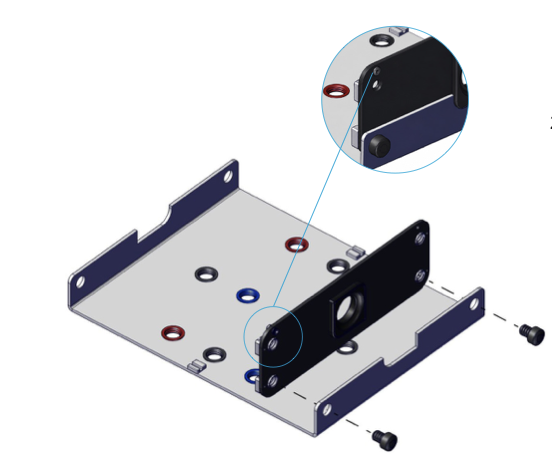

Repeat steps 2 and 3 with 00001785 Rear panel as shown in the image.

Ensure the cap screw is at the top of the panel.

Step 5

Once the base elements are secure move onto the 00002890 Pillars.

Step 6

Insert the 4x 00002890 Pillars and twist lock in place as shown.

Step 7

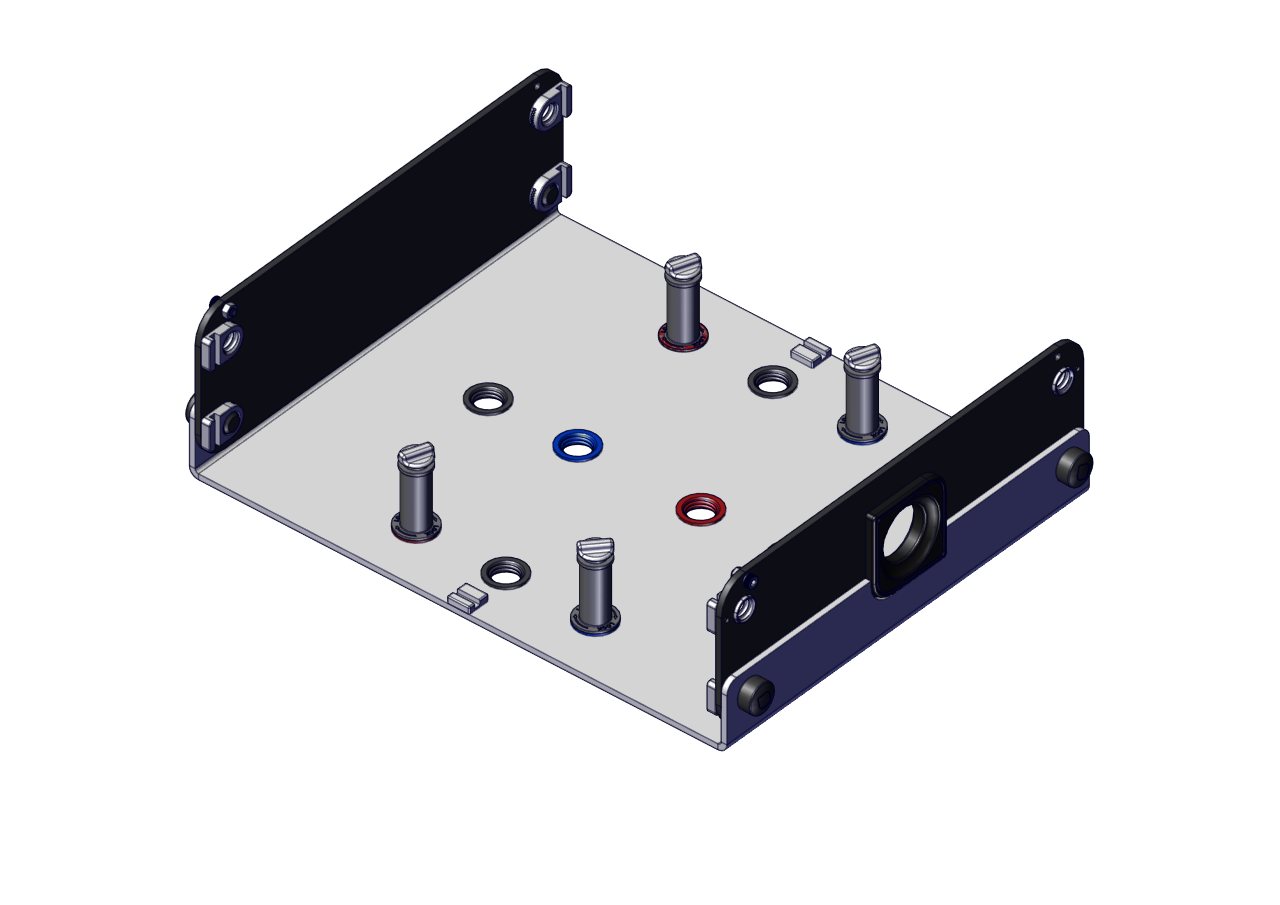

Screw the 00002890 Pillars hand-tight to ensure they are secure.

Step 8

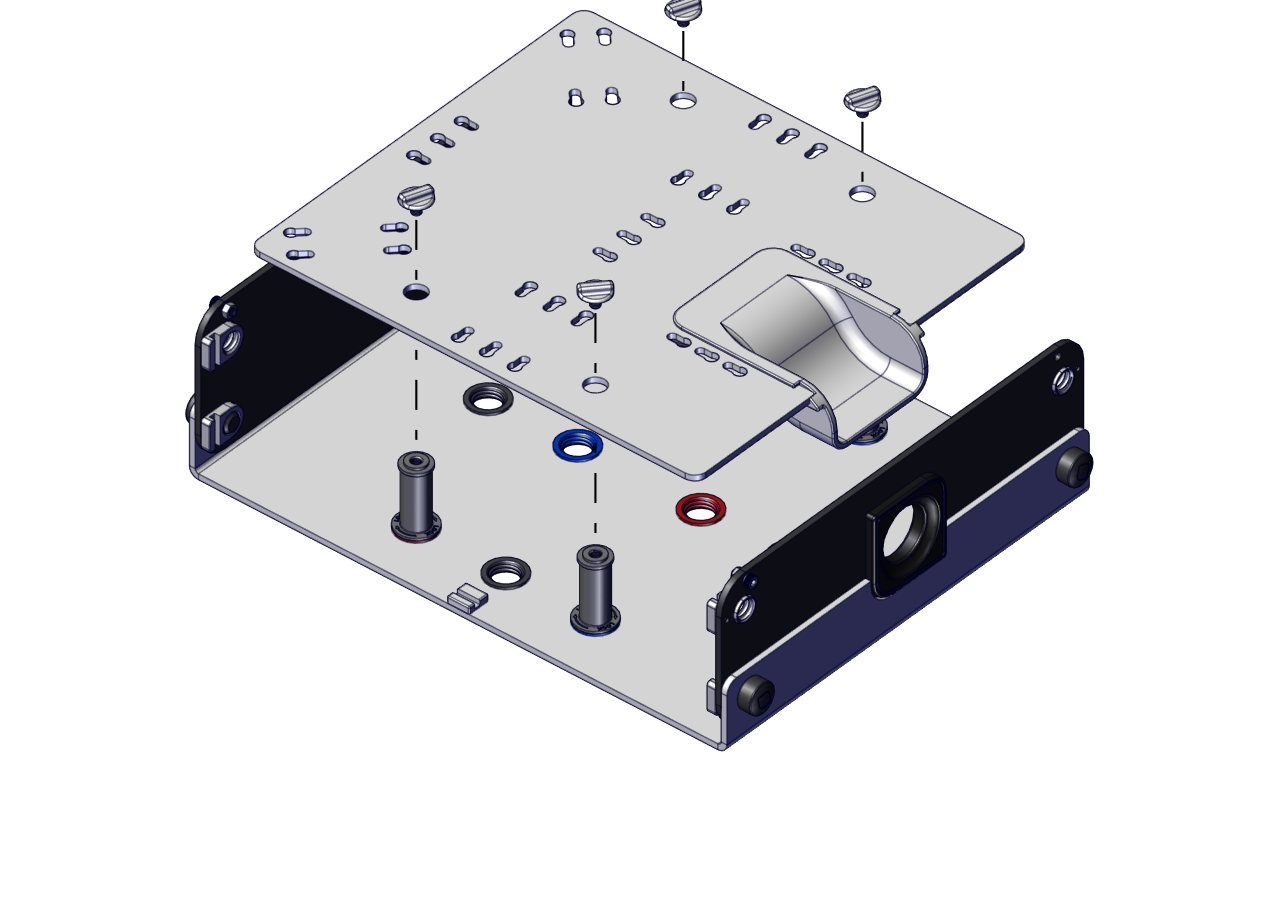

Unscrew and remove the 4x 00002890 Pillar thumbscrews. Position the 00002828 Modular tissue mounting plate over the 4x 00002890 Pillars, aligning the pillars indicated, then refit the Pillar thumbscrews.

Step 9

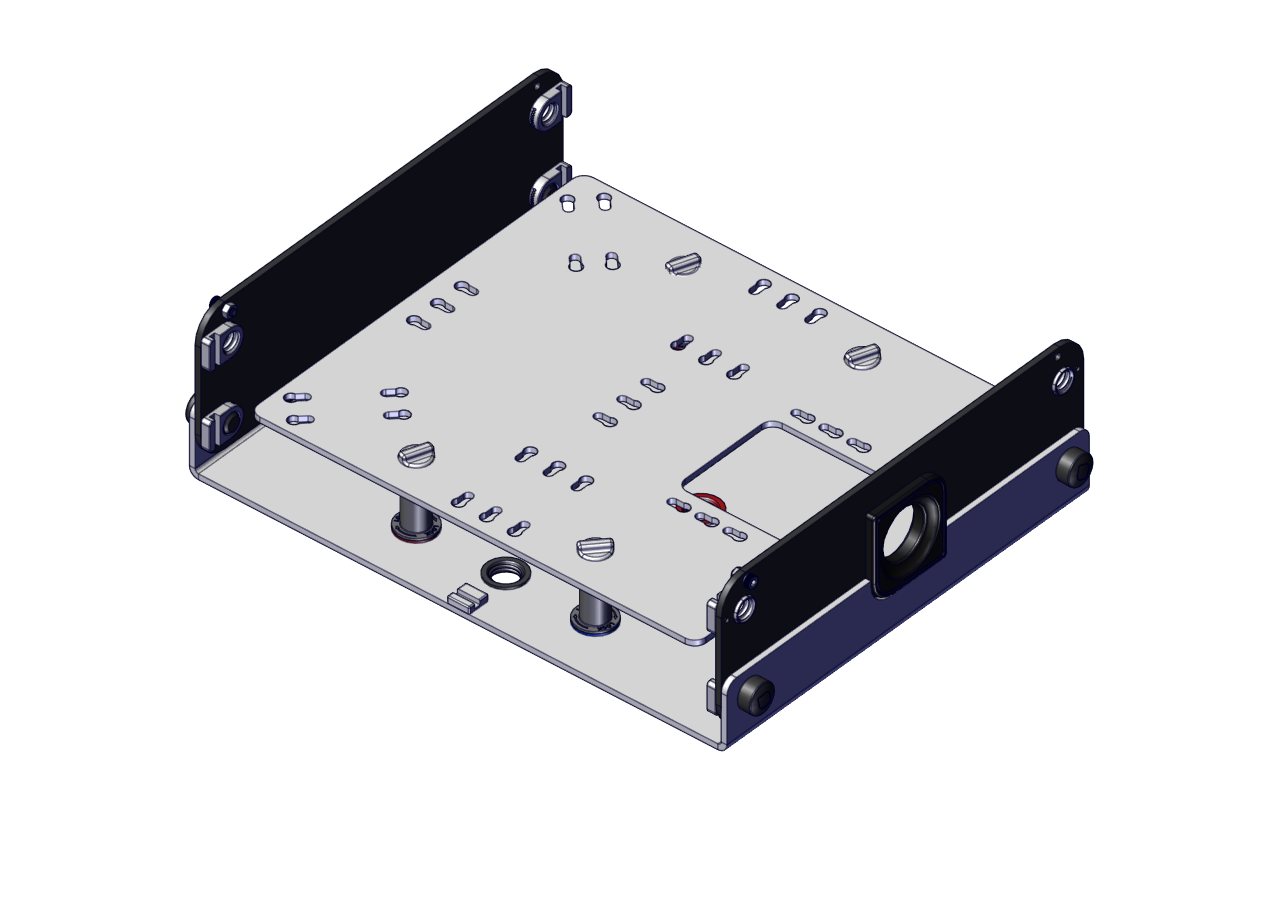

Hand tighten the Pillar thumbscrews to secure the model plate.

Step 10

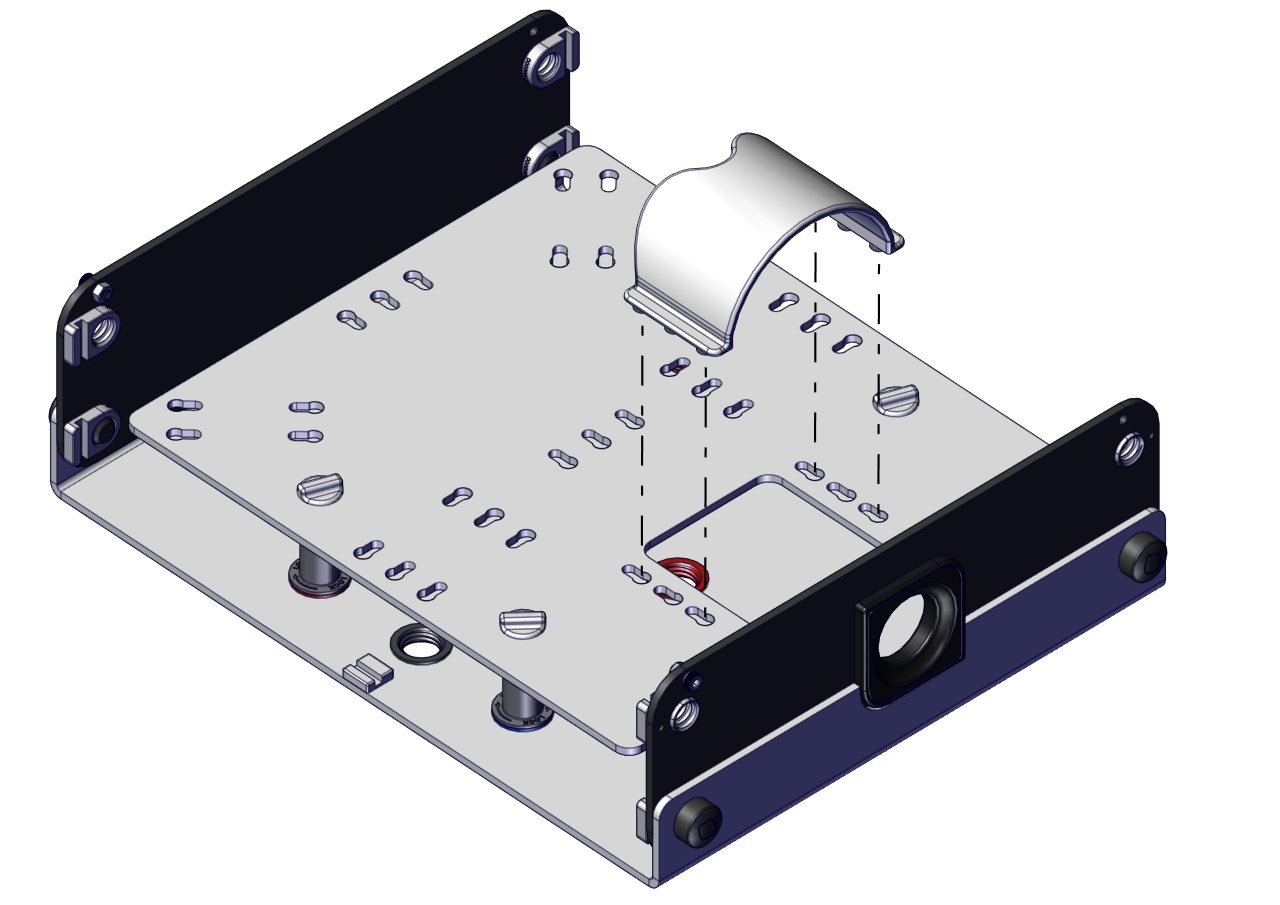

Align the 1x 00002946 Pelvic bridge brim above the 6 slots as shown.

Step 11

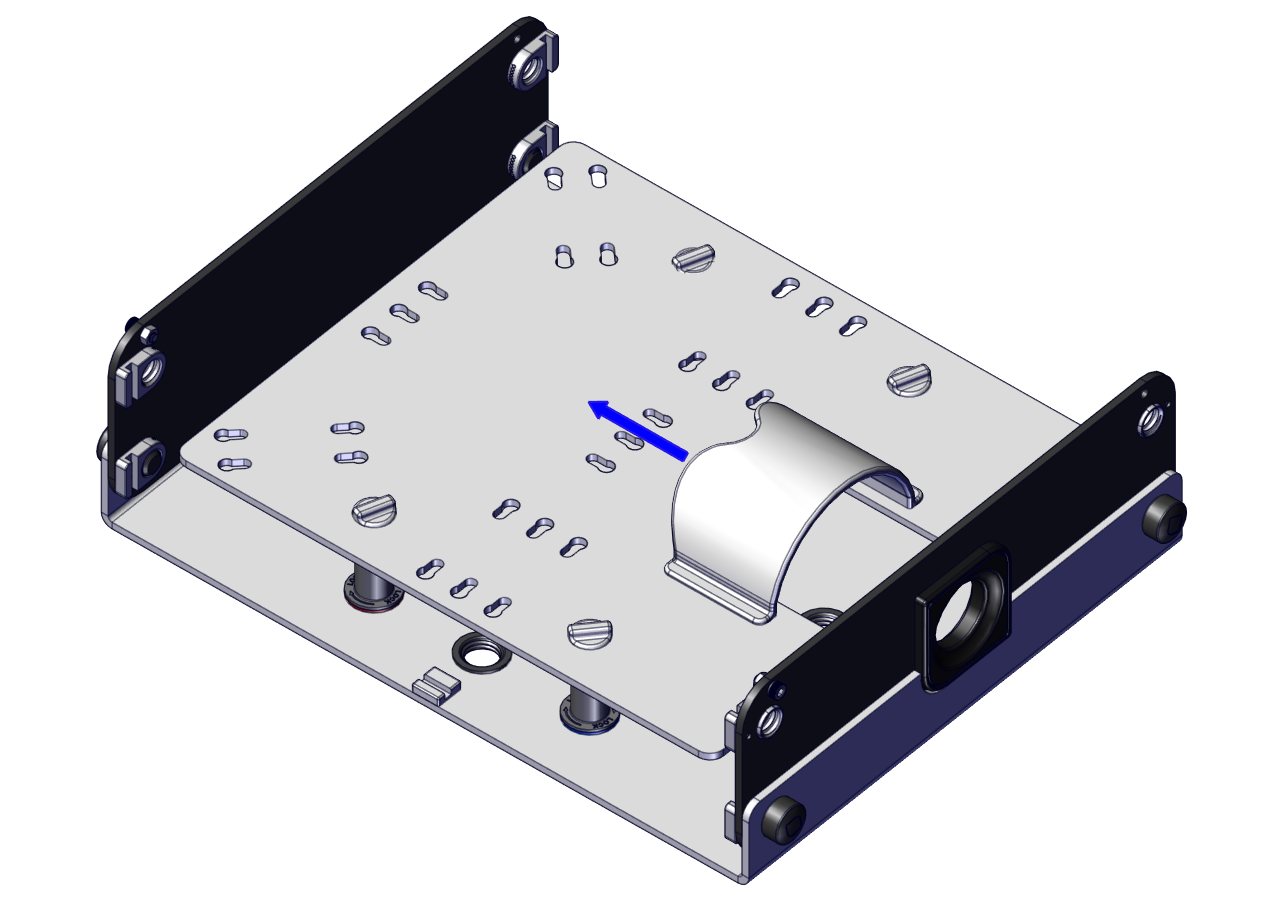

Insert the 00002946 Pelvic bridge brim and push to lock it in position and attach the 2x 00002945 Mag lock for pelvic brim on the underside of the 00002828 Modular tissue mounting plate.

Step 12

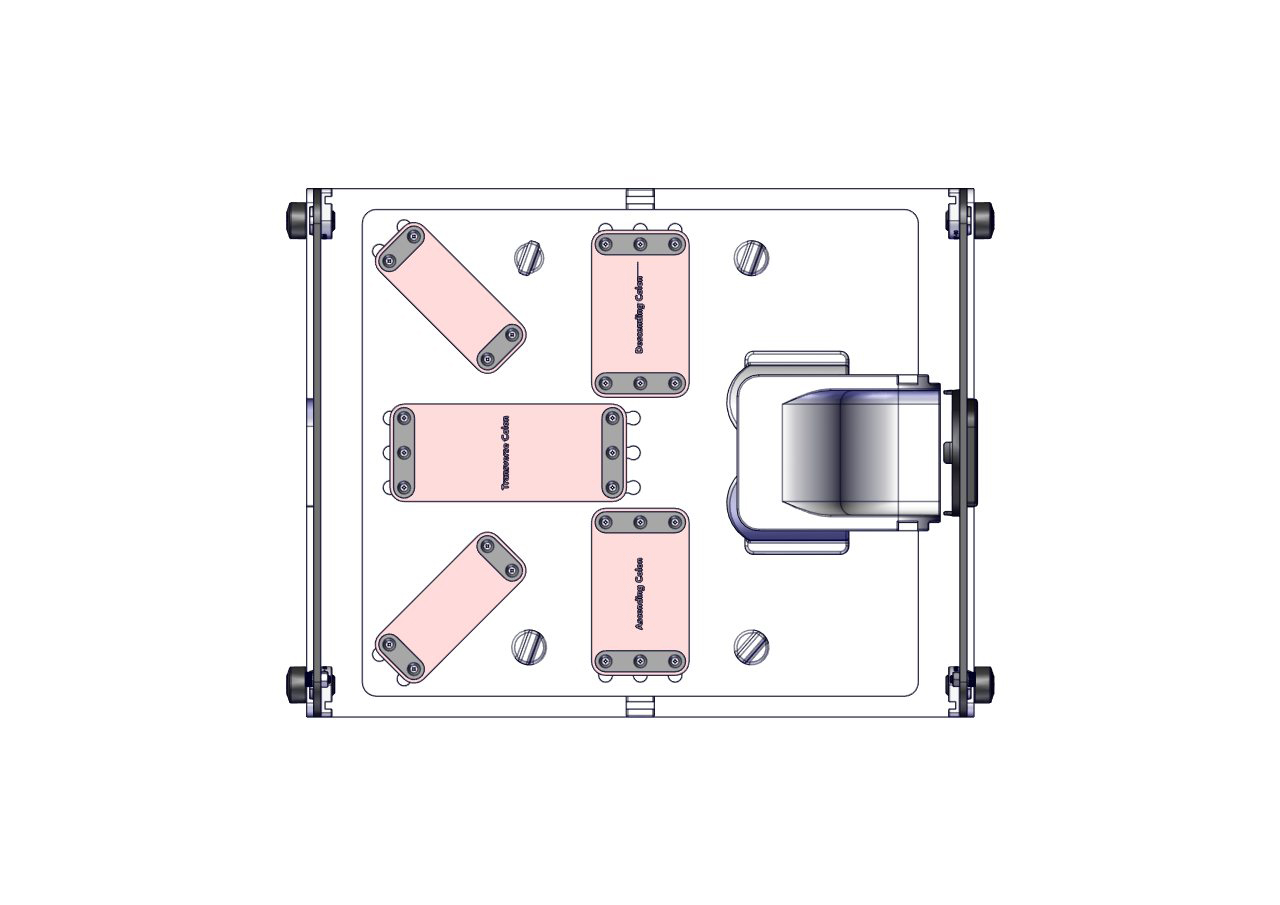

The next few sections will show you how to attach the colon straps to the model mounting plate. Be sure to place each colon strap in the correct position as shown in the diagram.

The colon straps can be fitted with the model mounting plate in position or it can be removed to make assembly easier.

Just unscrew the thumbnail screws and lift the plate out.

Step 13

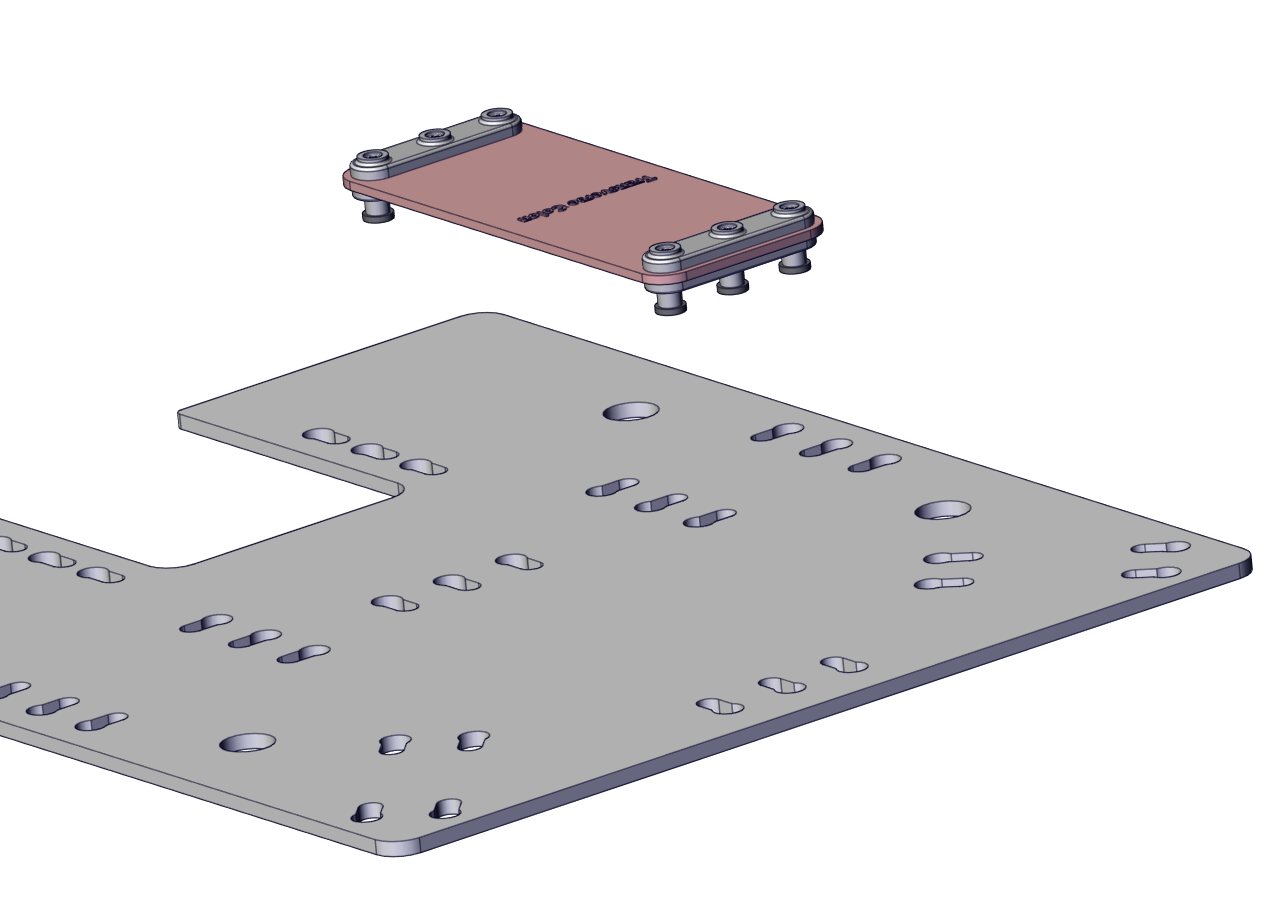

Referring to the diagram in step 12, insert the 00002857 Transverse colon strap in the correct position.

Step 14

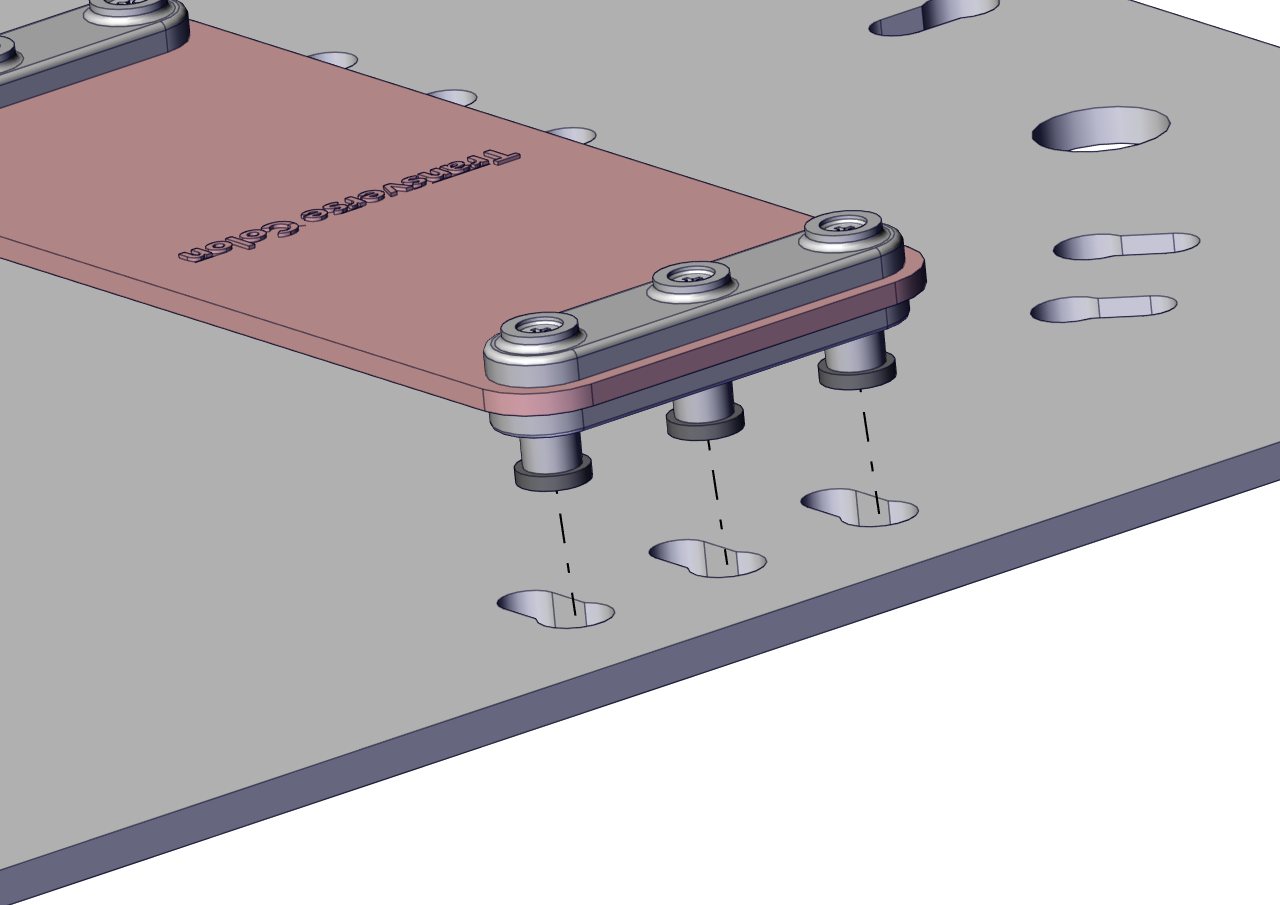

Align the magnetic probes on the underside of the 00002857 Transverse colon strap with the correct holes in the 00002828 Modular tissue mounting plate.

Step 15

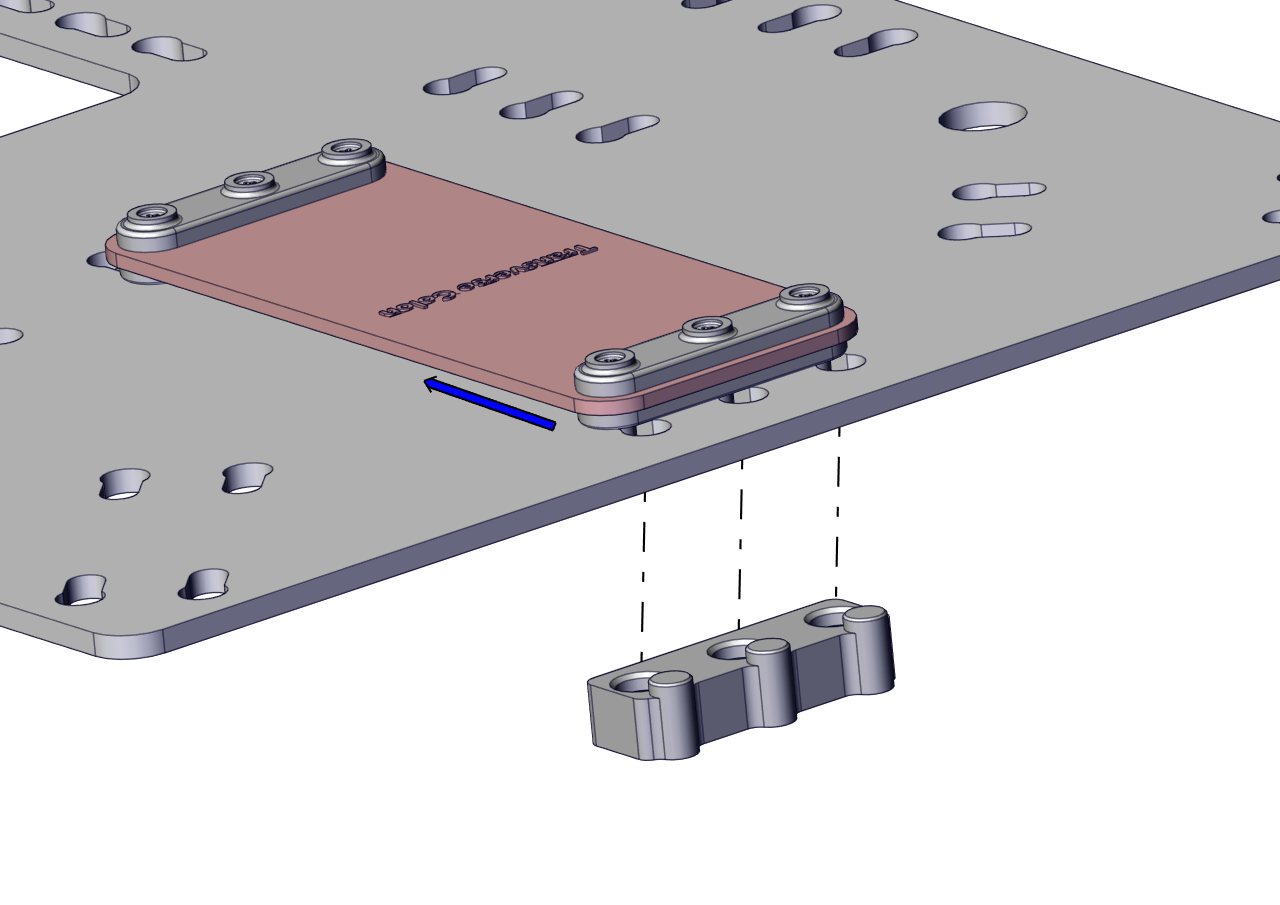

Slide the magnetic probes til the lock in position. Then attach a 00002945 Mag lock from the underside of the 00002828 Modular tissue mounting plate.

Step 16

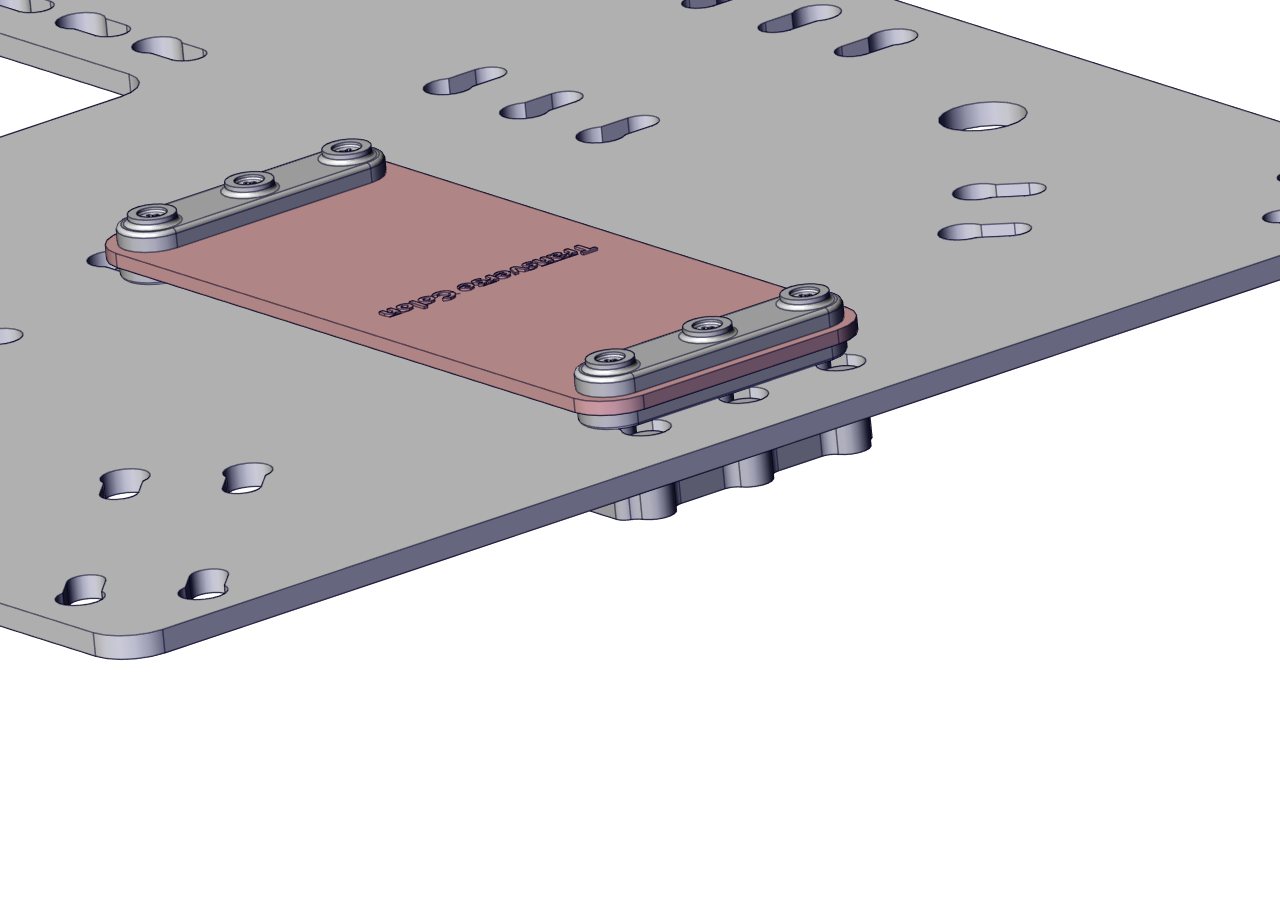

Repeat step 15 with the other end of the 00002857 Transverse colon strap.

Step 17

Then repeat steps 13 -16 with each of the following items:

00002858 1x Descending colon strap

00002859 1x Ascending colon strap

00002877 1x Corner colon Strap

Step 18

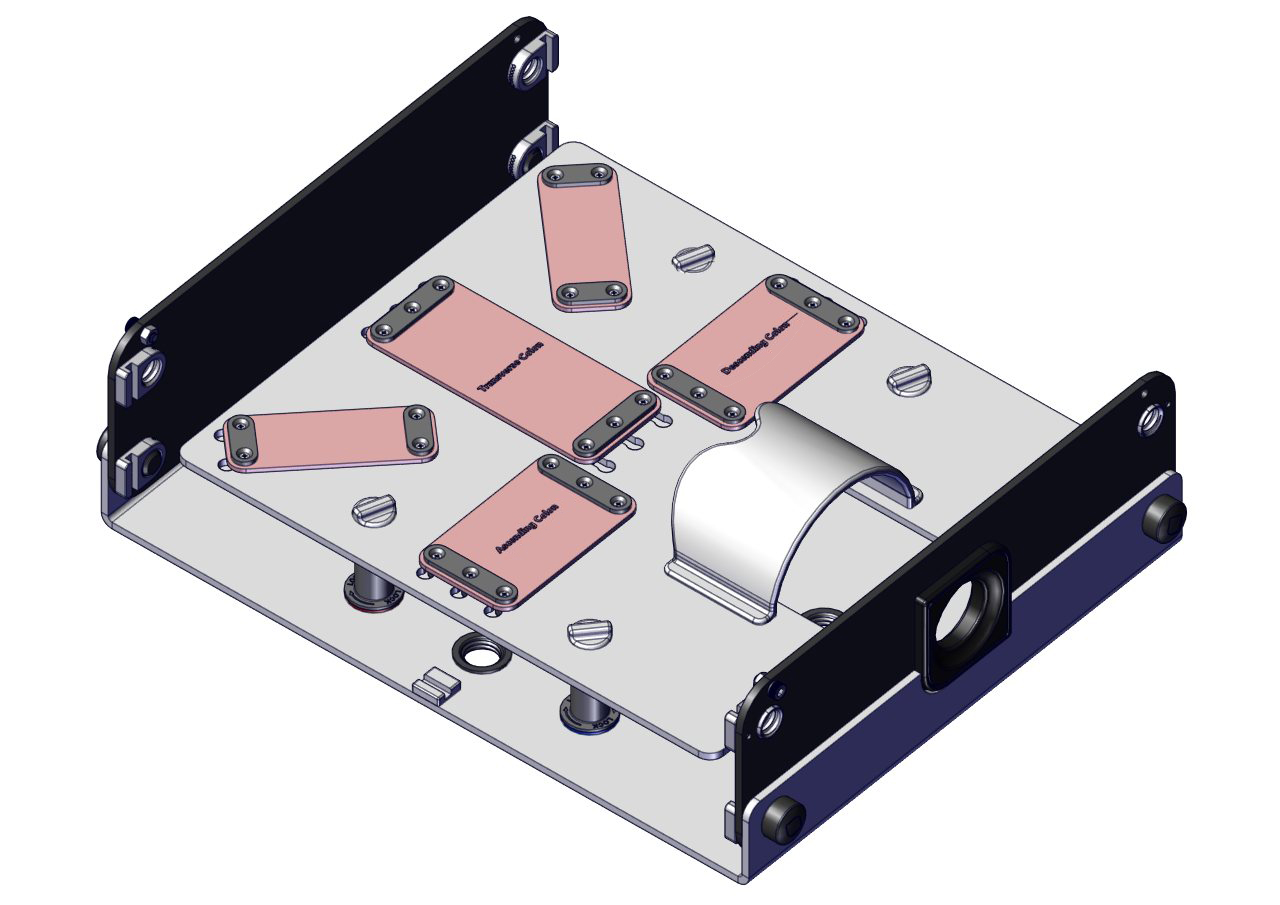

The 00002828 Modular tissue mounting plate is now fully assembled and can be reattached to the inside of the simulator.

Following steps 8 and 9.

Step 19

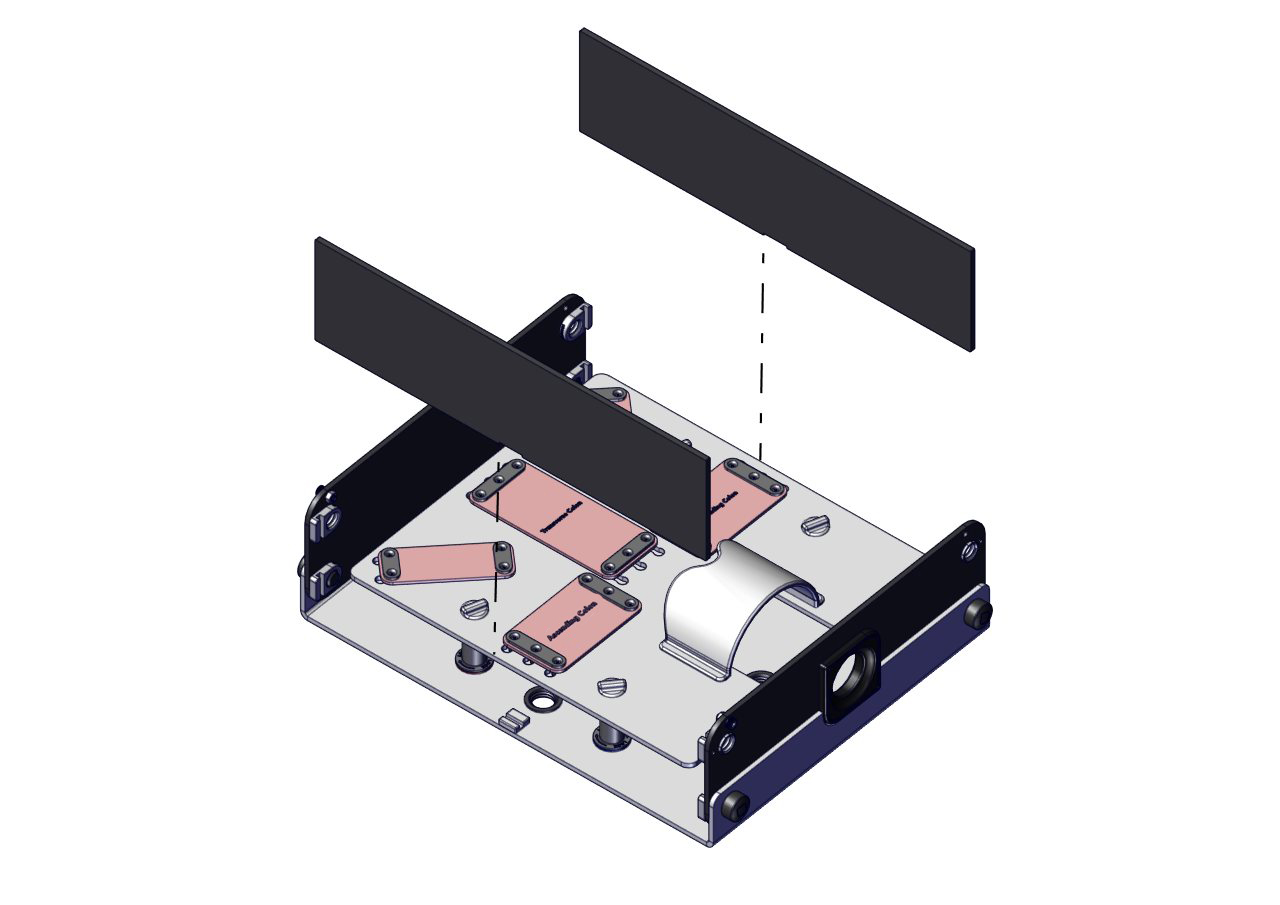

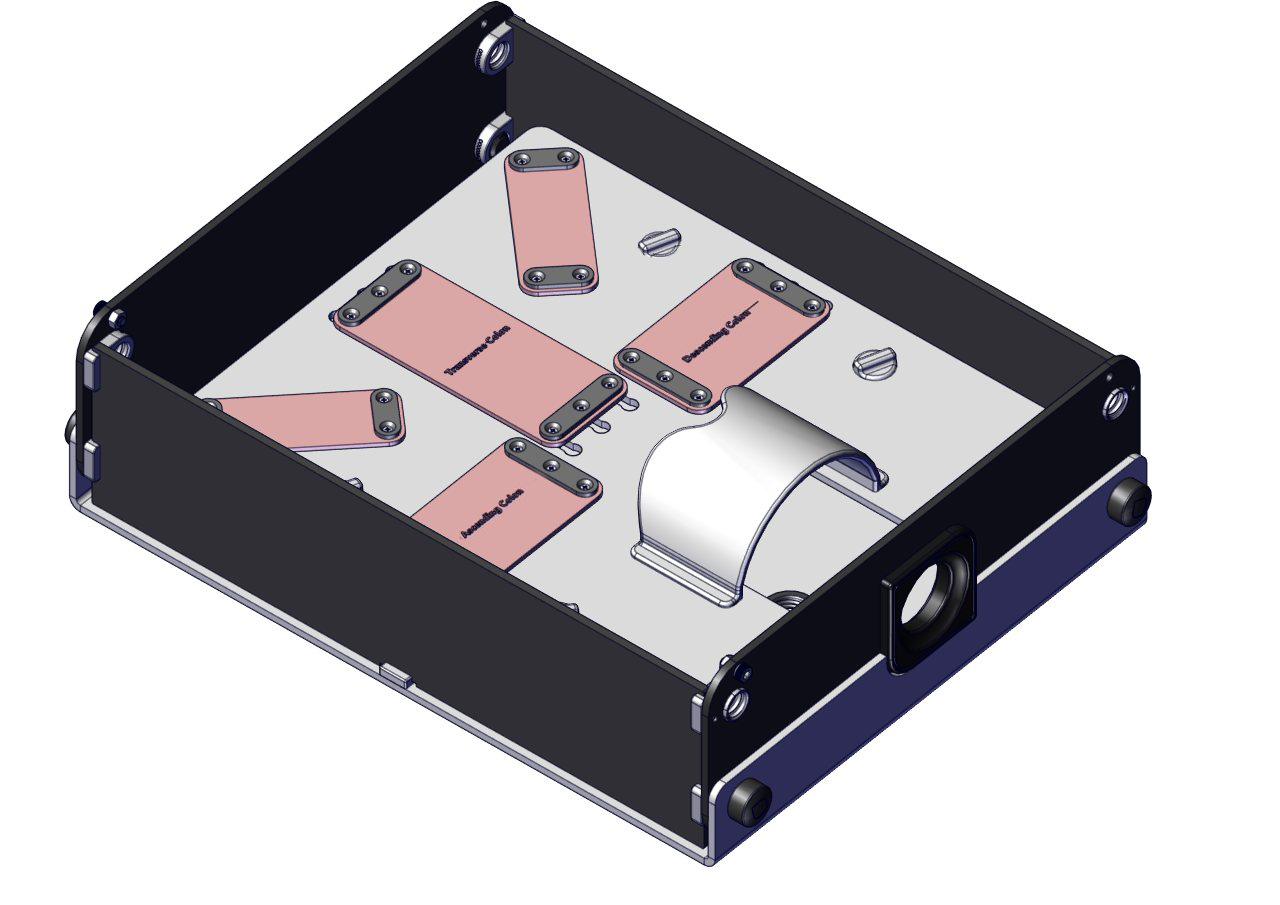

Slot the side 2x 00002756 side panels in place.

Step 20

The side panels do not require any bolts to hold them in place.

Step 21

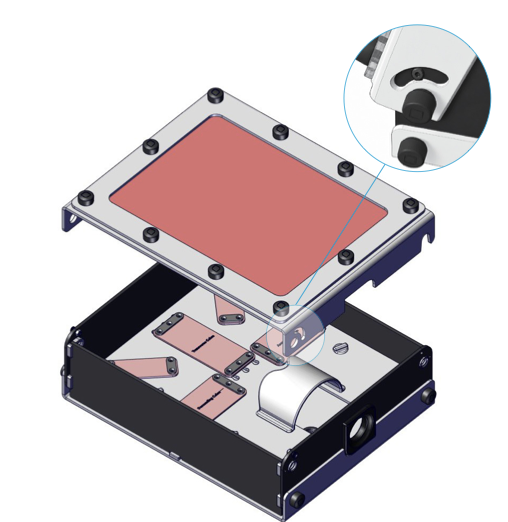

Align the 00002603 Top cover over the base of the simulator ensuring the bolt on the front and rear panel is inserted into the cut-out-arc on the lid.

Step 22

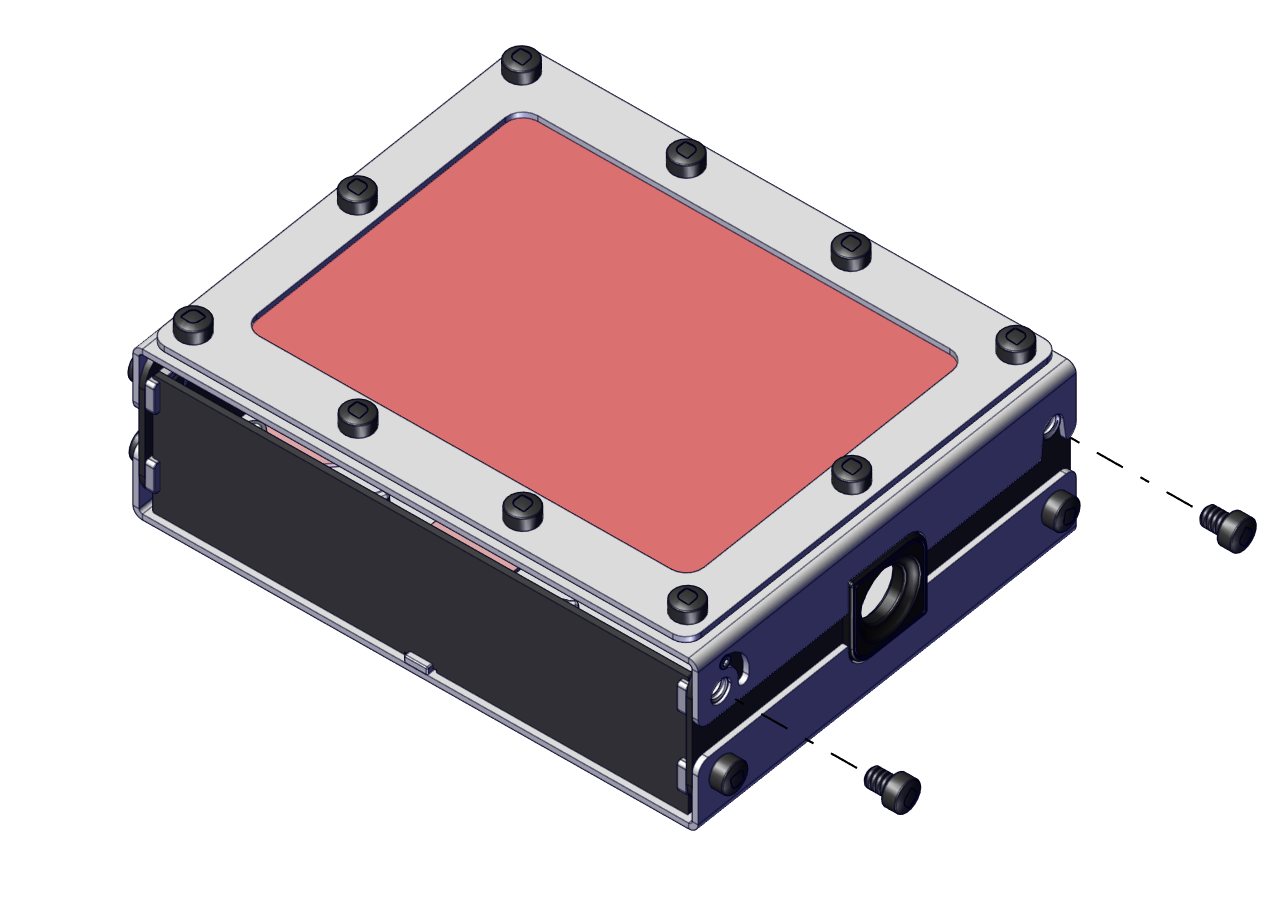

Insert the 4x 00000546 Lock nuts (2x in the front 2 x in the rear) to secure the top cover.

Hand-tighten only. Do not over tighten, as you will need to lift the cover to insert the colon models.

Step 23

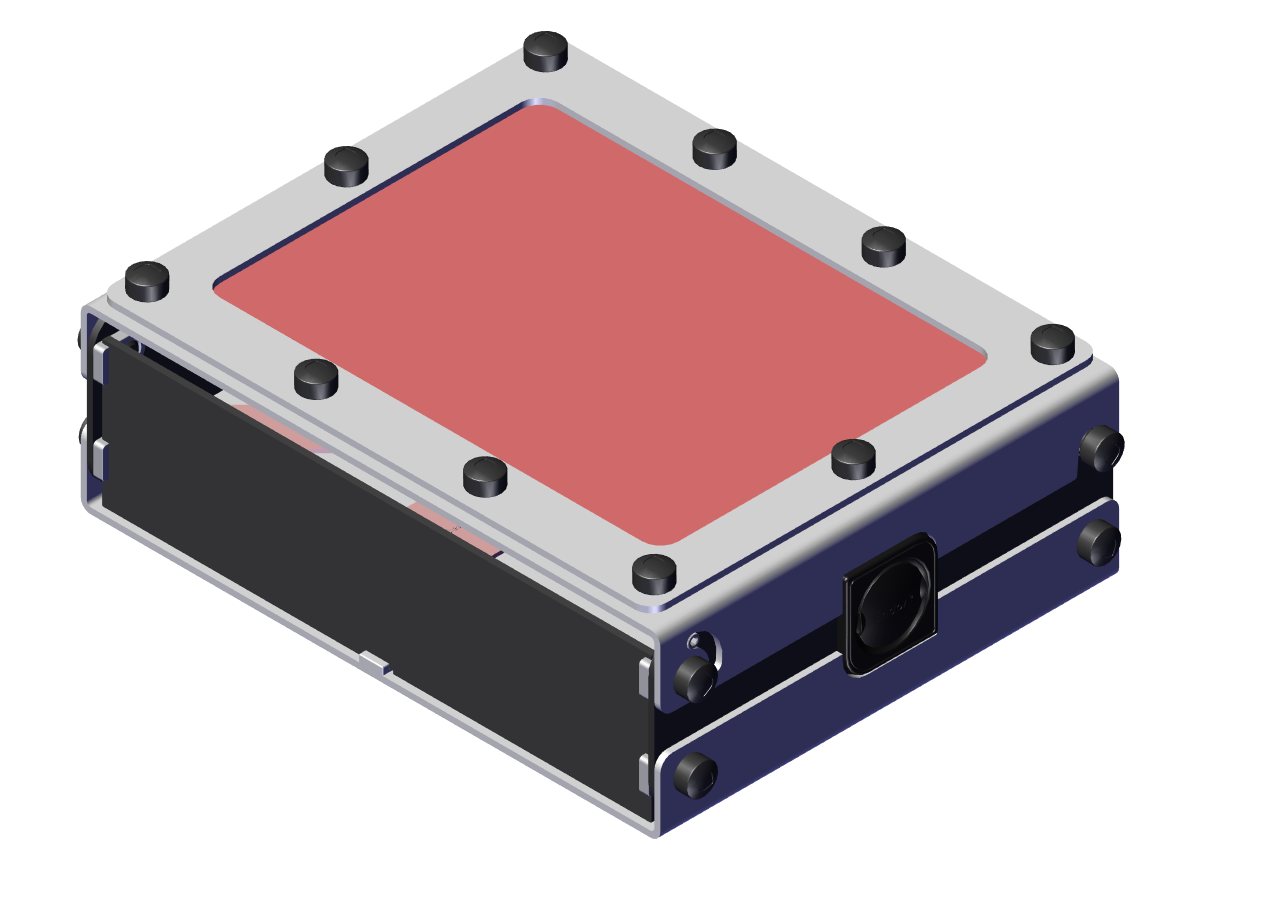

The EndoAR box simulator is now ready to be used with your choice of Lab Range colon models from Inovus Medical.

Setup complete.

Step 24

Preparing EndoAR for BEST tasks.

EndoAR can also be configured for BEST Box skills training. To change configurations, several components must first be removed, as shown in the following steps.

Step 25

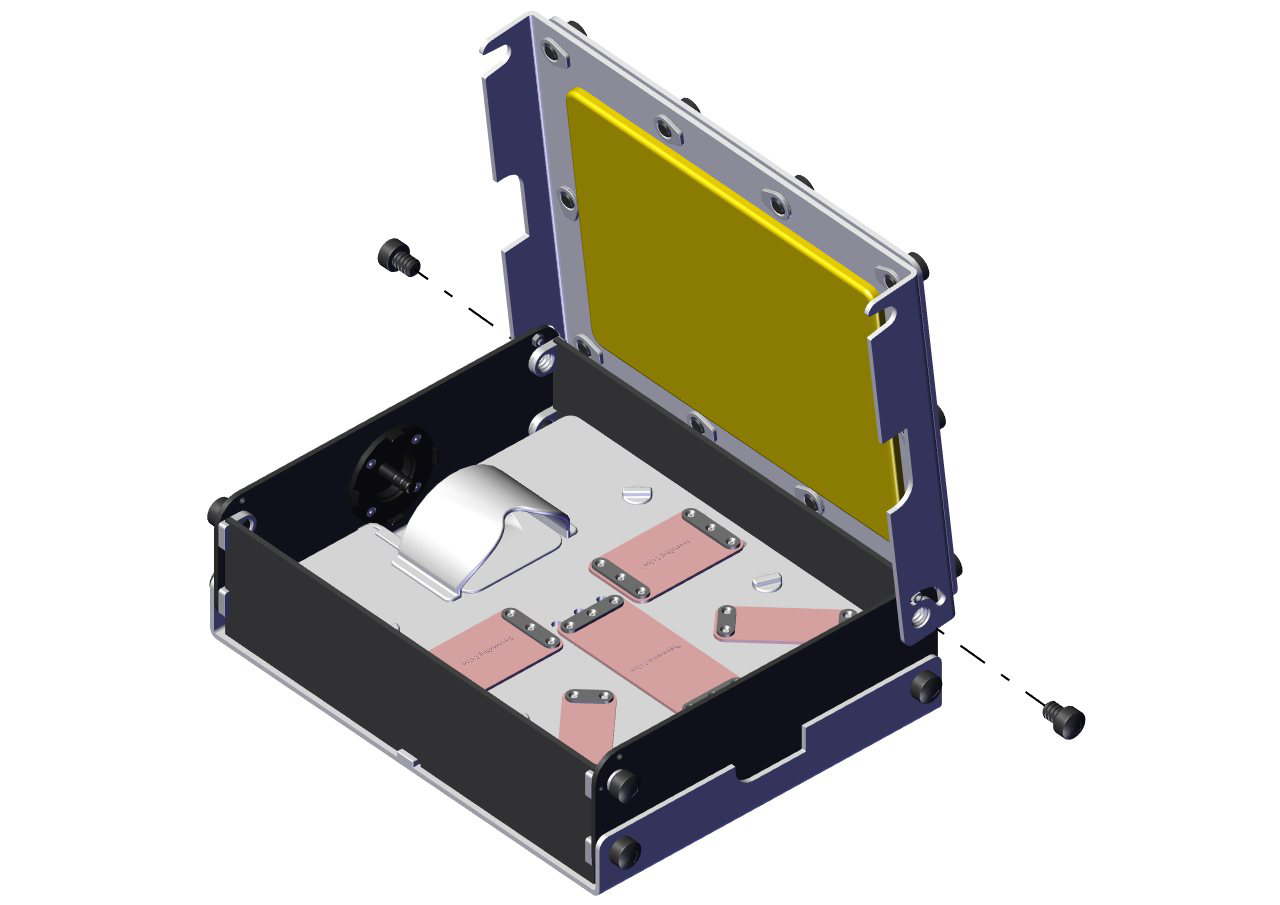

Unscrew the 2x 0000594 Lock nuts as shown in the diagram.

Step 26

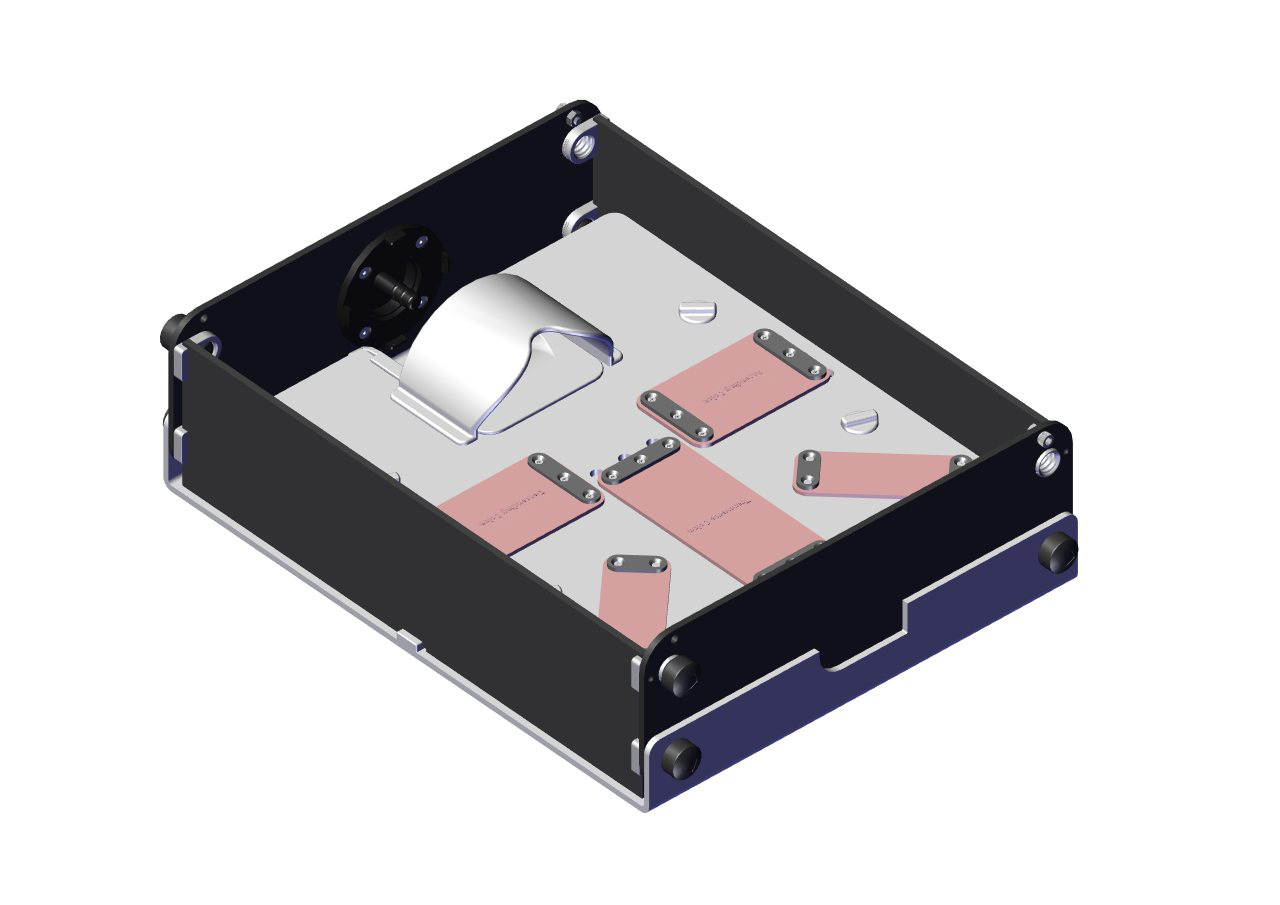

Remove the 00002603 Top cover.

Step 27

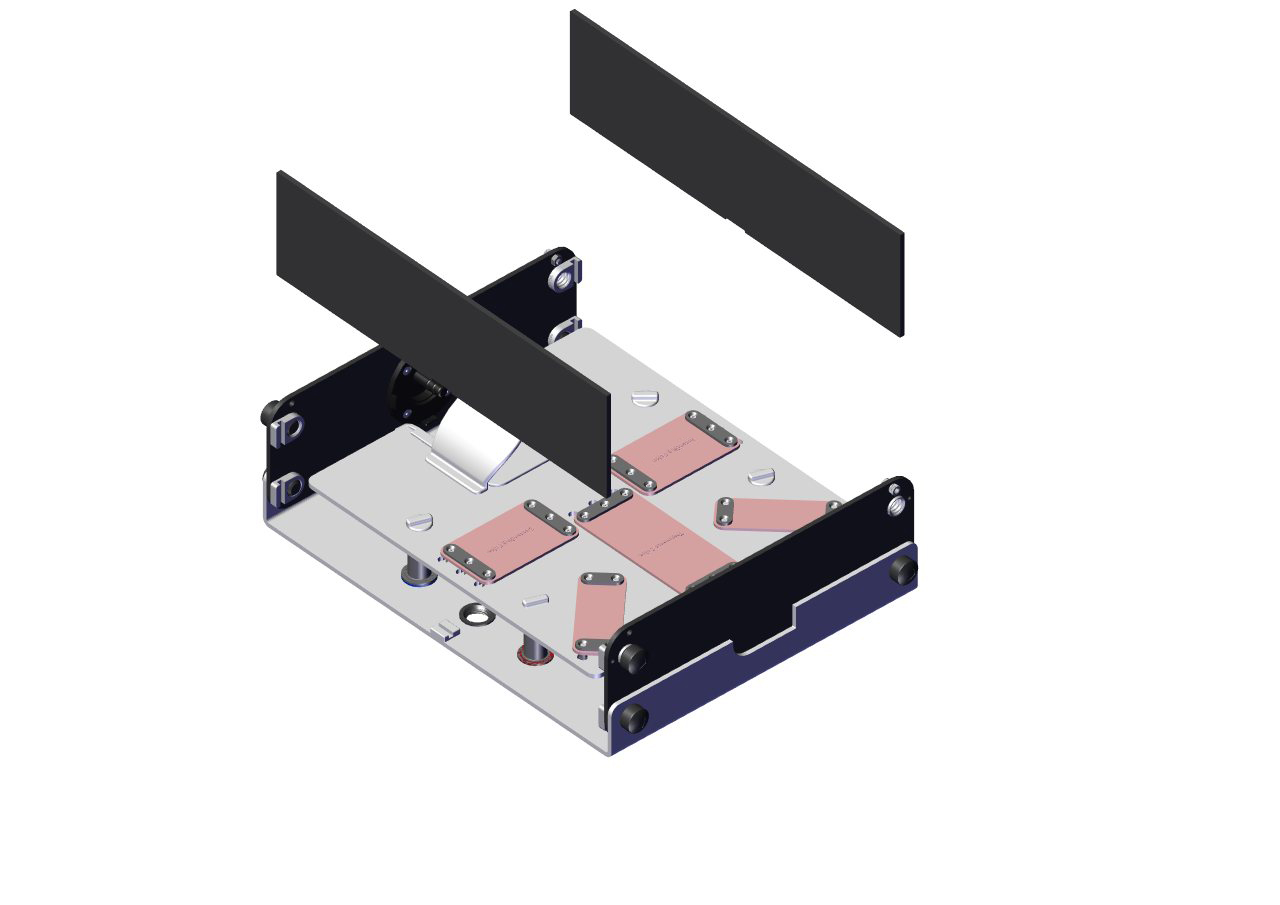

Remove the 2x 00002756 side panels.

Step 28

Locate the pillar thumbnail screws.

Step 29

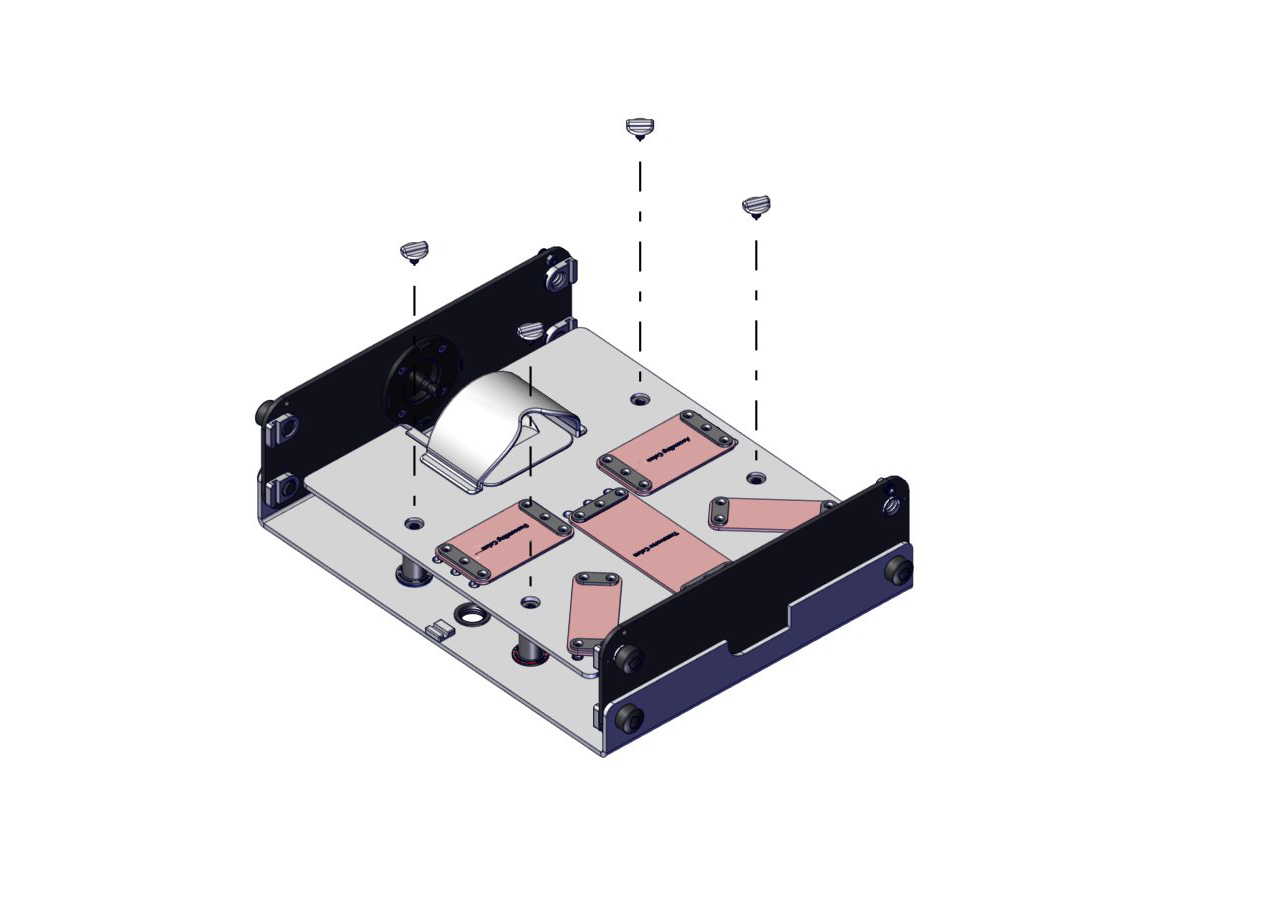

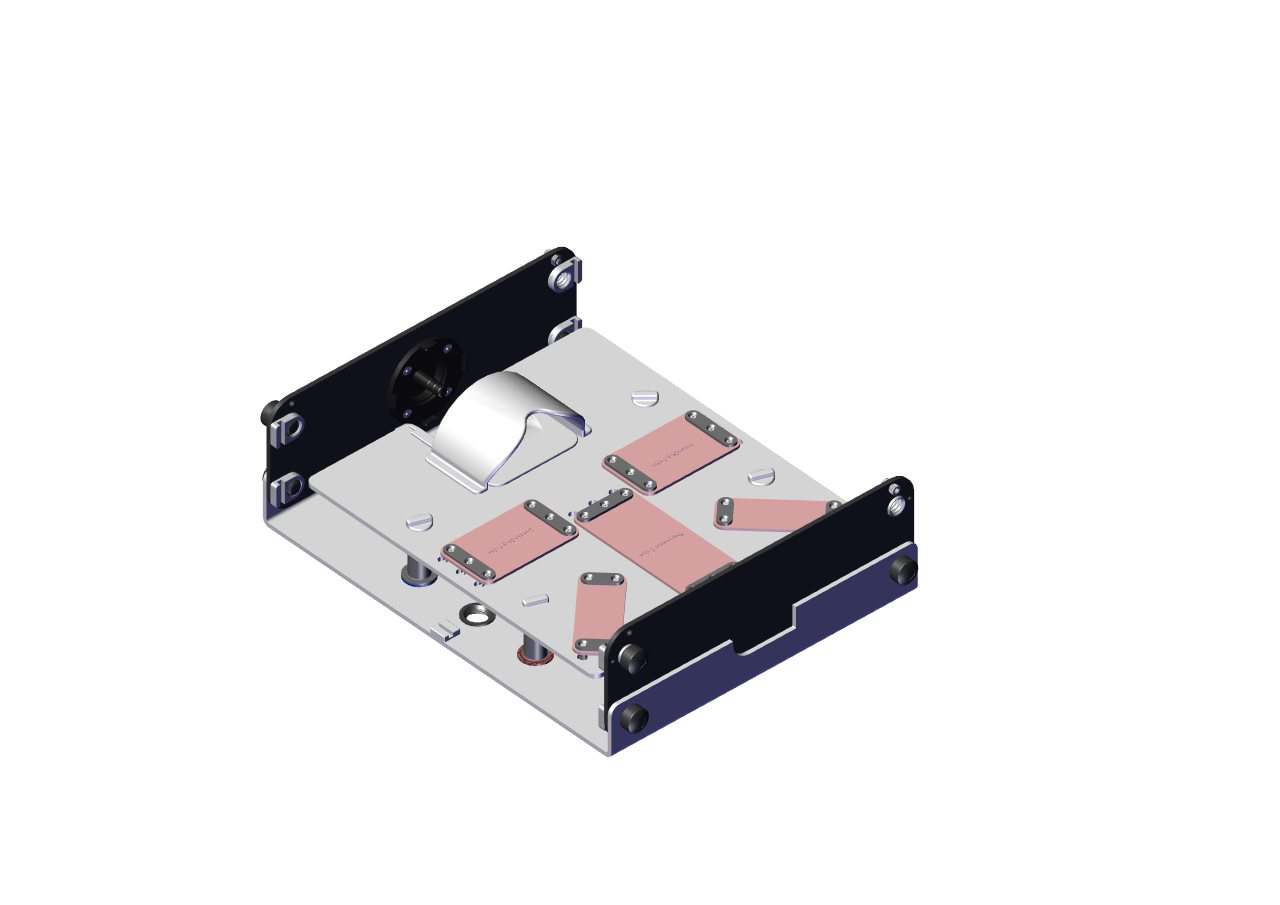

Remove the pillar thumbnail screws.

Step 30

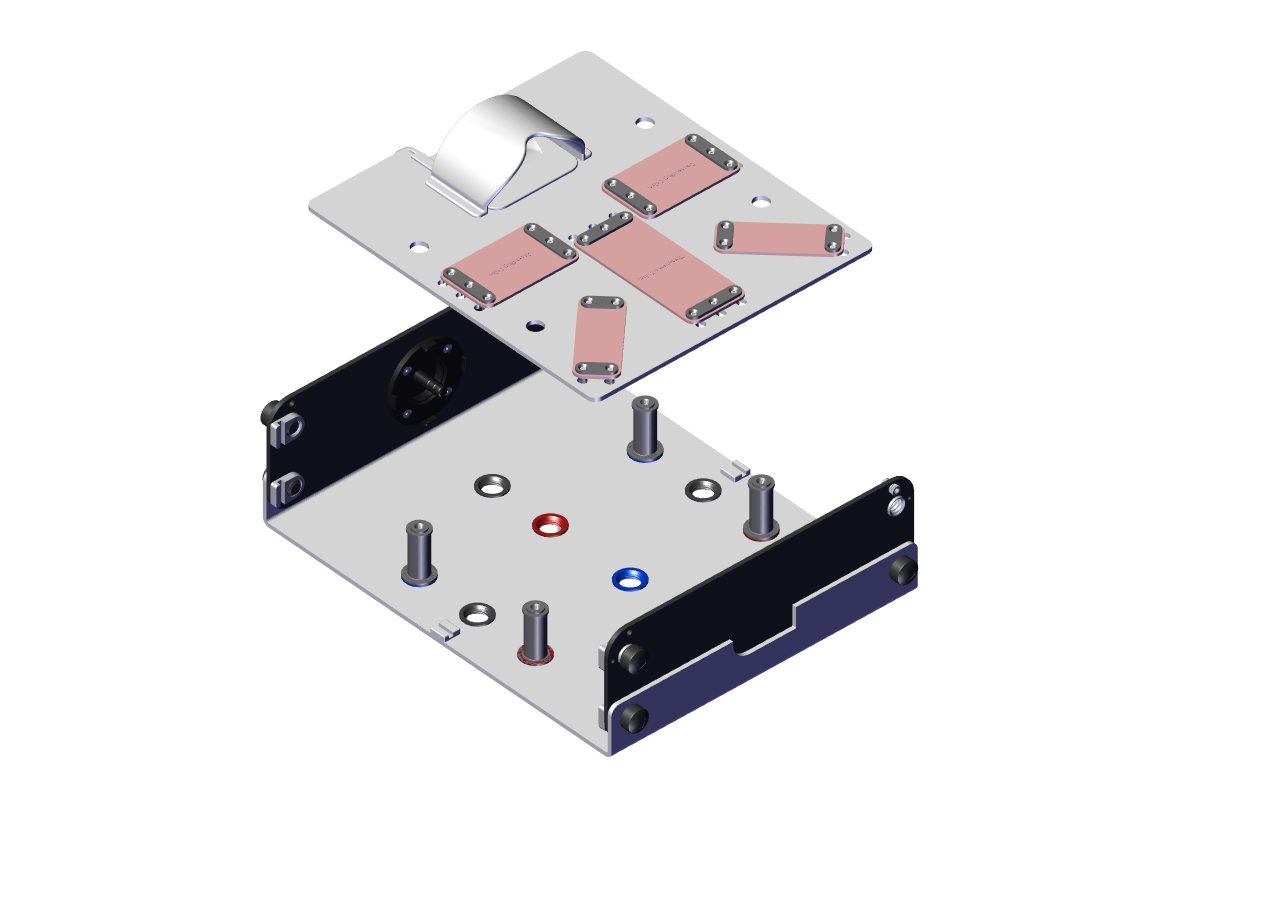

Remove 00002828 Modular tissue mounting plate.

Step 31

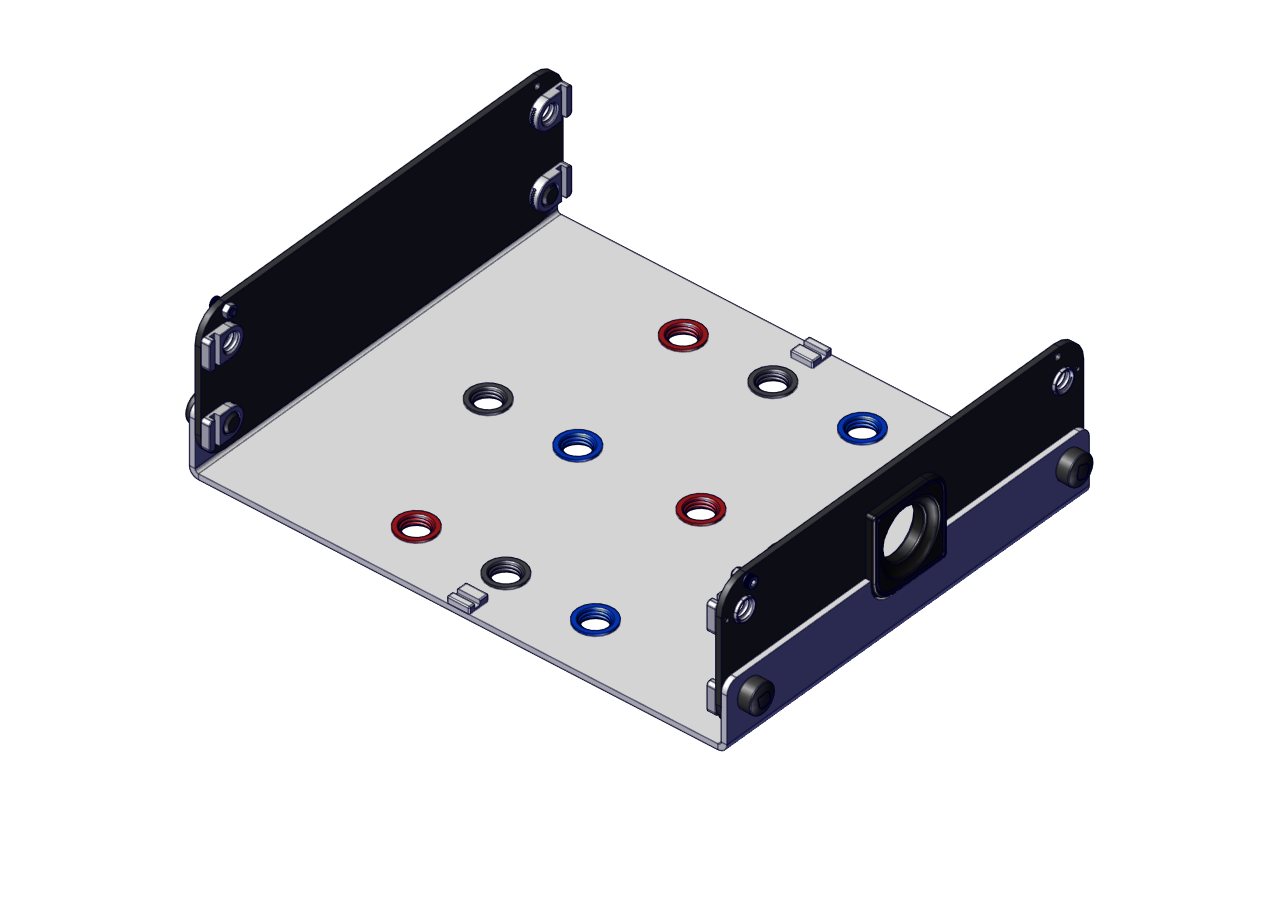

Rotate the EndoAR base so that the blind end with no hole is now at the front of the simulator box.

Step 32

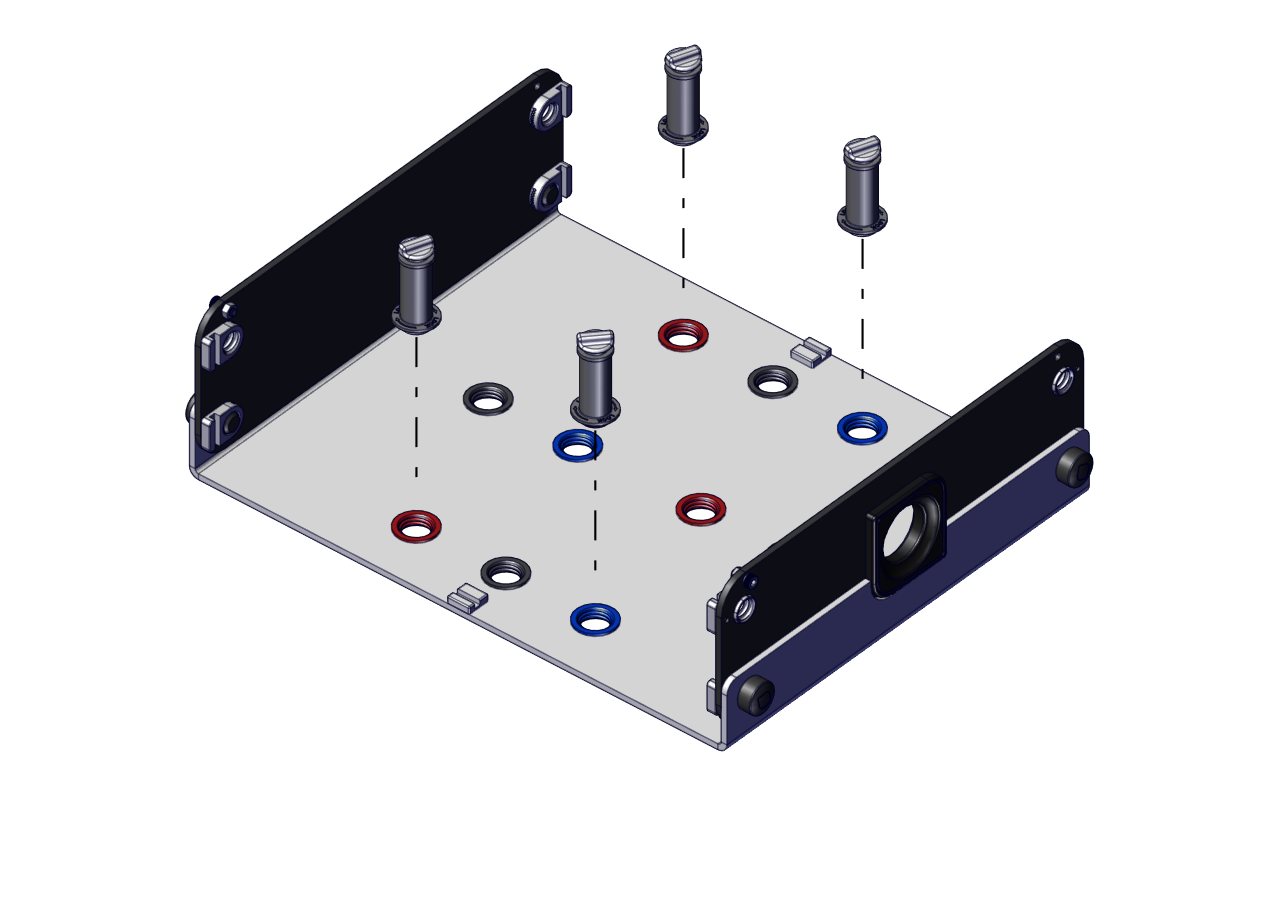

Unscrew and remove 4x 00002890 Pillars.

Step 33

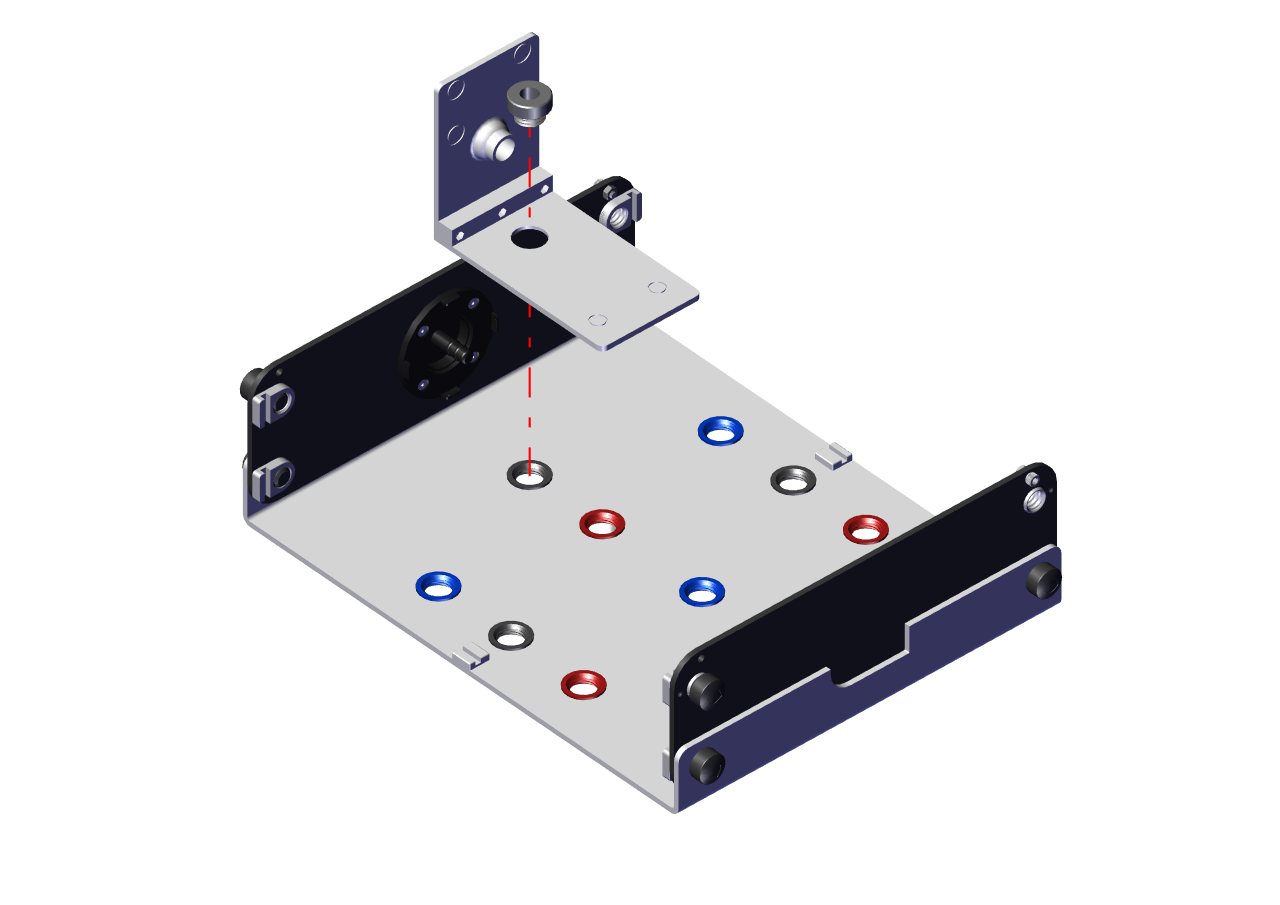

With the blind end of the simulator facing you attach the 00002784 Best Box front bracket and screw to the base of the simulator with 1x 00002650 Male base lock screw.

Step 34

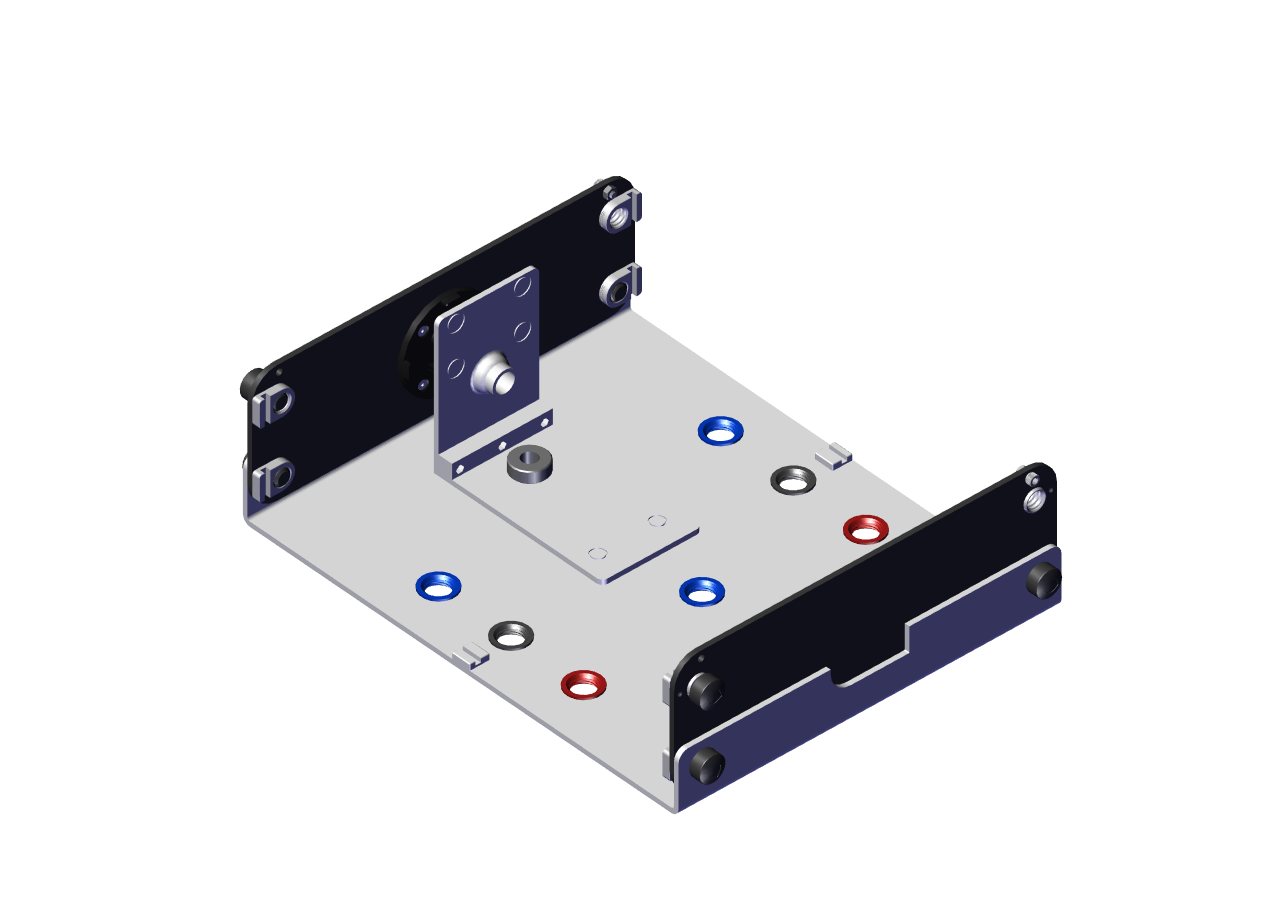

Secure the 00002650 Male base lock screw in place hand-tight.

Step 35

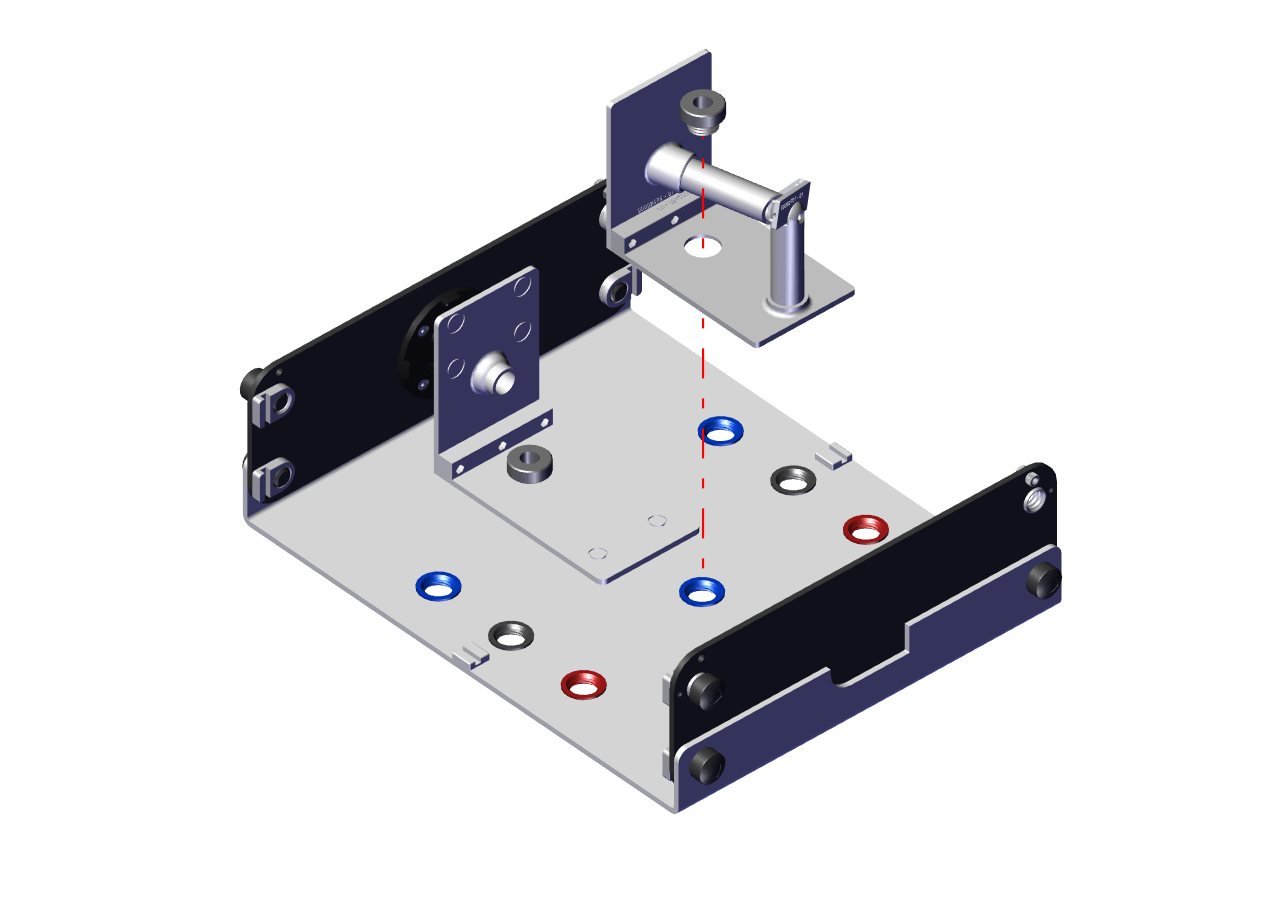

Repeat this process with the 00002695 Best Box rear bracket now ensuring you screw the second 00002650 Male base lock screw into the blue circle in the base of the simulator.

Step 36

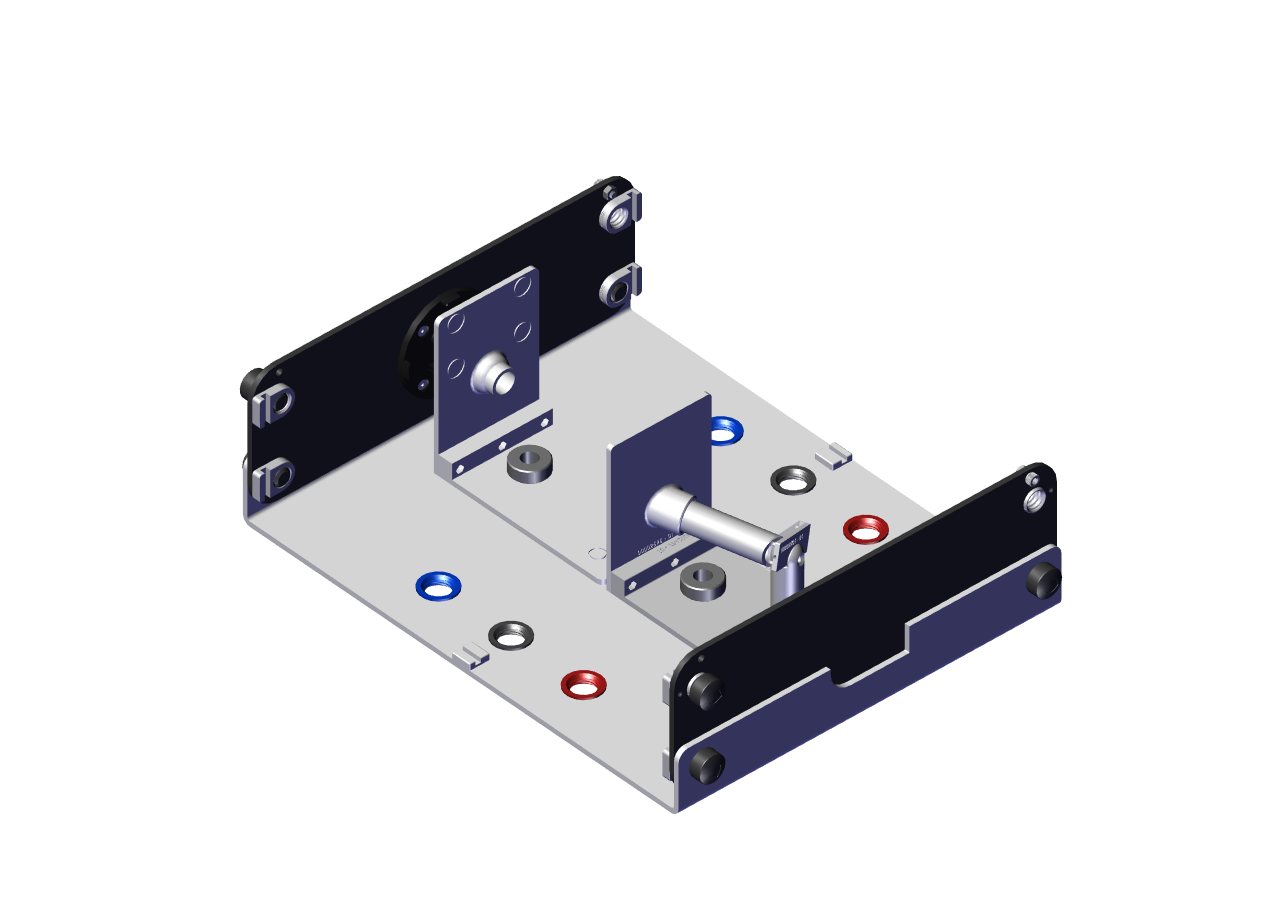

Hand tighten the 00002650 Male base lock screw to secure the 00002695 Best Box rear bracket.

Step 37

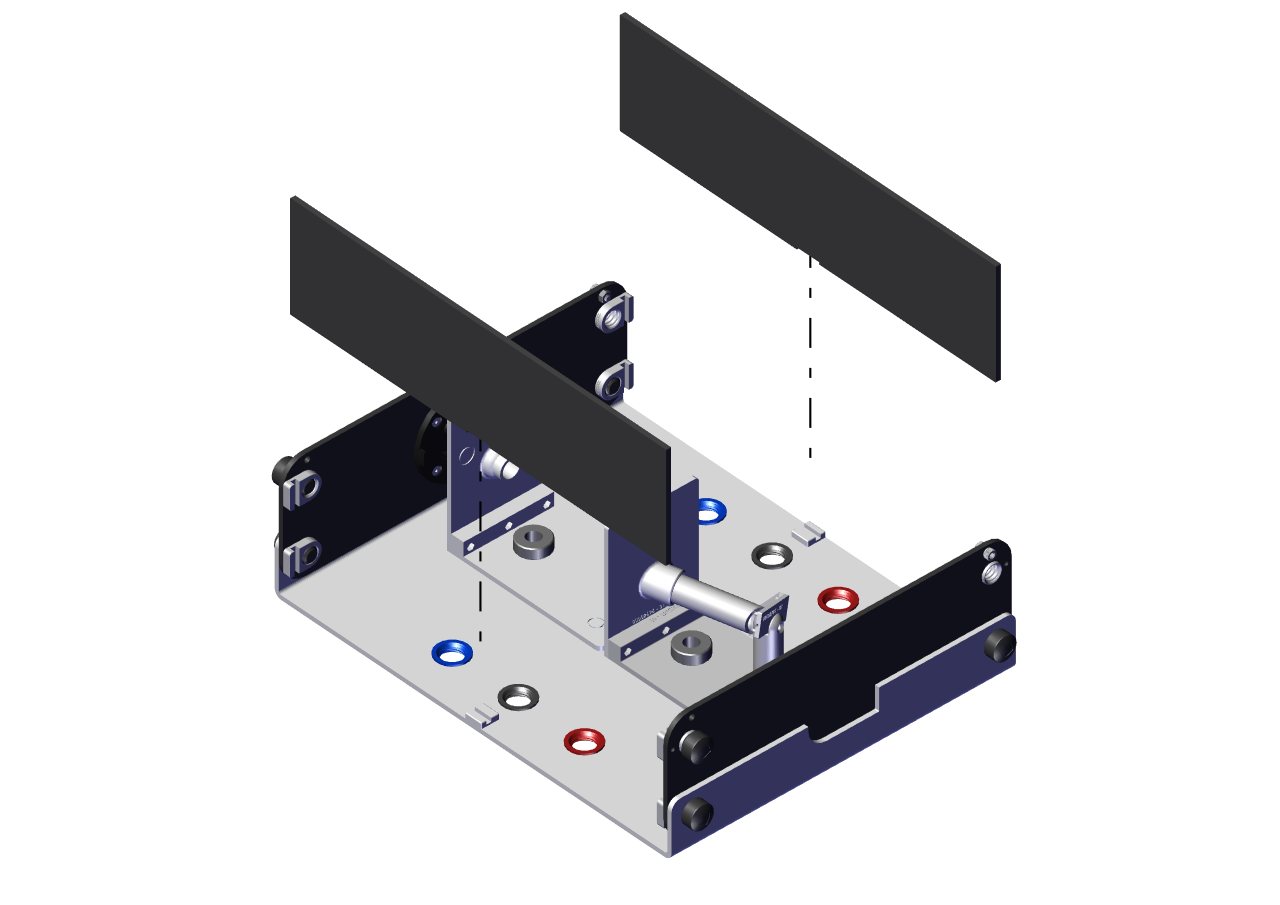

Slot the side 2x 00002756 side panels in place back in place.

Step 38

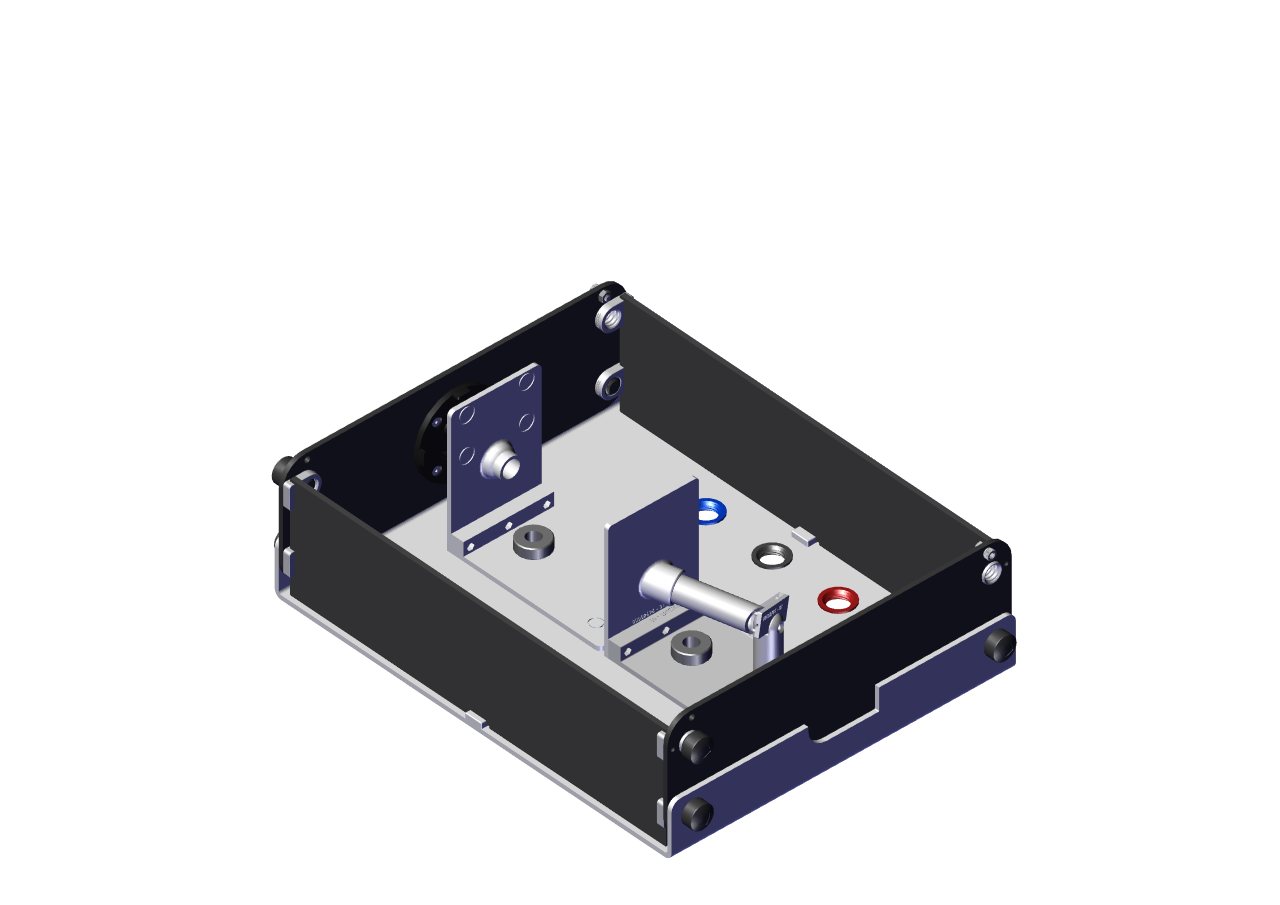

Ensure both side panels are correctly fitted and the simulator enclosure is fully assembled.

Step 39

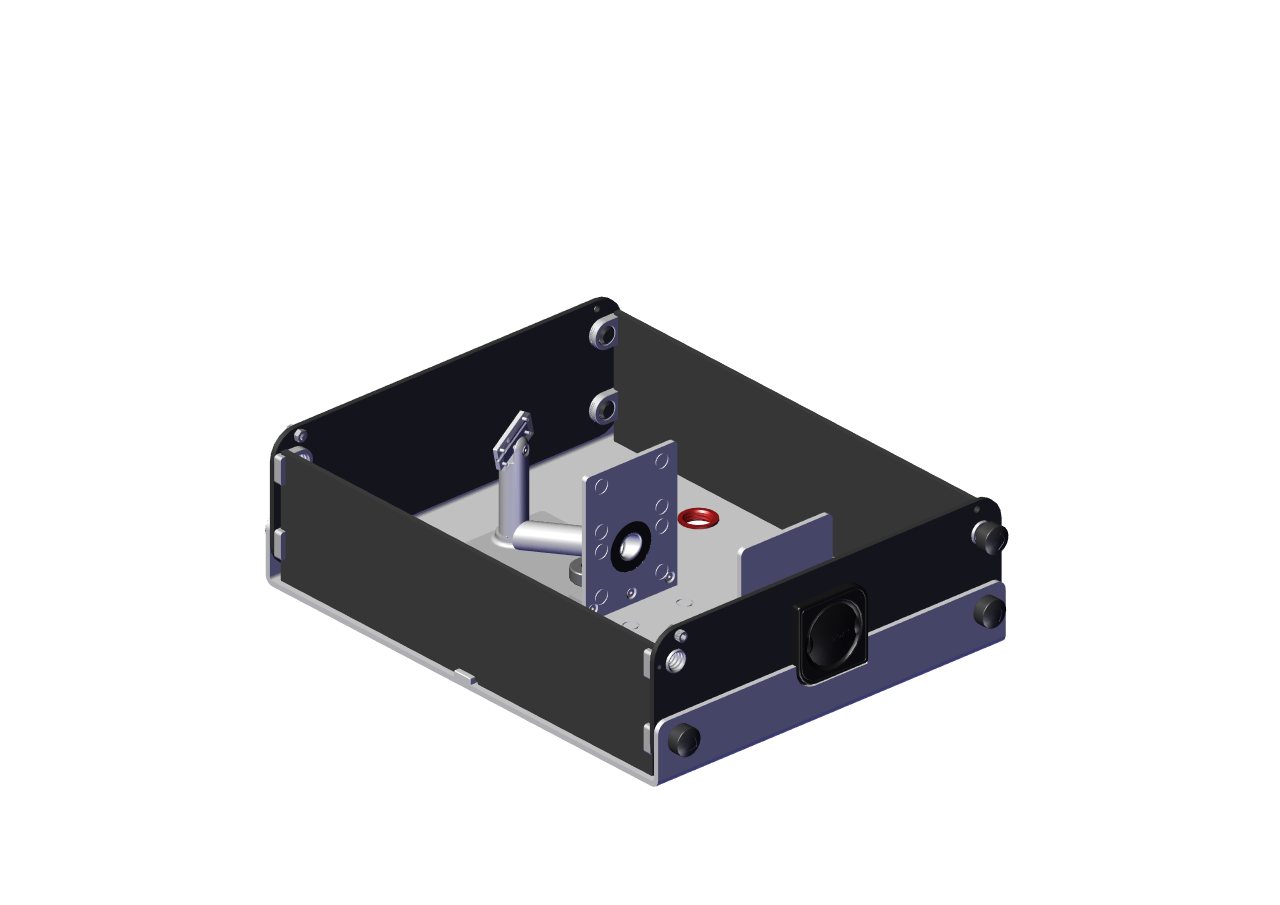

Rotate the simulator so that the front of the EndoAR is facing you.

Step 40

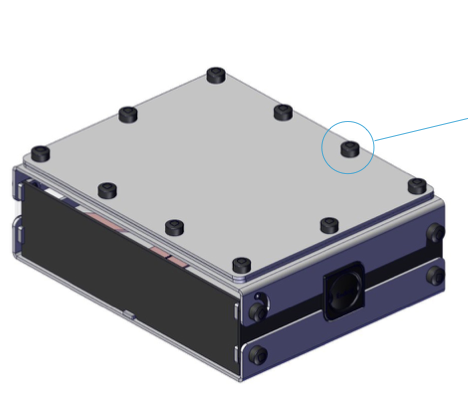

Remove the 10x 00000546 Lock nuts from the top cover.

Remove the skin layer and replace it with the supplied flat white cover. Refit and hand-tighten all 10 lock nuts.

Reattach the top cover as shown in steps 21-23.

Step 41

To use EndoAR with the 00002610 Control unit and endoscope, follow steps 42-45. A laptop is required and is not included.

Step 42

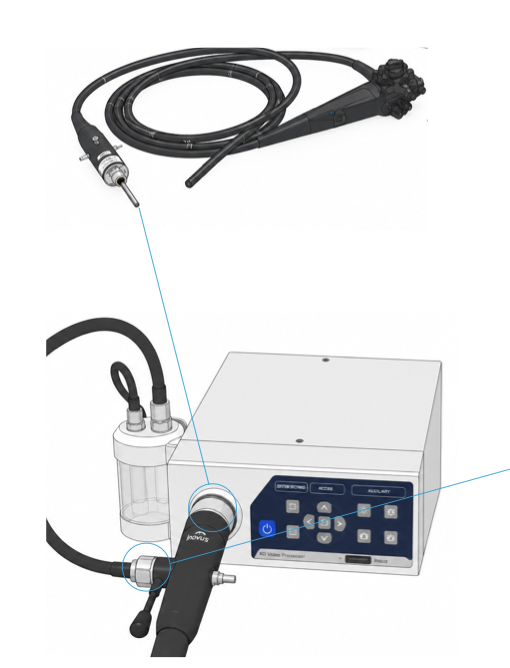

Insert the end of the endoscope into the front of the control unit as shown below.

Fill the bottle with water making sure not to overfill, the bottle has max and min indicators to guide you.

Attach the irrigation tube from the top of the bottle to the socket on the side of the endoscope.

Step 43

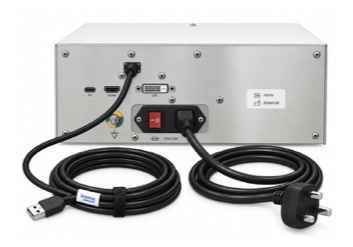

Insert the USB-A cable and power lead into the back of the control unit.

Step 44

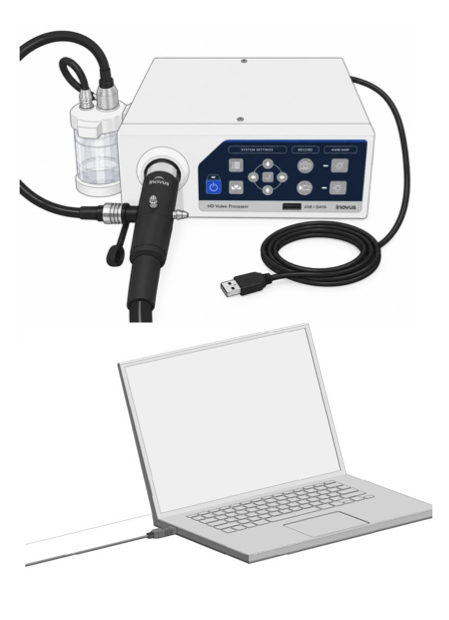

Connect the other end of the USB-A cable to your laptop.

Step 45

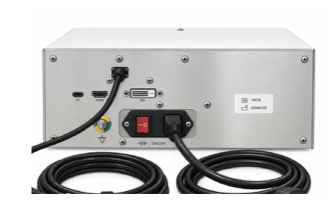

Connect the power cable to an electrical supply, then turn on the control unit using the power switch located on the rear of the unit.
